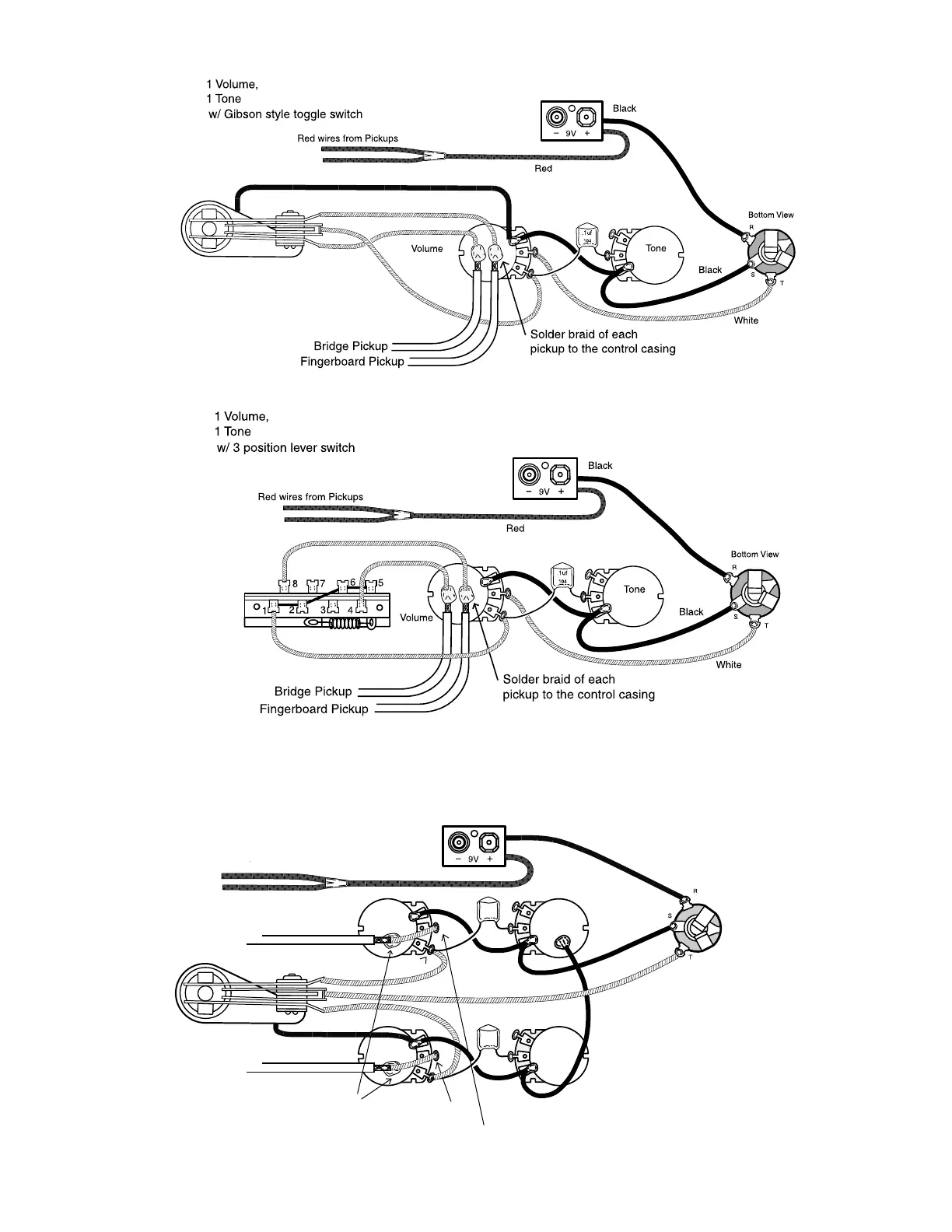

Bottom View
Red
Black
White
Black
Solder Pickup Braids to pot casings
2 Volume (Independent)
2 Tone
w/ Gibson Style Toggle Switch
Red wires from Pickups
Volume
Pickup Output Cable
Solder Fingerboard Pickup "Hot" lead to this lug
.1uf
104
Tone
Volume
Pickup Output Cable
Solder Bridge Pickup "Hot" lead to this lug
.1uf
104
Tone
