EMG SPC - Wiring Diagrams: Two Pickup Configurations; Diagram 4: Two Pickups with Toggle, Individual Volumes, and SPC;RPC; Diagram 5: Two Pickups with Toggle, Volumes, Passive Tone, and SPC;RPC

NOTE REVERSED CONNECTOR
VOLUME
B122rH
VOLUME
B122rH
VOLUME
B122rH
VOLUME
B122rH
TONE
B124rH
NECK PICKUP
BRIDGE PICKUP
BATTERY
NEG (-)
RED
RED
RED
GROUND
BRIDGE P/U
NECK P/U
OUTPUT
- 9V +
NK VOLUME
BR VOLUME
T
R
S
OUTPUT CABLE
NECK PICKUP
BRIDGE PICKUP
BATTERY
NEG (-)
RED
RED
RED
GROUND
BRIDGE P/U
NECK P/U
OUTPUT
- 9V +
NK VOLUME
BR VOLUME
T
R
S
MASTER
TONE
OUTPUT CABLE

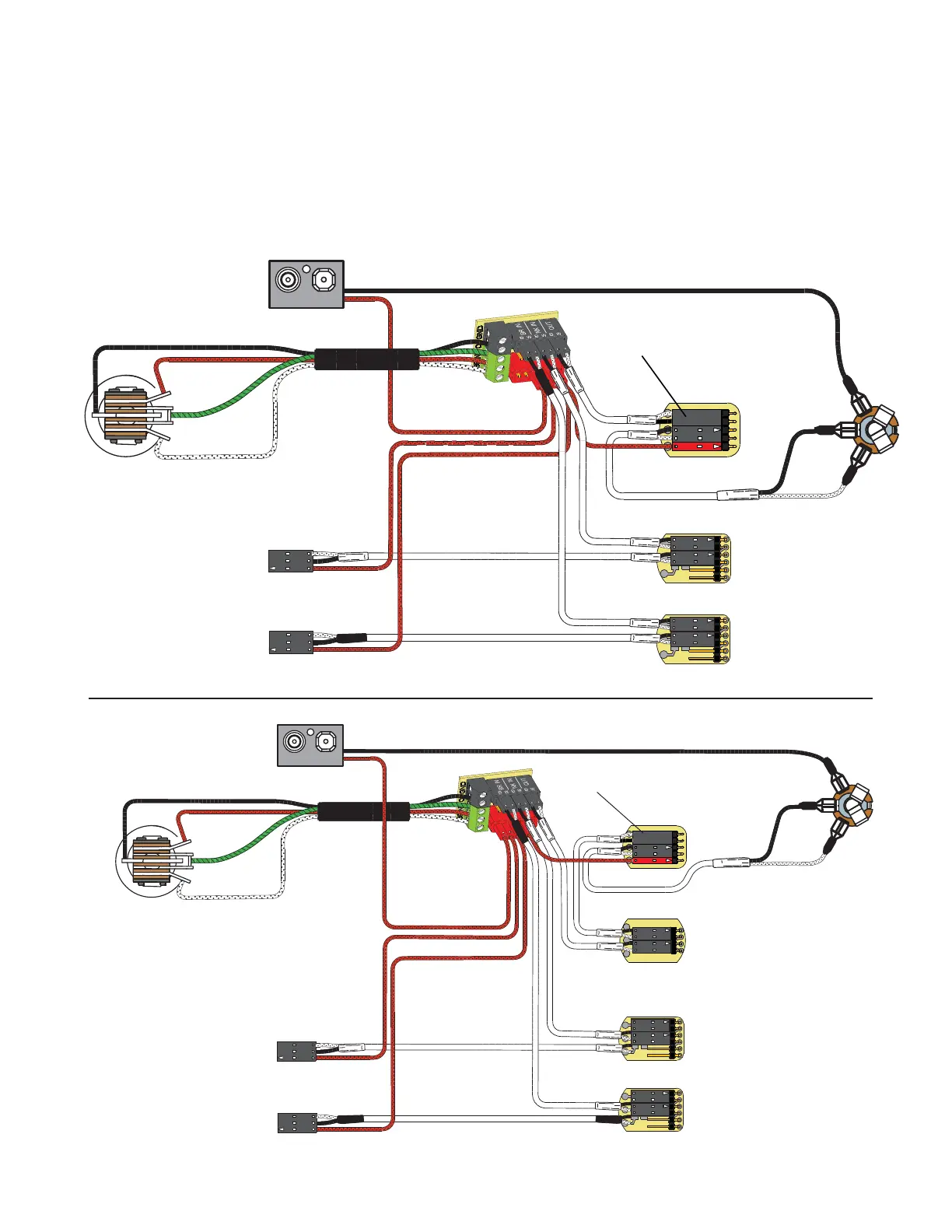

2 Pickup Guitars using a selection switch:
Diagrams #4 and #5 show the pickups connected to the B245 Pickup Buss.
To learn more about the B245 Pickup Buss, be sure to go to the EMG Website:
http://www.emgpickups.com. More diagrams are available at the EMG website.
The SPC or any EMG Active Tone Control is shown following the pickup buss
and then to the output jack. A master volume could easily follow the SPC
before the output jack.
SPC / RPC Page 3
Diagram #4
2 Pickups
Toggle Style Switch
Volume each Pickup (Volumes are independent)
SPC or RPC Control
SPC or RPC
Diagram #5
2 Pickups
Toggle Style Switch
Volume each Pickup (Volumes are independent)
Master Tone (Passive)
SPC or RPC Control
SPC or RPC
NOTE:
REVERSED CONNECTOR
