Side Discharge Condensers
24

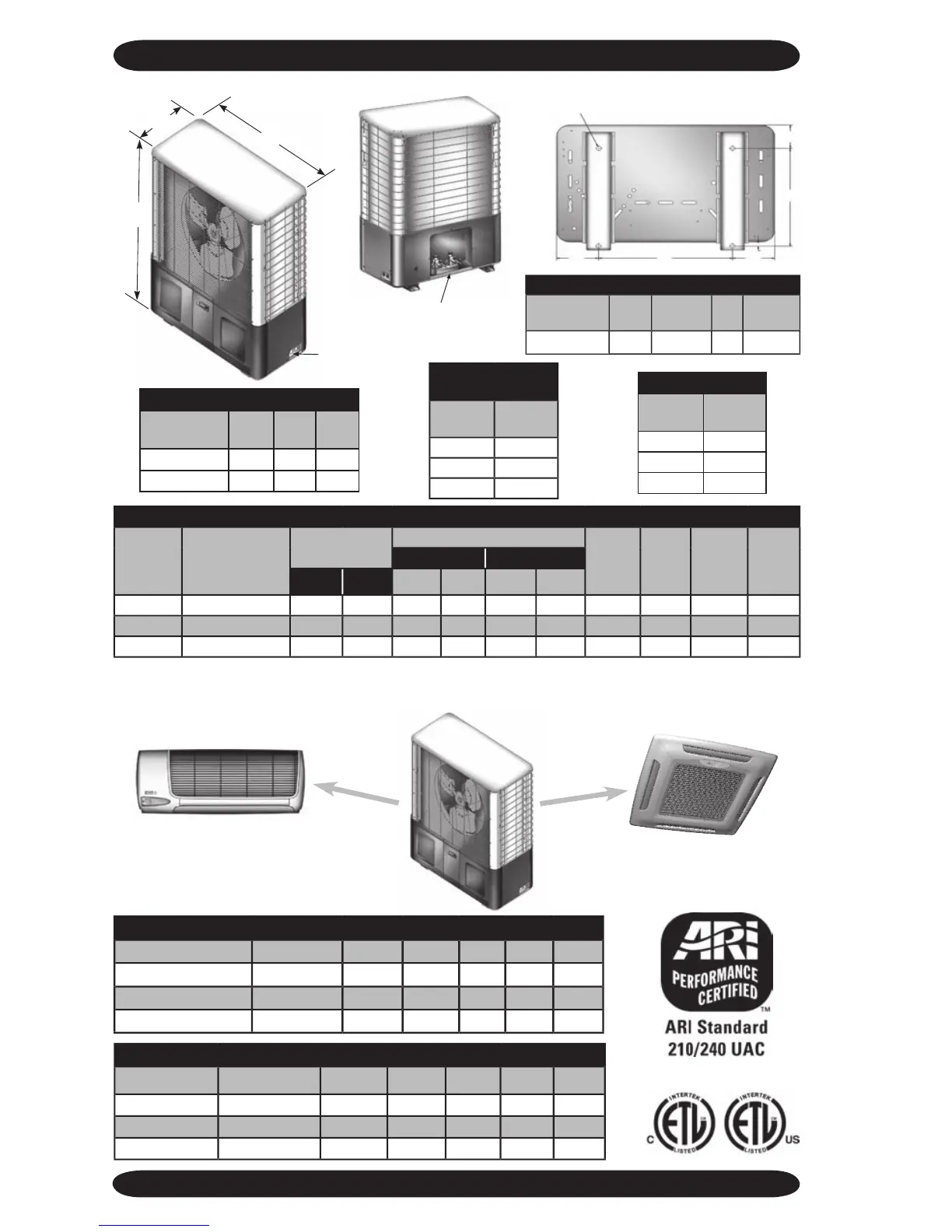

S2C SPECIFICATIONS AND DIMENSIONS
SOUND DATA
Model
Size
dBA
99 64
22 65
92 65
PHYSICAL DIMENSIONS
Model Size
S2C
A B C
99 32" 15" 36"
22, 92 32" 15" 40"
C
A
B
1/2” Diameter Lag Holes
A
A
B
D
C
WLC
CAC
S2C
COOLING
SYSTEMS WITH S2C SIDE DISCHARGE
Cassette Condenser Btuh SEER SHR EER
Ref.
CACA12 S2CA99 18,000 13.0 .81 11.7
R22
CACA12 S2CA22 23,000 13.0 .74 11.8
R22
CACA12 S2CA92 21,000 13.0 .77 11.8
R22
COOLING SYSTEMS WITH S2C SIDE DISCHARGE
Wall Unit (s) Condenser Btuh SEER SHR EER Ref.
WLHA09 S2CA99 18,000 13.0 .80 11.9 R22
WLHA12 S2CA22 23,000 13.0 .72 12.4 R22
WLHA09+WLHA12
S2CA92 21,000 13.0 .72 12.0 R22
NOTE: All EMI products are subject to ongoing development. Design and specifications may change without notice.
SHIPPING
WEIGHT
Model
Size
Lbs.
99
129
22
167
92
157
S2C ELECTRICAL SPECIFICATIONS
Capacity Volts/HZ/Phase
Fan Mtr.
Compressor
Total
AMPS
MCA
HACR
BRKR
Min.
Volt
Circuit #1 Circuit #2
AMPS HP RLA LRA RLA LRA
9900 208-230/60/1 0.8 0.125 3.5 19 3.5 19 7.8 8.7 15 197
9200 208-230/60/1 0.8 0.125 3.5 19 4.5 21 8.8 10.0 15 197
2200 208-230/60/1 0.8 0.125 4.5 21 4.5 21 9.8 11.0 15 197
Circuit Designators: 9 = 9,000 Btuh • 2 = 12,000 Btuh
ex. - Model 9200 consists of one 9,000 Btuh compressor and one 12,000 Btuh compressor
Always refer to the rating plate for Minimum Circuit Ampacity on all multiple compressor units
Electrical
connections
Easy access interconnects
on back of unit
MOUNTING DIMENSIONS
Model
Size S2C
A B C D
99, 92, 22
4 ⅝” 22
11
/
16
” 3” 12
7
/
16
”
