Side Discharge Condensers
23

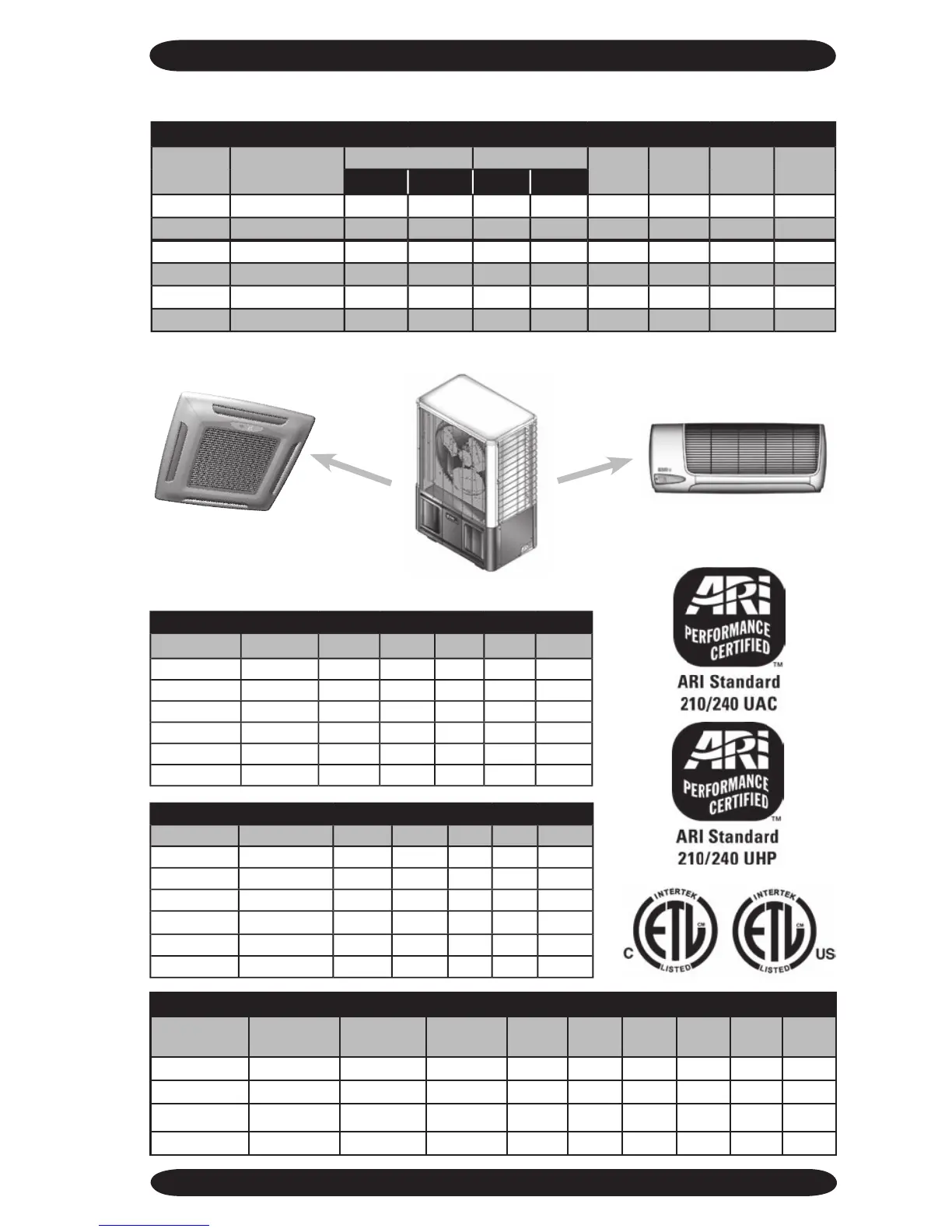

S1C/S1H SPECIFICATIONS AND DIMENSIONS
NOTE: All EMI products are subject to ongoing development. Design and specifications may
change without notice.
System Performance Data: Matched With EMI AmericaSeries Indoor Units
HEAT PUMPS SYSTEM OPTIONS WITH WALL UNITS
Condenser Wall Unit
Cooling
Btuh
Heating
Btuh
SEER HSPF SHR EER COP Ref.
S1HA9 WLHA09 9,000 8,200 13.0 7.7 .75 12.0 3.6 R22
S1HA2 WLHA12 12,000 10,200 13.0 7.7 .73 12.1 3.4 R22
S1HA8 WLHA24 18,000 16,400 13.0 7.7 .73 12.1 3.8 R22
S1HA4 WLHA24 23,000 20,600 13.0 7.7 .71 11.9 3.5 R22
S1C/S1H Single Zone
CAC
WLC/WLH
COOLING SYSTEMS WITH CASSETTE UNITS
Condenser Cassette Btuh SEER SHR EER
Ref.
S1CA9 CACA12 9,000 13.0 .79 11.7
R22
S1CA2 CACA12 12,000 13.0 .72 12.2
R22
S1CA8 CACA24 18,000 13.0 .76 12.3
R22
S1CA4 CACA24 23.000 13.0 .67 11.8
R22
S1CA3 CACA36 30,000 13.5 .82 12.5
R22
S1CA6 CACA36 36,000 13.0 .74 12.6
R22
COOLING SYSTEMS WITH WALL UNITS
Condenser Wall Unit Btuh SEER SHR EER
Ref.
S1CA9 WLHA09 9,000 13.0 .79 11.8
R22
S1CA2 WLHA12 12,000 14.0 .74 12.9
R22
S1CA8 WLHA24 18,000 14.0 .78 13.0
R22
S1CA4 WLHA24 24,000 13.0 .70 12.5
R22
S1CA3 WLCA30 30,000 13.0 .67 12.4
R22
S1CA6 WLCA36 33,600 13.0 .65 11.8
R22
S1H ELECTRICAL SPECIFICATIONS
Model # Volts/HZ/PH
Fan Motor Compressor
Total
AMPS
Min
Volt
M.C.A.
HACR
BRKR
AMPS HP RLA LRA
S1H9A 115/60/1 1.4 0.125 6.6 39.2 8.0 104 9.7 15
S1H2A 115/60/1 1.4 0.125 8.6 48.3 10.0 104 12.2 20
S1H9D 208/230/60/1 0.8 0.125 3.4 23.0 4.2 197 5.1 15
S1H2D 208/230/60/1 0.8 0.125 4.3 27.0 5.1 197 6.2 15
S1H8D 208/230/60/1 0.8 0.125 5.4 36.0 6.2 197 7.6 15
S1H4D 208/230/60/1 0.8 0.125 8.0 53.5 8.8 197 10.8 15
