30
APPENDIX 1
How to Charge a Lithium E-Bike
Most of the time, a lithium e-bike share the same look as a regular Gel
Lead-Acid one. However, you will notice that the lithium battery is smaller
in size and lighter in weight. The lithium charger is also dierent from
ordinary Gel Lead-Acid chargers.

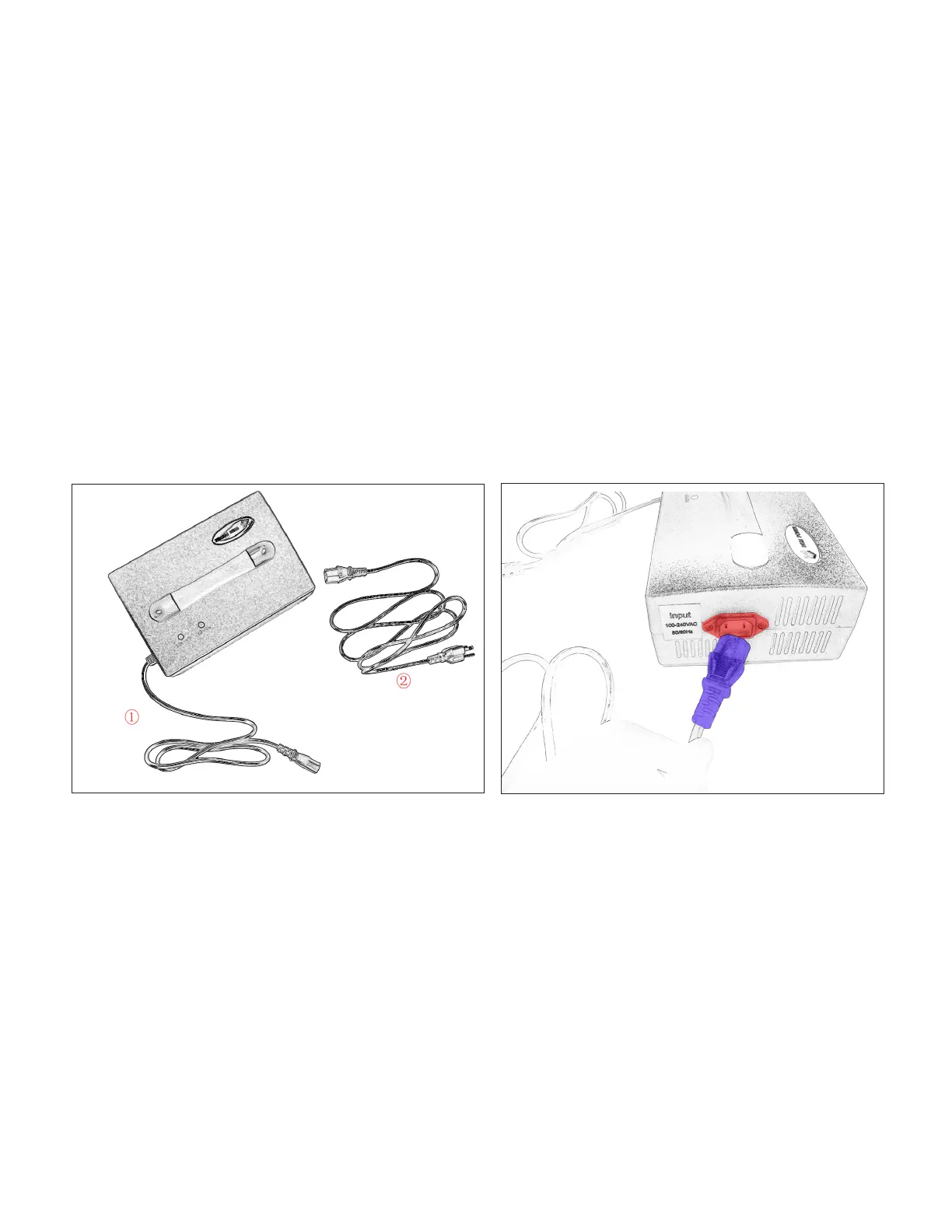

As shown in the follow picture, a typical lithium charger may consist of 2
parts:
1. Main body with a cable that connects to the charging port of the bike.
2. A separate cable that connects the regular 110V wall outlet with the
charger.
Before using the charger, you need to plug the individual cable into the
charger. To charge the battery, plug the charger into the charging port of
the bike. And then, plug the charger into a 110V outlet (refer to page 25).
72V / 4.5A Lithium Charger
Plug the Separate Cable into the Charger
Particularly, for some bikes with double lithium battery packs. The use
and charging of the e-bike can be quite dierent from Gel Lead-Acid
ones. The Zone S with 72v60Ah lithium battery will be used as an
exam ple in the following explanation.
To Next Page
