Secondary Circuit Breaker Location

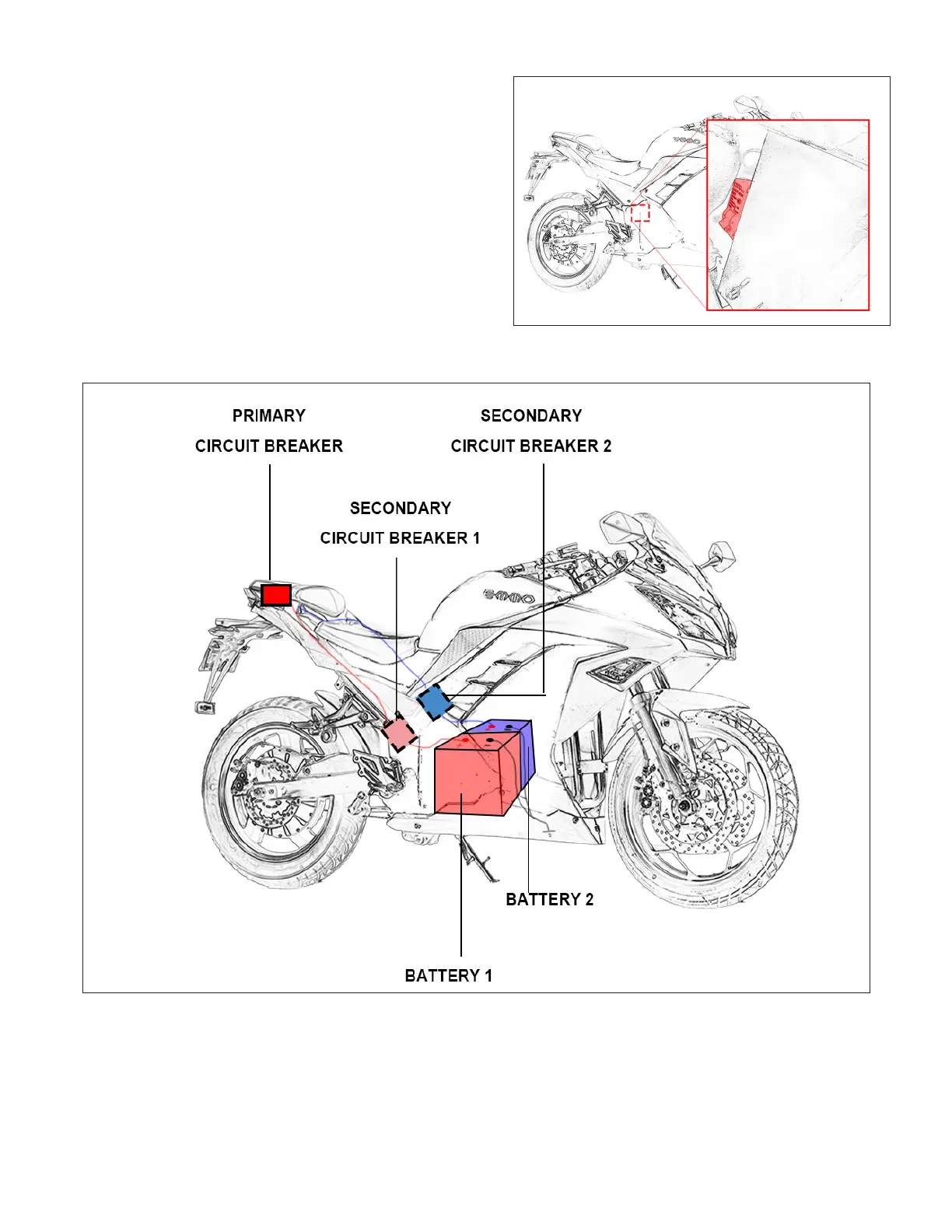

Battery Wiring Diagram (Zone S with 72V/60Ah Lithium Battery)
The 72v60ah lithium battery pack
consists of two 72v30ah lithium
batteries.
In addition to the main circuit breaker
under the passenger seat, there are
another 2 secondary circuit breakers
on both sides of the bike to control
the individual lithium batteries.
Through the secondary circuit breakers, the user is able to switch
between two individual lithium batteries and decide which one to use/
charge.
