Thermostat Placement
The placement of the thermostat (transmitter unit) signicantly aects
its functioning. Choose a location where members of the family spend
most of their time, preferably on the inside wall where air circulates
freely, with no direct sunlight. Do not place the thermostat in the vicinity
of heat sources (such as TV sets, radiators, fridges), or close to a door.
Failure to comply with these recommendations will prevent proper control
over room temperature.

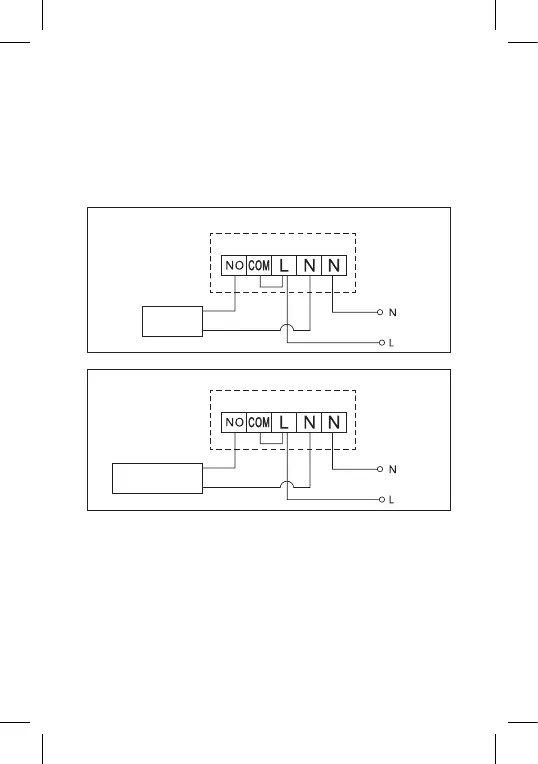

Switching Unit Wiring Diagram
Pump/Motorised Valve Connection Diagram
Pump/
valve
Floor Heating Connection Diagram
Connected
device
To Next Page
