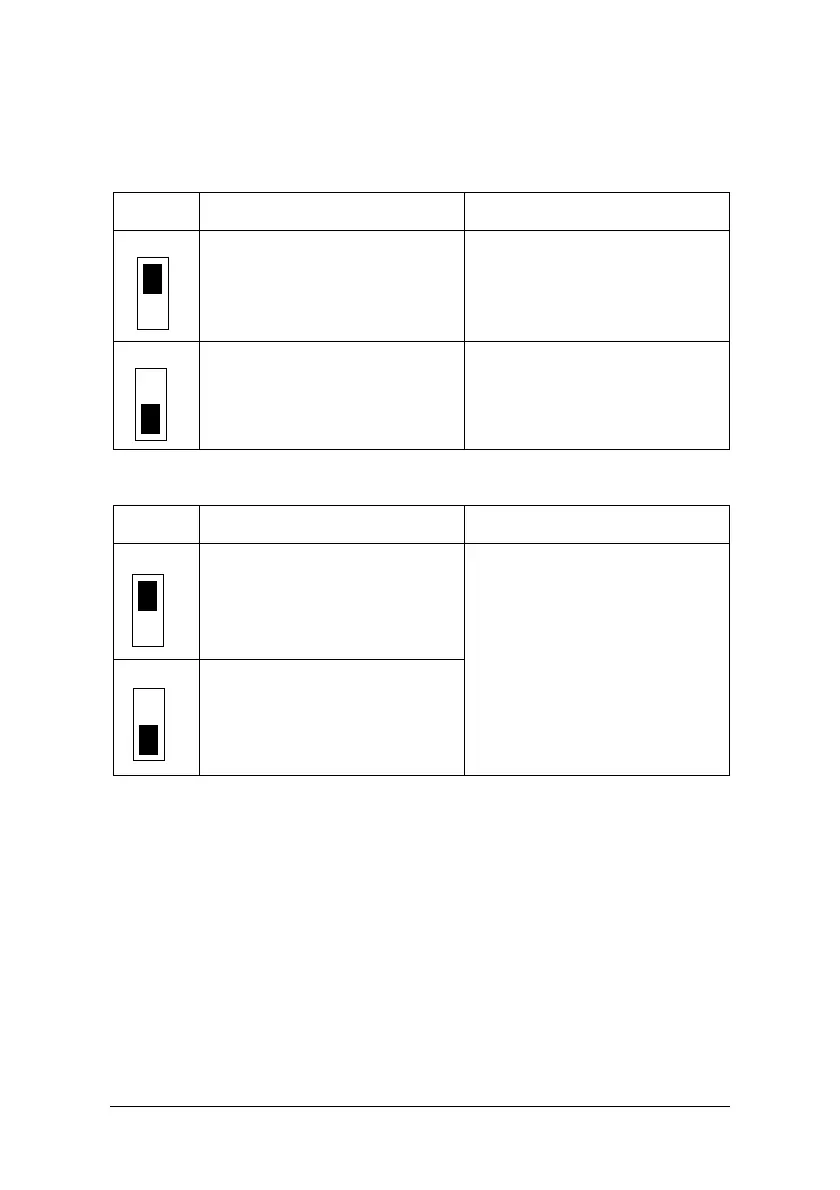

SW function description
Ta bl e 2 0
SW1 Type of external signal Remarks
NPN input (SINK)
PNP input (SOURCE) Factory default
Ta bl e 2 1
SW2 Type of external signal Remarks
0–10 VDC analogue signal
Effective when parameter
[212]=2 (analogue input signal
from TM2)
4–20 mA analogue signal
I
V
I
V
