Emotron VSC Series User Manual

Emotron AB 01-3990-11r3 Notas sobre el cableado 93

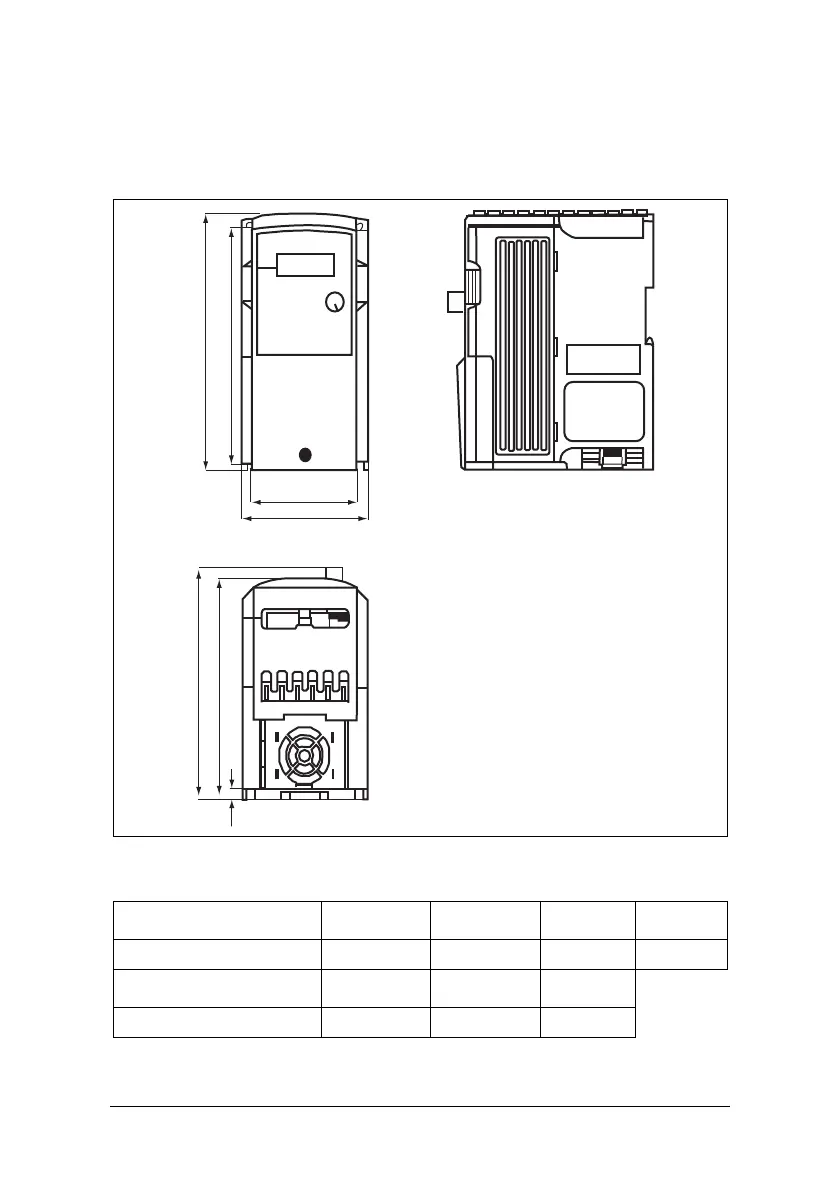

Dimensiones
Bastidor 2: Trifásico VSC 48-009
Figura 18
Longitud, mm/pulgadas A B C D
Frame 2 187.1/7.36 170.5/6.71 114.6/4.51 128/5.04
Longitud, mm/pulgadas E F G
Frame 2 148/5.83 142.1/5.59 7/0.28
A
B
C
D
F
E
G
L1 L2 L3
T1 T2 T3
PE P PEPEPE
