5x50
Metal Screw
Expanding Tube
5x50
Wood Screw
Expanding Tube
Metal Screw
5x50
Expanding tube
Hook
A
B
200
367
C

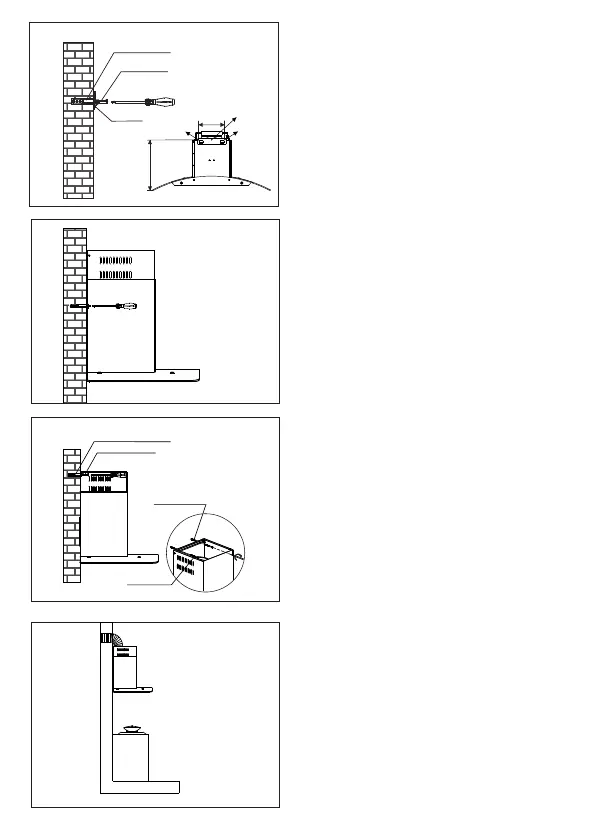

Step 6:
Hang the entire hood onto the hook,
ensure the hood is level and vertical.
Step 7:
1. Draw the inner duct cover up to the
suitable height, mark on the wall two
keyhole of the outer duct cover bracket
with pen .
2. Put down the inner duct cover gently,
drill the keyholes in 75-85 mm depth on
the horizontal level using 10mm drill.
3. Press the expanding tube provided into
the holes.
4. Matching the inner duct cover with the
holes, tighten the inner duct cover with
two 5x50 metal screw provided.
Step 8:
Extend the air outlet of the exhaust pipe
out-of-door. Try to make the bend of the
exhaust pipe is no more than 120°.
Step5:
A ccording to the size of hook key holes.
10mm in diameter and 75~85mm in depth.
Press the 3 expanding tube provided into
the holes. Fix the hook using the 5x50
metal screw provided.
Then insert three M5X50 screws to A and B
And C holes to fix the hook on the wall
Drill 3 holes in level in the wall with
steadily.
