EMPHASER EA480 User Manual

 
 
2. CONNECTIONS & CONTROLS

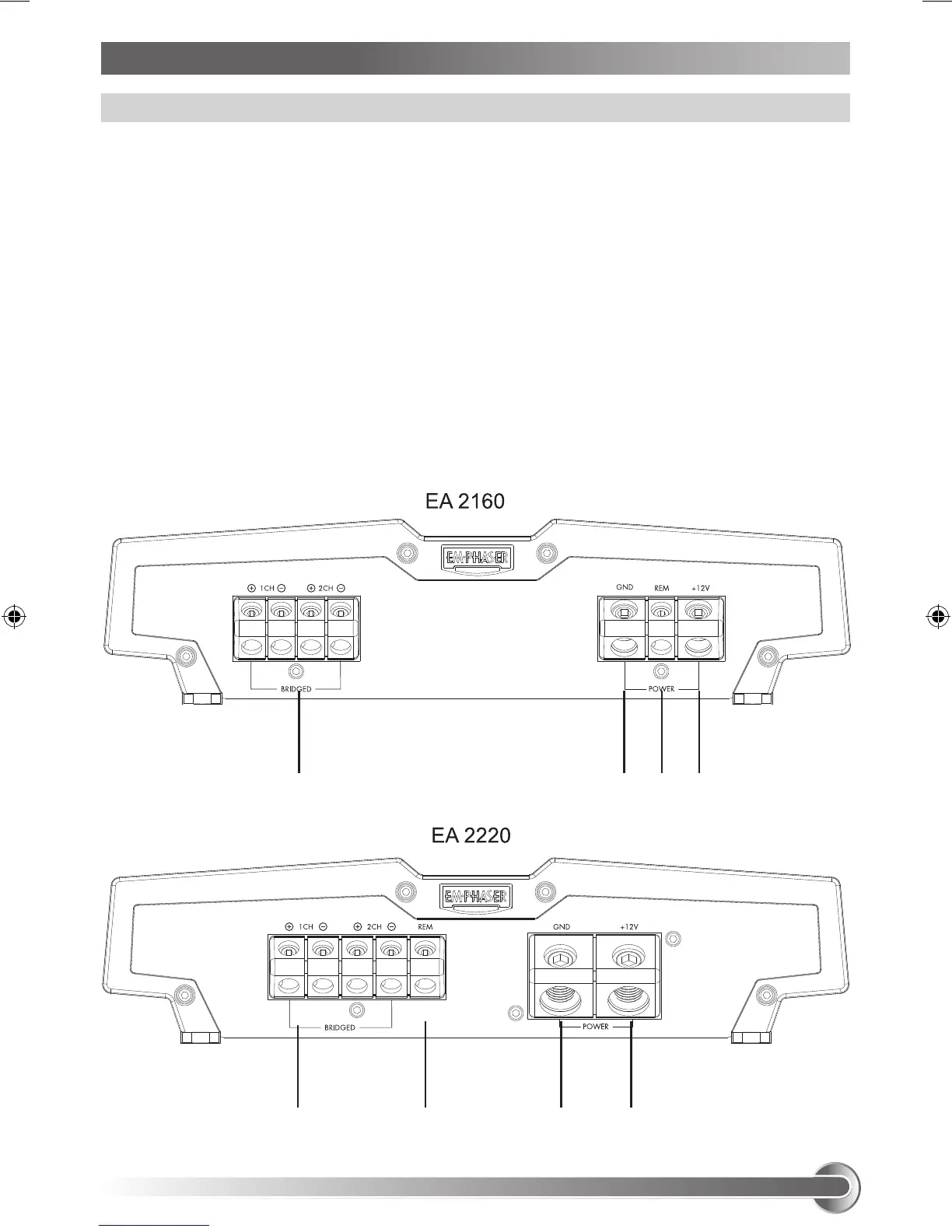

2.1 REAR PANEL EA2160/EA2220NEL EA2160/EA2220EA2160/EA2220
9 “OUTPUT TERMINALS”
Loudspeaker output terminal to connect the loudspeakers.
10 “GND” POWER INPUT TERMINAL
Moulded direct power input terminals to connect the amplifier to the negative or ground
wire of the vehicle
11 “REMOTE” INPUT TERMINAL
Terminal to connect the amplifier to the automatic (remote) turn-on / turn-off lead of the
head unit
12 “+12V” POWER INPUT TERMINAL
Moulded direct power input terminals to connect the amplifier to the positive +12V power
wire connected to the car batterycar battery
bnbmbl9
bnblbm9
