User Information
i Propuct DESCRIPTION
The Epix VT™ is a dual channel TENS device with twelve (12)
program options. All the operation modes produce the unique
Bi-Sourced” waveform to deliver energy efficiently through the
cutaneous tissues.
The Epix VT TENS system components and accessories may
include:
¢ Epix VT TENS Device
¢ User’s Manual
* Electrodes
¢ Lead Wires
* Batteries (either rechargeable or alkaline)
¢ 110V/60Hz Battery Charger (if rechargeable batteries are used)

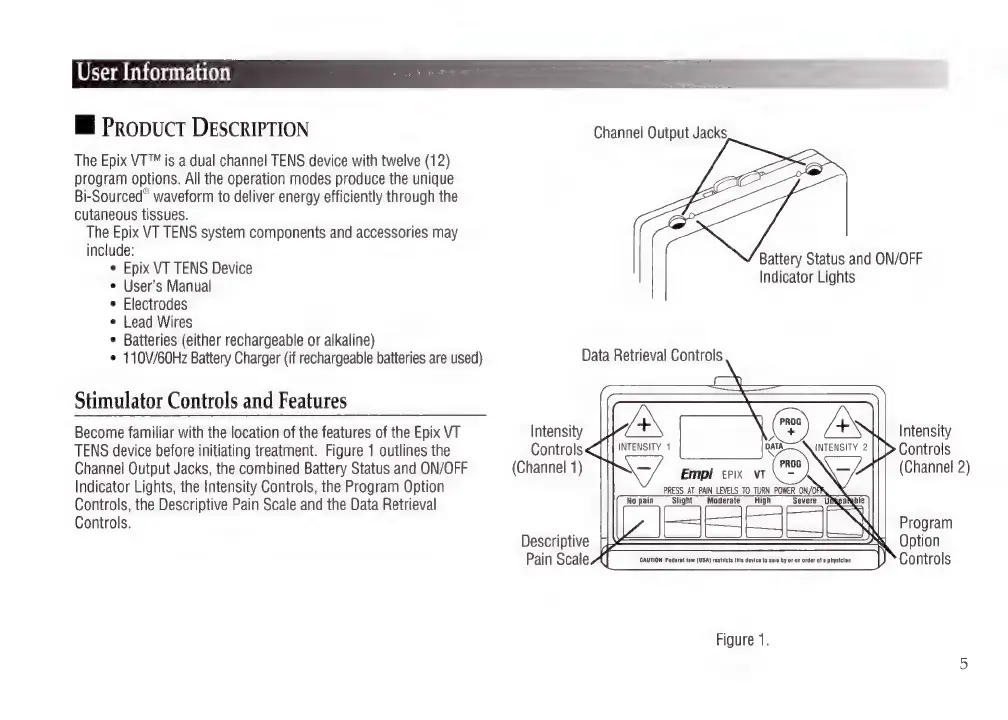

Stimulator Controls and Features
Become familiar with the location of the features of the Epix VT
TENS device before initiating treatment. Figure 1 outlines the
Channel Output Jacks, the combined Battery Status and ON/OFF
Indicator Lights, the Intensity Controls, the Program Option
Controls, the Descriptive Pain Scale and the Data Retrieval
Controls.
Battery Status and ON/OFF
Indicator Lights
Data Retrieval Controls
Intensity
Controls
(Channel 1)
ey eke ne)
Descriptive | I ai N
SO —— a
Intensity
Controls
(Channel 2)
Program
Option
Controls
Figure 1.
