Technical Information

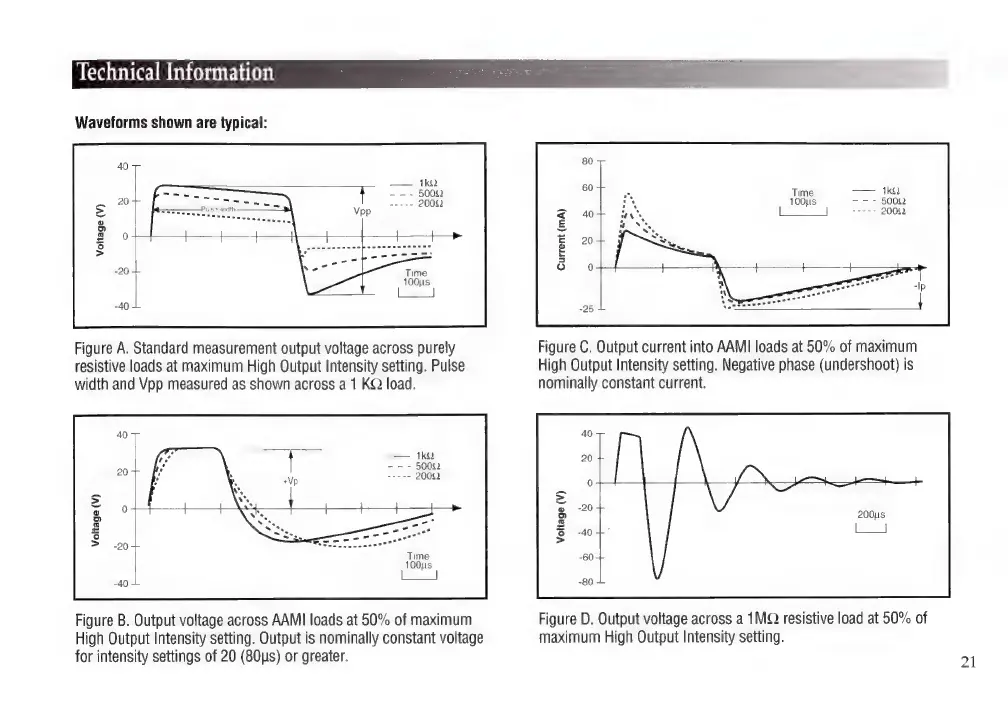

Waveforms shown are typical:
Voltage (V)
Current (mA)
Figure A. Standard measurement output voltage across purely Figure C. Output current into AAMI loads at 50% of maximum
resistive loads at maximum High Output Intensity setting. Pulse High Output Intensity setting. Negative phase (undershoot) is
width and Vpp measured as shown across a 1 KQ load. nominally constant current.
200\1s
Lo
= =
o o
? g
id 3
cS >
Figure B. Output voltage across AAMI loads at 50% of maximum Figure D. Output voltage across a 1MQ resistive load at 50% of
High Output Intensity setting. Output is nominally constant voltage maximum High Output Intensity setting.
for intensity settings of 20 (80us) or greater. yn
