Cleaning
The blower wheel will collect lint and could require cleaning once
a year. If the air output decreases or the noise level increases,
it indicates a dirty wheel. Complete removal of the wheel and
scrubbing it with a brush under flowing water is recommended.
Oiling
The blower motor has an oil hole located on each end of the motor.
Use #20 motor oil only. It is best to oil the motor several times
during the heating season using 2 or 3 drops each time. If the motor
fails to start and hums, it could be a tight bearing due to lack of
oil. This may be corrected by pouring kerosene in the oil holes,
allowing to stand for a few hours and then oiling properly.

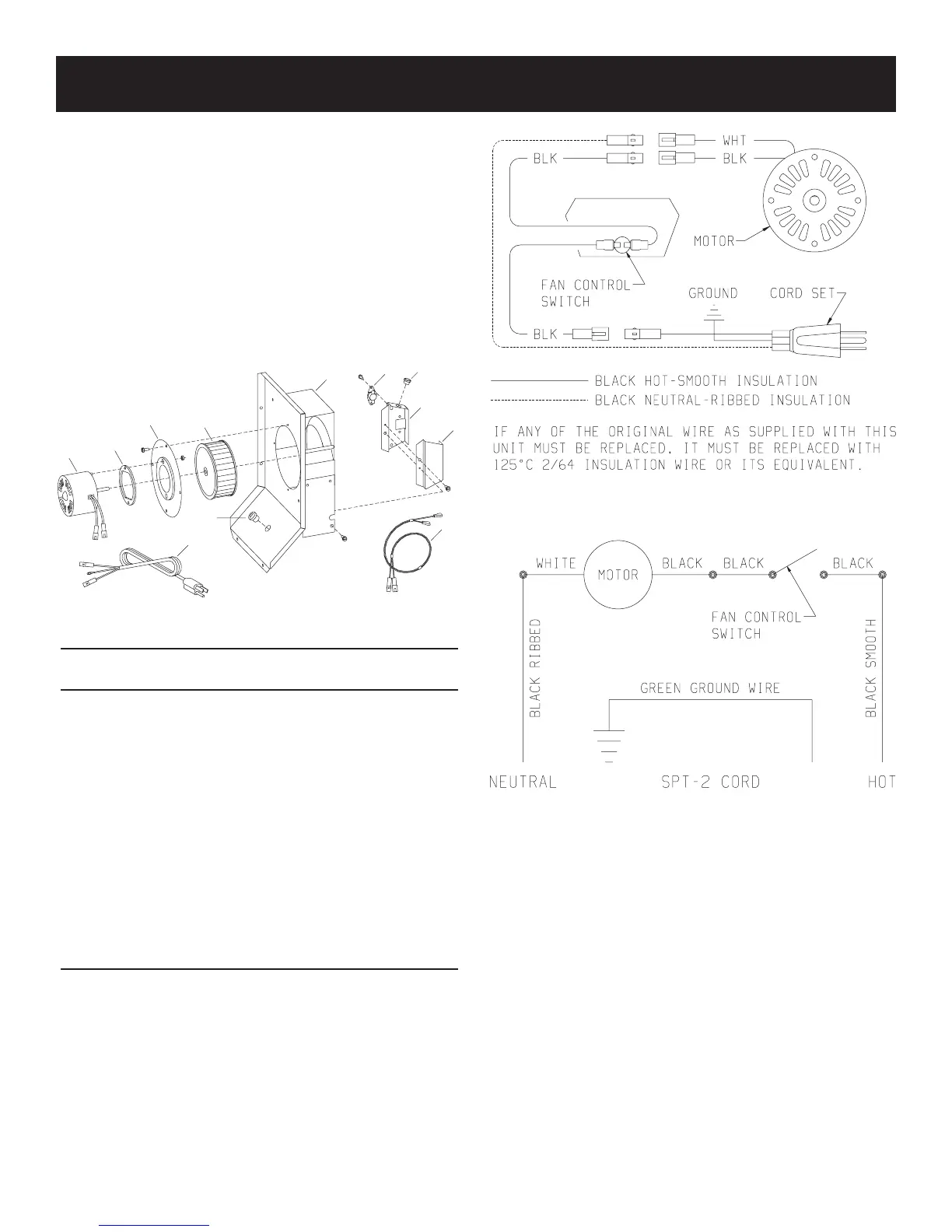

PARTS LIST
Index
No.
Part
No.
Description
1 R-2090 Motor
2 632016 Motor Cushion
3 RH-036 Motor Support
4 642030 Blower Wheel
5 RH-710 Blower Housing Assembly
6 9120106 Fan Control Switch
7 872087 Heyco Bushing
8 DV-806 Switch Box
9 DV-807 Switch Box Cover
10 R-2091 Wire Assembly 19" (483mm)
11 8720161 Heyco Bushing
12 R-2099 Cord Set 72" (1.83m)
OPTIONAL BLOWER INSTALLATION INSTRUCTIONS (continued)
