Interrupted Galvanic Set-up (970 only)
‘Form’: Three different pulse shapes are available: Rectangular),
Triangular and Trapezoidal. A full description of these waveforms is
available in the technical specification section of this manual.
‘Width’: The pulse width may be set from 1ms to 1s for all waveforms with
additional narrower pulses for rectangular only.
‘Rate’: Pulse rates of 2, 5, 10, 20 and 30 per minute are available.
‘Polarity’: Positive going, negative going, or auto-reverse polarities are
available (auto-reverse occurs halfway through the selected treatment
time).

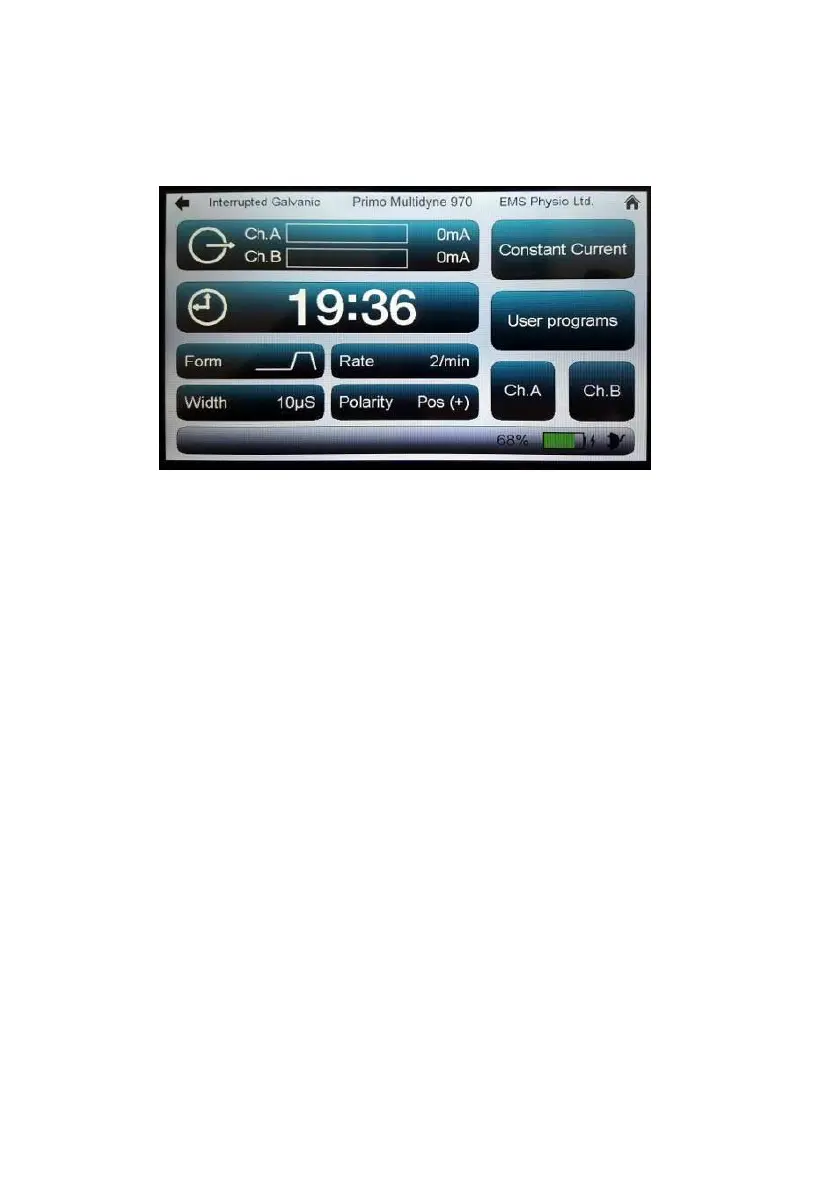

When running, the output state is represented by a graphic in the lower
centre of the ‘Setup’ screen or to the right of the channel strip in the
‘Output’ screen if selected.
