Multiple RCC Channel Allocation Example

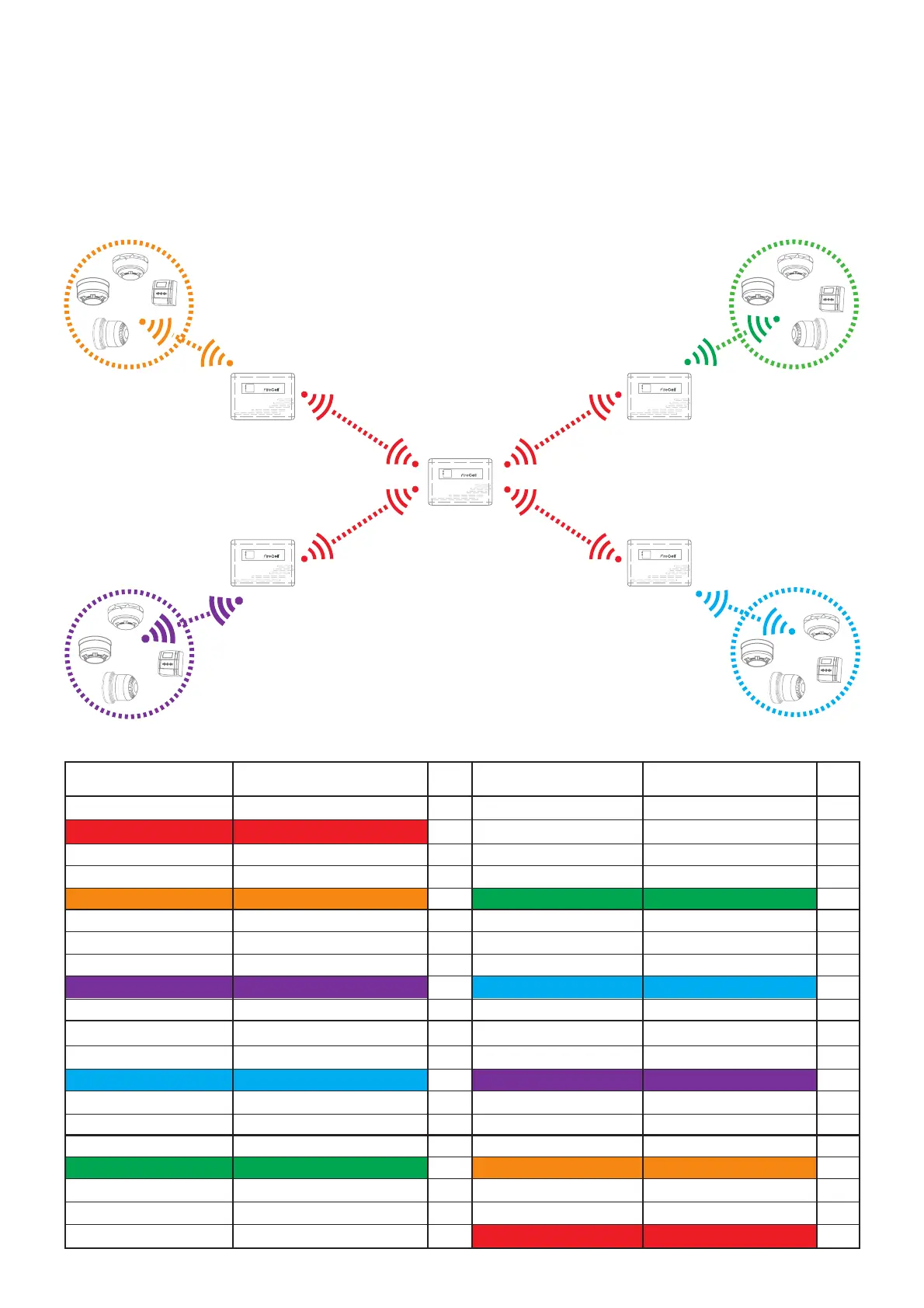

The example below shows a multiple RCC installation using dierent frequency channels. The channels
used in the example are colour coded and also shown in the table below. Having a system setup in this
way ensures the two device channels used for each RCC are taken from the low and from the high band
and are not duplicated. The system setup in this way also shows that the Radio Hub to RCC channels are
selected from the low and high bands are also not duplicated across the system.
Low Bands High Bands
Low Band 1
High Band 1
Ch1: 868.047 MHz Ch17: 868.749 MHz
Ch5: 868.147 MHz Ch21: 868.849 MHz
Ch9: 868.248 MHz Ch25: 868.949 MHz
Ch13: 868.348 MHz Ch29: 869.049 MHz
Low Band 2
High Band 2
Ch2: 868.072 MHz Ch18: 868.774 MHz
Ch6: 868.173 MHz Ch22: 868.874 MHz
Ch10: 868.273 MHz Ch26: 868.974 MHz
Ch14: 868.373 MHz Ch30: 869.075 MHz
Low Band 3
High Band 3
Ch3: 868.097 MHz Ch19: 868.799 MHz
Ch7: 868.198 MHz Ch23: 868.899 MHz
Ch11: 868.298 MHz Ch27: 869.000 MHz
Ch15: 868.398 MHz Ch31: 869.100 MHz
Low Band 4
High Band 4
Ch4: 868.122 MHz Ch20: 868.824 MHz
Ch8: 868.223 MHz Ch24: 868.924 MHz
Ch12: 868.323 MHz Ch28: 869.024 MHz
Ch16: 868.423 MHz Ch32: 869.125 MHz
Low Bands High Bands
Low Band 1
High Band 1
Ch1: 868.047 MHz Ch17: 868.749 MHz
Ch5: 868.147 MHz Ch21: 868.849 MHz
Ch9: 868.248 MHz Ch25: 868.949 MHz
Ch13: 868.348 MHz Ch29: 869.049 MHz
Low Band 2
High Band 2
Ch2: 868.072 MHz Ch18: 868.774 MHz
Ch6: 868.173 MHz Ch22: 868.874 MHz
Ch10: 868.273 MHz Ch26: 868.974 MHz
Ch14: 868.373 MHz Ch30: 869.075 MHz
Low Band 3
High Band 3
Ch3: 868.097 MHz Ch19: 868.799 MHz
Ch7: 868.198 MHz Ch23: 868.899 MHz
Ch11: 868.298 MHz Ch27: 869.000 MHz
Ch15: 868.398 MHz Ch31: 869.100 MHz
Low Band 4
High Band 4
Ch4: 868.122 MHz Ch20: 868.824 MHz
Ch8: 868.223 MHz Ch24: 868.924 MHz
Ch12: 868.323 MHz Ch28: 869.024 MHz
Ch16: 868.423 MHz Ch32: 869.125 MHz
Radio Hub to all RCCs
Radio Hub to all RCCs
RCC1 to Devices
RCC1 to Devices
RCC2 to Devices
RCC2 to Devices
RCC3 to Devices
RCC3 to Devices
RCC4 to Devices
RCC4 to Devices
©2019 EMS Ltd. All rights reserved. MK98 Iss17 05/04/2019 AJM
