EMSI EMS-5000 - Connect Leads to EMS Unit; Adjust Contraction and Relaxation; Adjust Frequency and Ramp

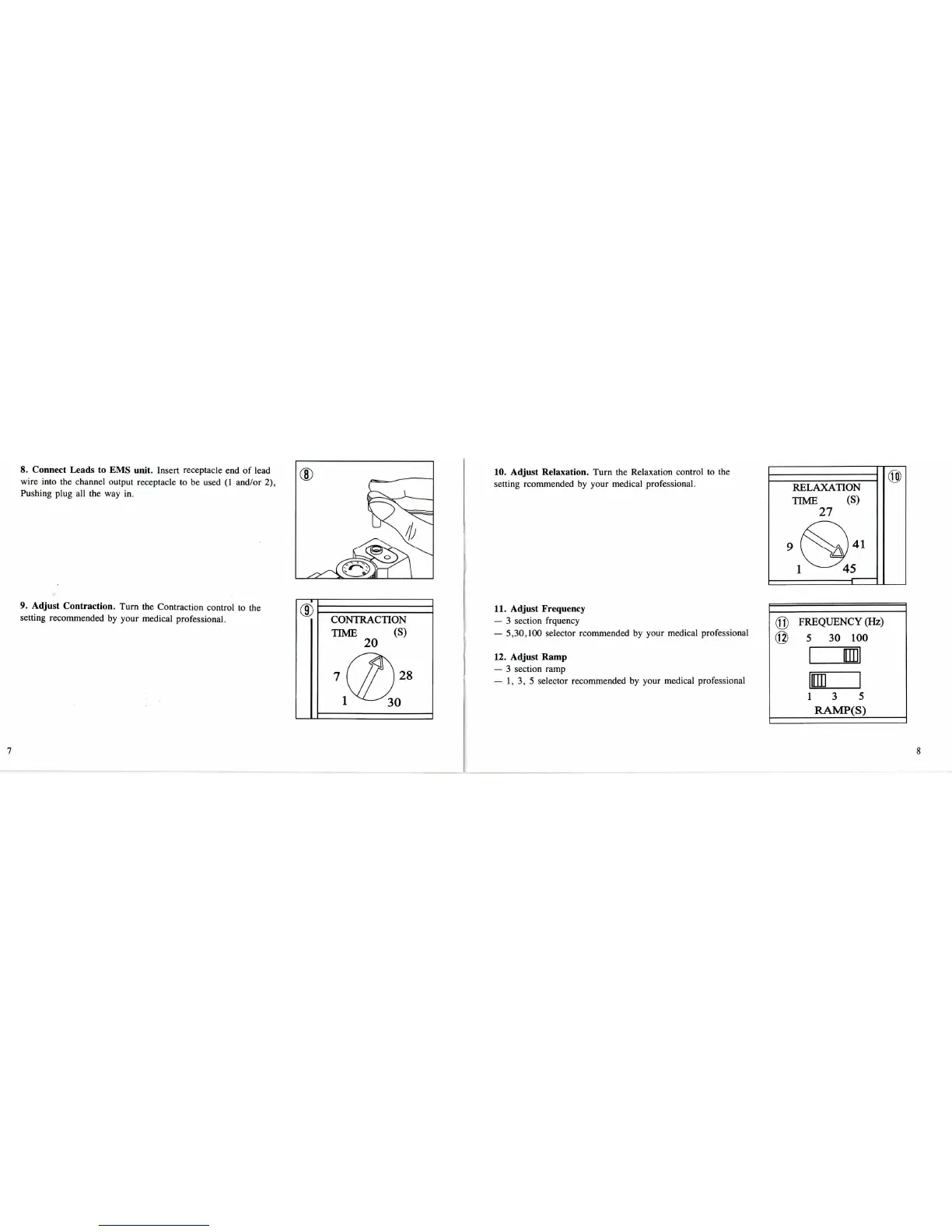

8. Connect Leads to EMS unit. Insert receptacle end of lead
wire into the channel output receptacle to be used (1 and/or 2),
Pushing plug all the way in.
9. Adjust Contraction. Turn the Contraction control to the
setting recommended by your medical professional.
CONTRACTION
TIME (S)
20
10. Adjust Relaxation. Turn the Relaxation control to the
setting rcommended by your medical professional.
RELAXATION
TIME (S)
27
11. Adjust Frequency
— 3 section frquency
— 5,30,100 selector rcommended by your medical professional
12. Adjust Ramp
— 3 section ramp
— 1, 3, 5 selector recommended by your medical professional
FREQUENCY (Hz)
5 30 100
1 3 5
RAMP(S)
