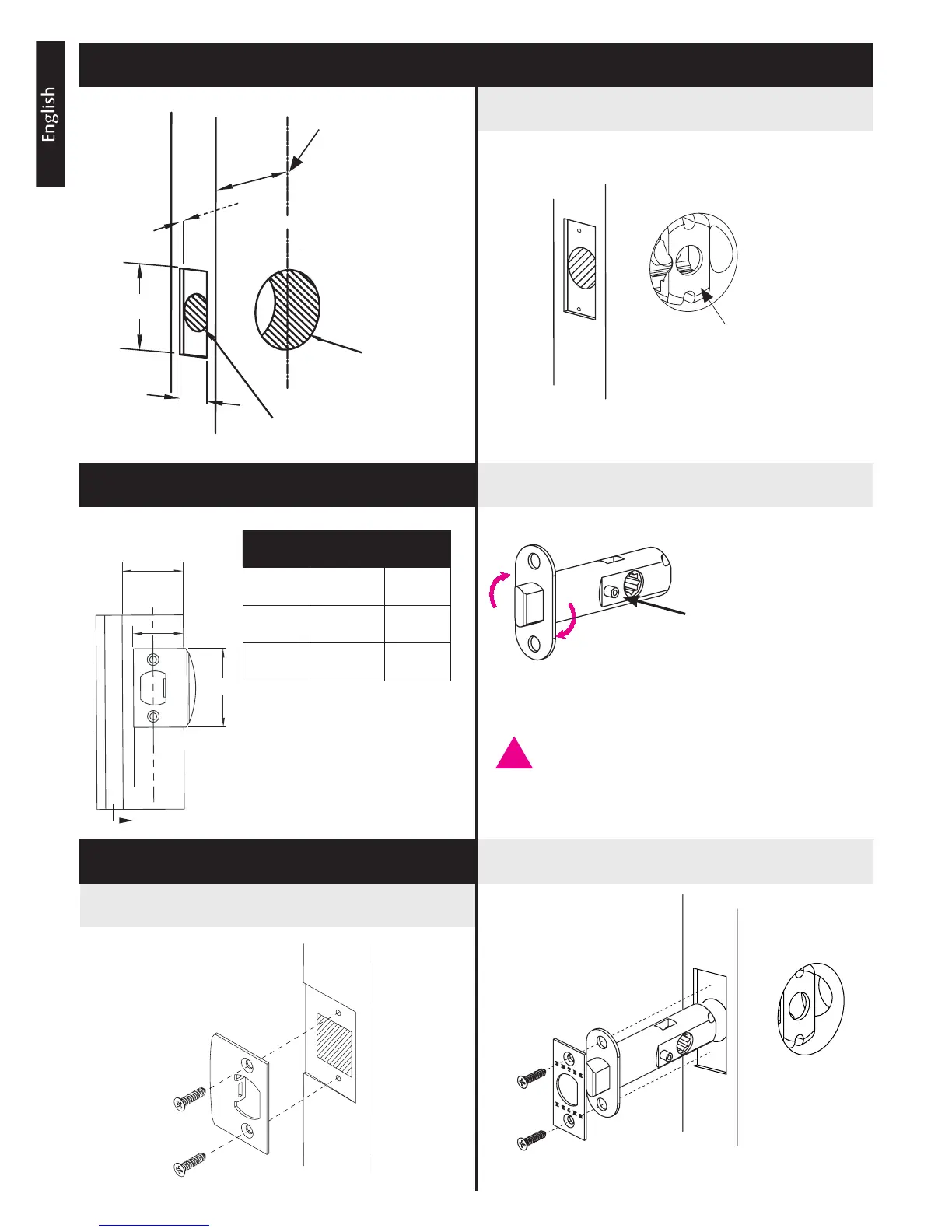

Emtek CF Mechanism - Door Preparation and Latch Installation; Door Bore and Backset Dimensions; Strike Plate Door Jamb Preparation; Install Strike Plate

2
Step 3: Fasten Latch using two #8 x ¾” wood screws.
Fasten Strike Plate using two #8 x ¾” wood screws.
Step 2: Insert the latch through the alignment tool.
1. Door Prep 4. Install Latch
2 ⁄” or 2 ¾”
Backset
2 ⁄” Diameter
Bore
⁄” Deep
2 ¼”
1 “
1” Diameter Edge Bore
Step 1: Place Plastic Alignment tool in bore hole.
Alignment Tool
Privacy Function:
the threaded hole
for the privacy pin
must be facing the
interior side of the
door.
ROTATE THE NOSE BOLT SO THAT THE CURVED
FACE WILL HIT THE STRIKE PLATE WHEN
CLOSING THE DOOR.
!
A B C
1⁄” 1¼” 2¼”
1½” 1⁄” 2¼”
1¾” 1⁄” 2¼”
NOTE: Dimensions B & C should
be used as reference only. Due
to tolerances actual door jamb
prep dimensions will vary. Using
the strike plate outline edges and
locate screw holes on strike with
center line on jamb.
A
B
C
C
L
Door Stop
Door Thickness (A)
2. Standard Strike Plate Door Jamb Prep
3. Install Strike Plate
