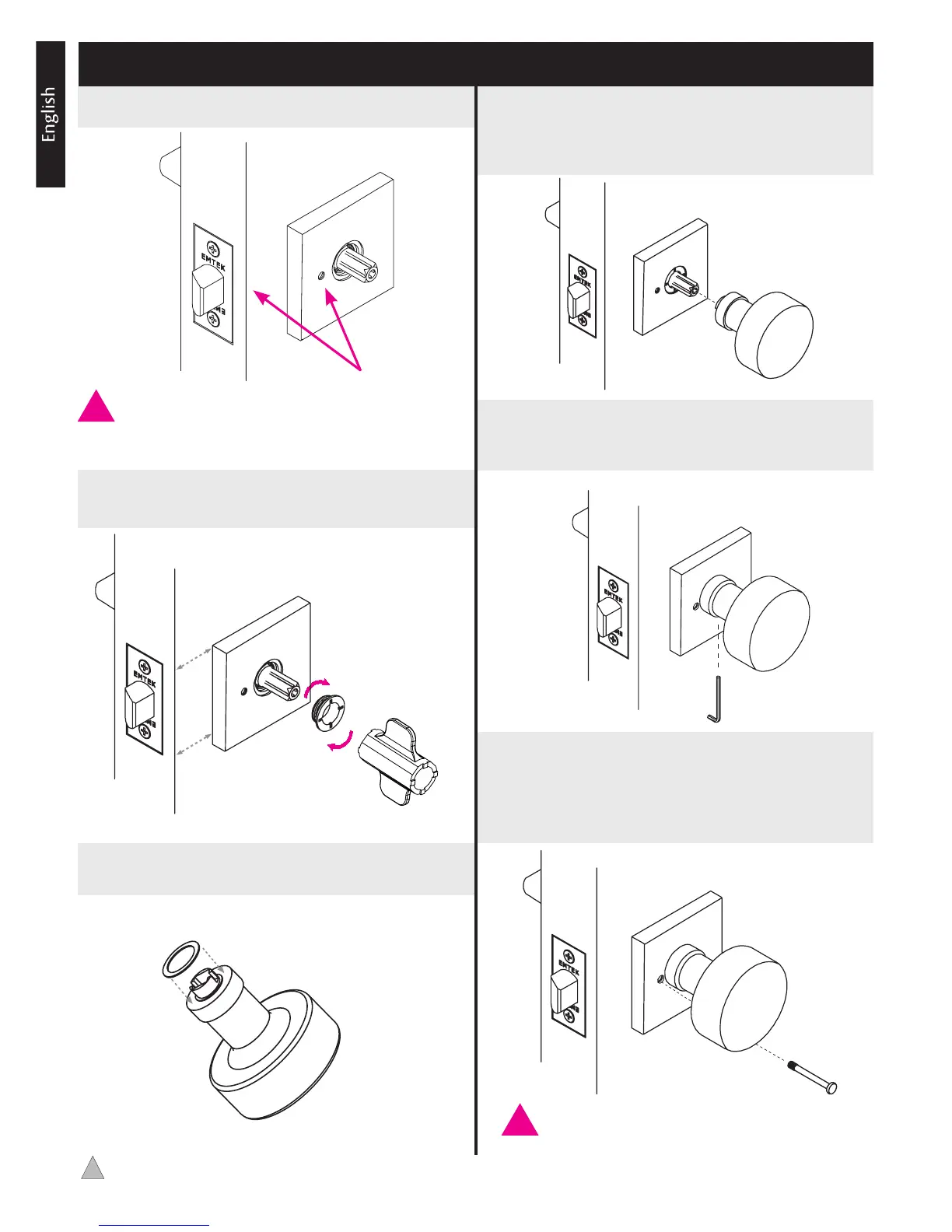

6. Place the Outside Trim
Step 2: Secure the rosette to the door using the Ring
Fastener Wrench.
Step 1: Place the rosette.
Step 5: Firmly tighten the Pre-installed set screw in the
lever or knob with the provided Allen wrench. Ensure that
it is rmly tightened.
Step 6: For Privacy Lock, screw the Privacy Pin through
the rosette, into the latch. To check functionality, turn
the interior lever/knob to engage the latch. Now, push
the privacy pin in and turn the exterior lever/knob. The
exterior lever/knob should not retract the latch.
Step 3: Place the Plastic Washer on the door lever or knob.
Step 4: Slide the door lever or knob onto the spindle.
Make sure the plastic washer remains centered on the
stem as you slide the lever or knob onto the spindle and
up against the rosette.
In the privacy function, ensure the privacy pin
hole in the rosette is on the side closest to the
door edge and aligns with the hole in the CF
Mechanism.
For emergency, insert a nail type object into
the release hole of the exterior rosette to open
the lock.
!
!
