Emtek Classic - Install Inside Trim Plate

8
*Unlocked position is required for installation and removal of the Inside
Trim Plate Assembly.
*Unlocked
Correct for installation
Locked
Screws (item #4c)
Incorrect for installation
!
!
THUMBTURN MUST BE IN
UNLOCKED POSITION FOR
INSTALLATION.
USER CODES
ARE LOCATED
ON THE INSIDE
TRIM PLATE &
ON PAGE 11.
Inside

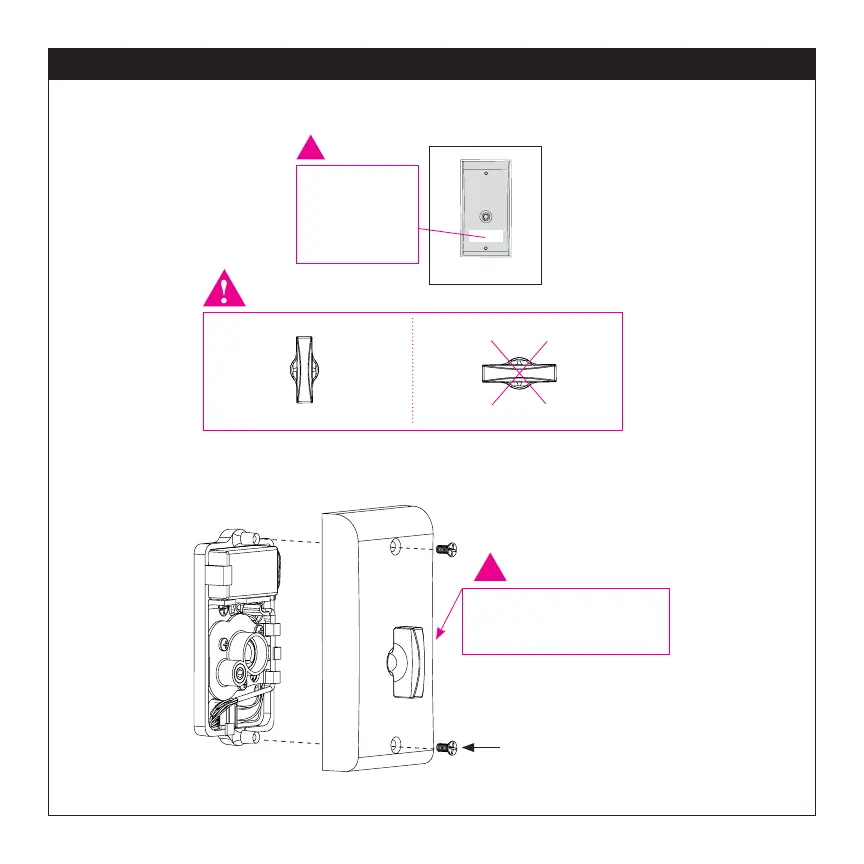

5. Install Inside Trim Plate
Fasten Inside Trim Plate using two #8-32 x ⁄” Flat Head Machine Screws
(item #4c).
