Emtek EMpowered Smart Lock - Page 43

43

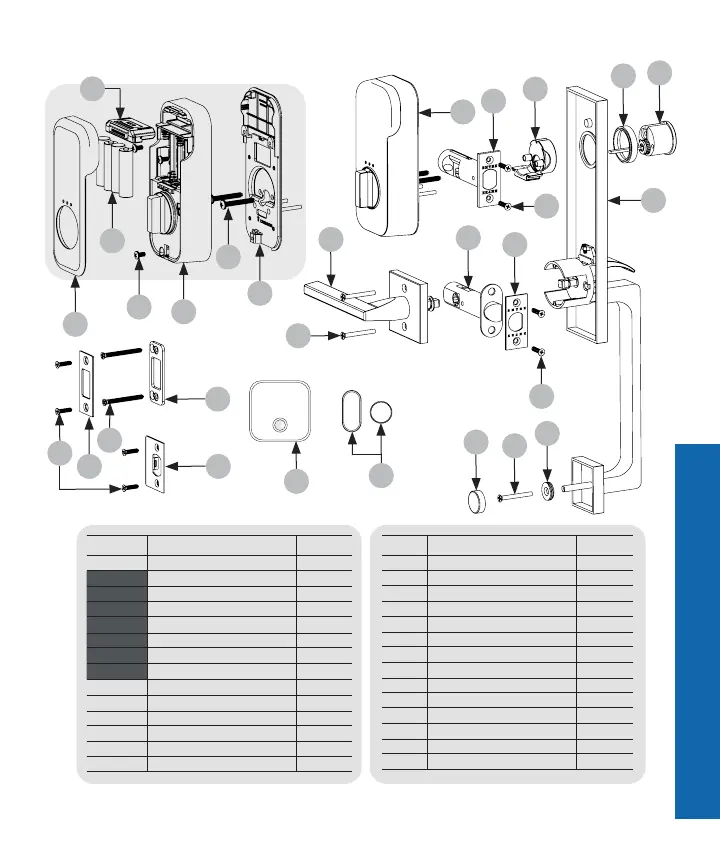

TUBULAR ENTRY SET - MONOLITHIC/FULL LENGTH
What’s in the box
ITEM NO. DESCRIPTION QTY.
1 EMPowered™ Unit 1
1a August Module 1
1b Battery Cover 1
1c AA Batteries 4
1d M4-0.7 x 8mm Machine Screws 3
1e Interior Escutcheon 1
1f #10-32 x 2-1/8” Machine Screws 2
1g Mounting Plate 1
2 Interior Knob/Lever Assembly 1
3 #8-32 x 1-1/2” Machine Screws 2
4 Deadbolt Latch 2-3/4” Backset 1
4 Deadbolt Latch 2-3/8” Backset 1
5 Deadbolt Screw Guide 1
6 Entry Set Exterior Assembly 1
ITEM NO. DESCRIPTION QTY.
7 Deadbolt Extension Collar 1
8 Deadbolt Cylinder 1
9 Passage Latch 1
10 Latch Face Plate 1
11 Decorative Cap 1
12 #8-32 Flat Head Machine Screw 1
13 Threaded Washer 1
14 #8 x 3/4” Wood Screws 8
15 Latch Strike Plate 1
16 Deadbolt Strike Plate 1
17 Deadbolt Security Plate 1
18 #10 x 3” Wood Screws 2
19 August Connect 1
20 August DoorSense
TM
1
14
19
20
15
17
16
18
1b
1d
1e
1a
1f
1g
1c
1
2
3
14
14
13
12
11
4
5
7
8
6
9
10
