7. Make sure the covers are attached and
closed tight using all four plastic screws
provided. The wiring to the enclosure must
enter via UL listed watertight fitting such as a
strain relief or watertight conduit connector.
8. Verify that the IRB-4X transmitter and receiver
are aligned and apply power.
LED Indicators
Green transmitter LED on
Power
Green receiver LED on
Power
Red receiver LED on
Beam blocked or not aligned
9. Place an obstruction (ex. hand) between the IRB-4X transmitter and receiver. The red LED on the
receiver will turn on. Check the operator control board and verify that the safety input is recognized
by the operator. Test the beam with an obstruction between the transmitter and receiver
at multiple distances to confirm proper operation.
10. Remove the obstruction and red LED will turn off.
• If IRB-4X is aligned but not detecting an obstruction, consider slowly reducing
the sensitivity (clockwise) on the receiver until the obstruction is detected.
This may be applicable for installations with a detection zone of less than 20 ft.
• On some variable frequency drives and noisy installations, it may be necessary to
connect the bottom right mounting hole labeled “Earth Ground” to a wire connected
to earth ground. Do not connect unless necessary.
TIP:

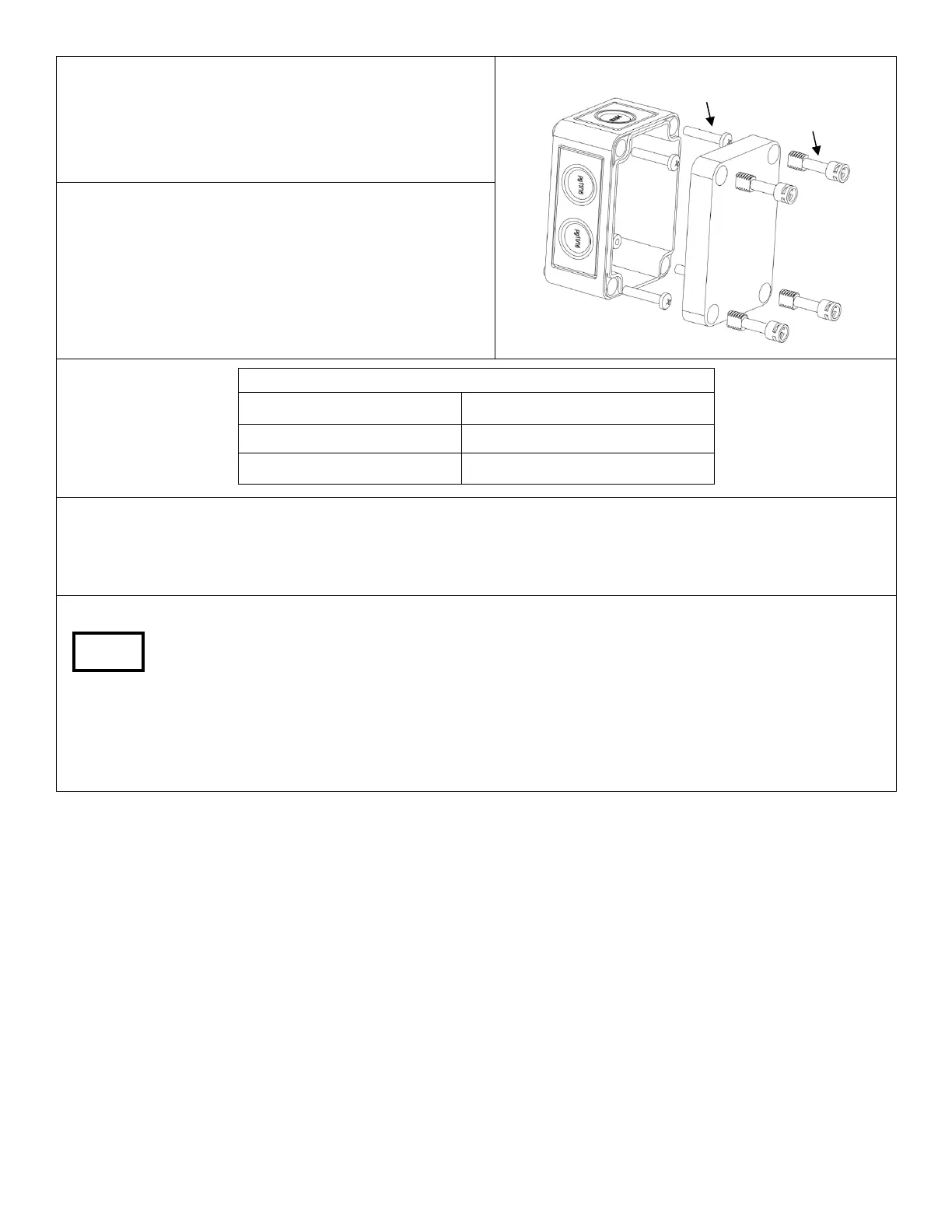

mounting screws
cover screws
