EMX NIR-50 - Controls and Indicators; Connections

NIR-50 Operating Instructions 3
Document no. NIR-50 Instructions.doc
Controls and Indicators
Sensitivity
Clockwise increases sensitivity
Normally set to maximum (single turn)
Yellow LED
LED is on when unit is energized and signal is stable
Red LED
Is on when is energized and alignment is correct
LED is off when unit is energized and object is detected or not aligned

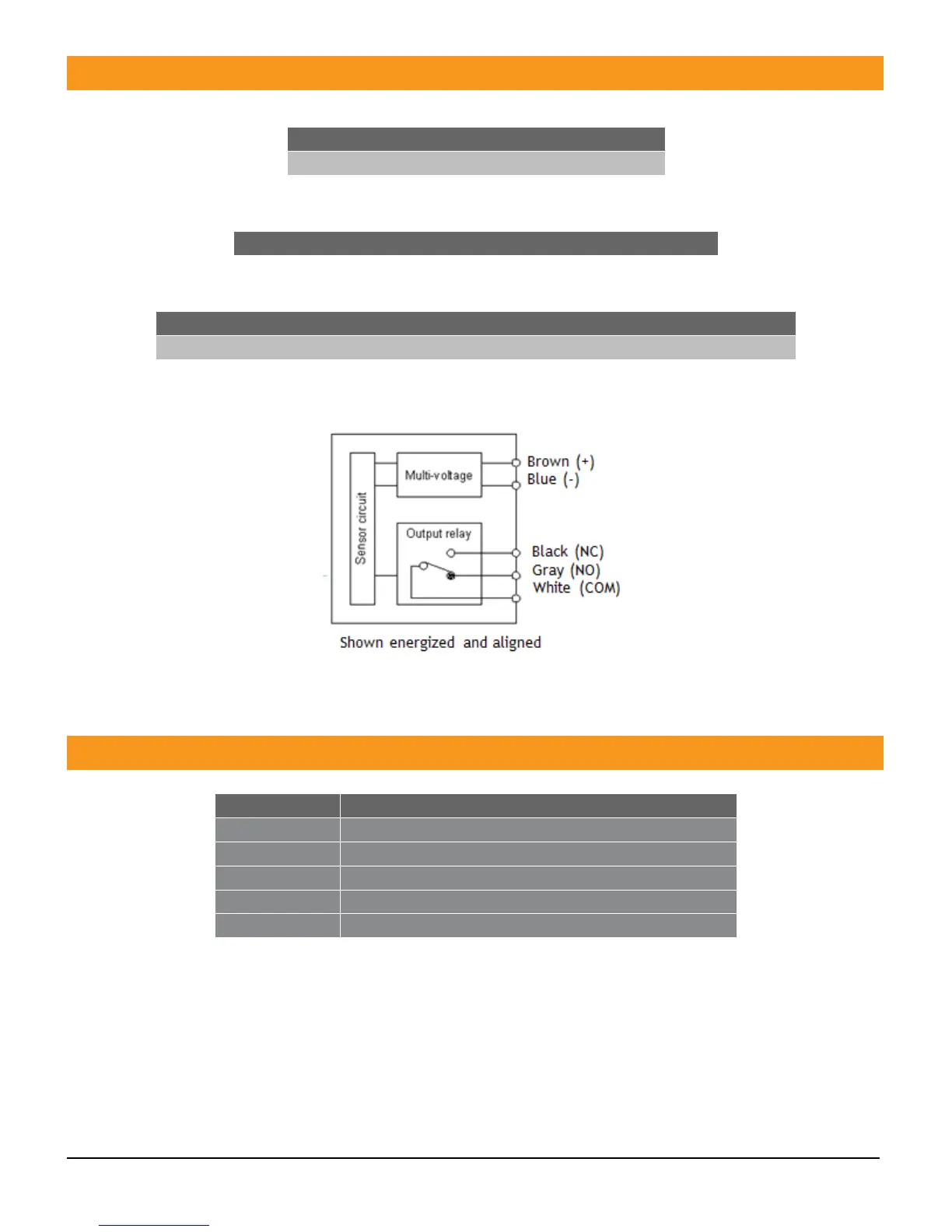

Connections
Wire Color
Connection
Brown
Power Positive (+)
Blue
Power Negative (-)
Black
Internal Relay Contact Normally Closed (NC)
Gray
Internal Relay Contact Normally Open (NO)
White
Internal Relay Contact Common (COM)
