WEL-200™ Operating Instructions 9

Document no. 10320104 Revision 2.0 3-1-19

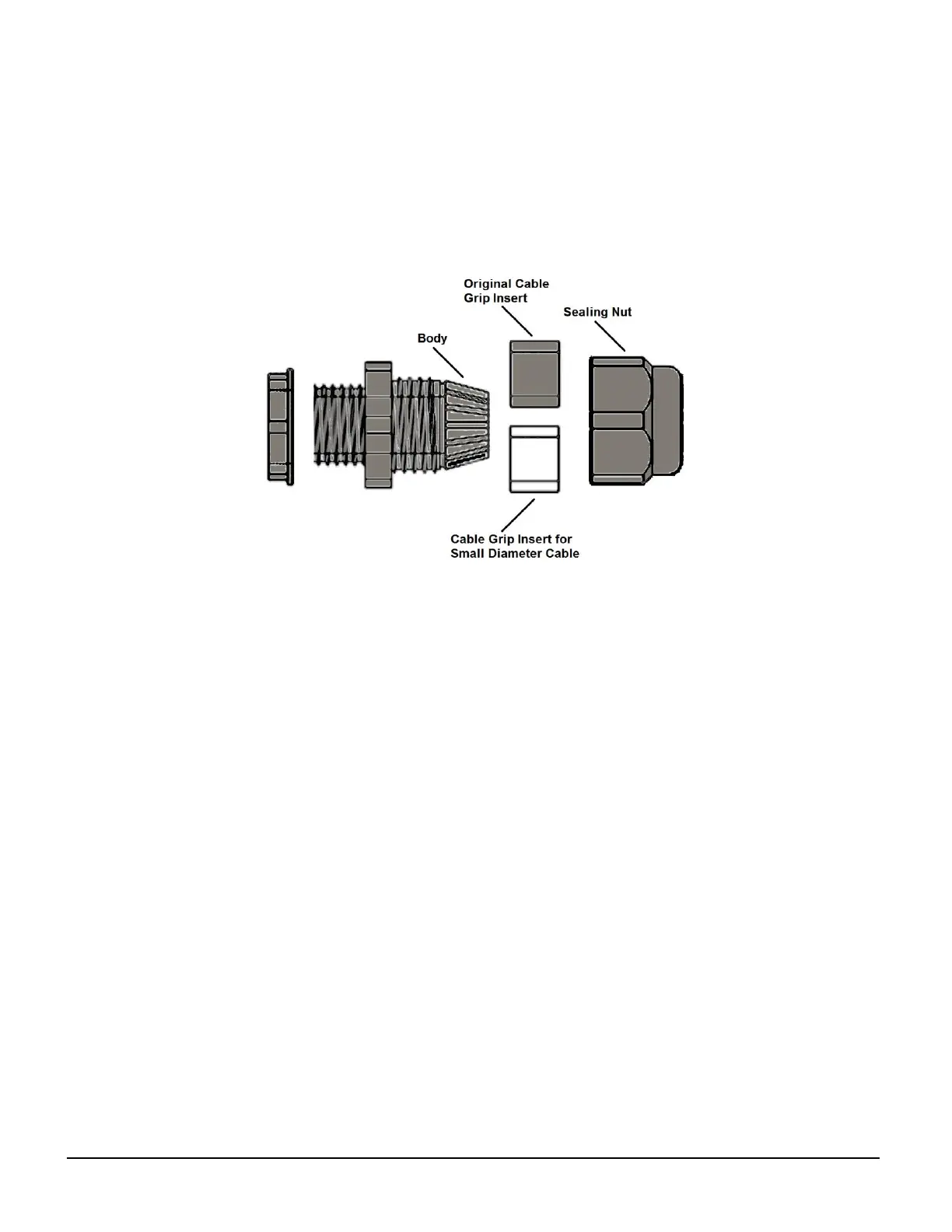

CABLE GRIP INSTALLATION for both transmitter and receiver

The cable grip provides a NEMA 4X rating. To maintain a watertight seal follow these instructions:

a. Cable must be 0.181 – 0.312 (4.6 – 7.9mm) diameter for proper seal using the cable grip

insert as supplied. A separate white insert is provided when using cables sizes 0.069 –

0.187 (1.8 -4.7mm). To maintain a watertight seal, use only round cables, do not use

individual wires or any cable that is not round.

1. Remove sealing nut.

2. Remove dark insert from body (compression fingers) and replace with white insert.

3. Hand-tighten the sealing nut to secure.

a. Hand-tighten the sealing nut as far as possible. Hold the body hex stationary with a

wrench. Using a second wrench, tighten the sealing nut to 40 in. lbs. until the cable is

securely held in place.

b. If the cable has different diameter point the cable ingress down to prevent water

penetration.
