WEL-200™ Operating Instructions 5

Document no. 10320104 Revision 2.0 3-1-19

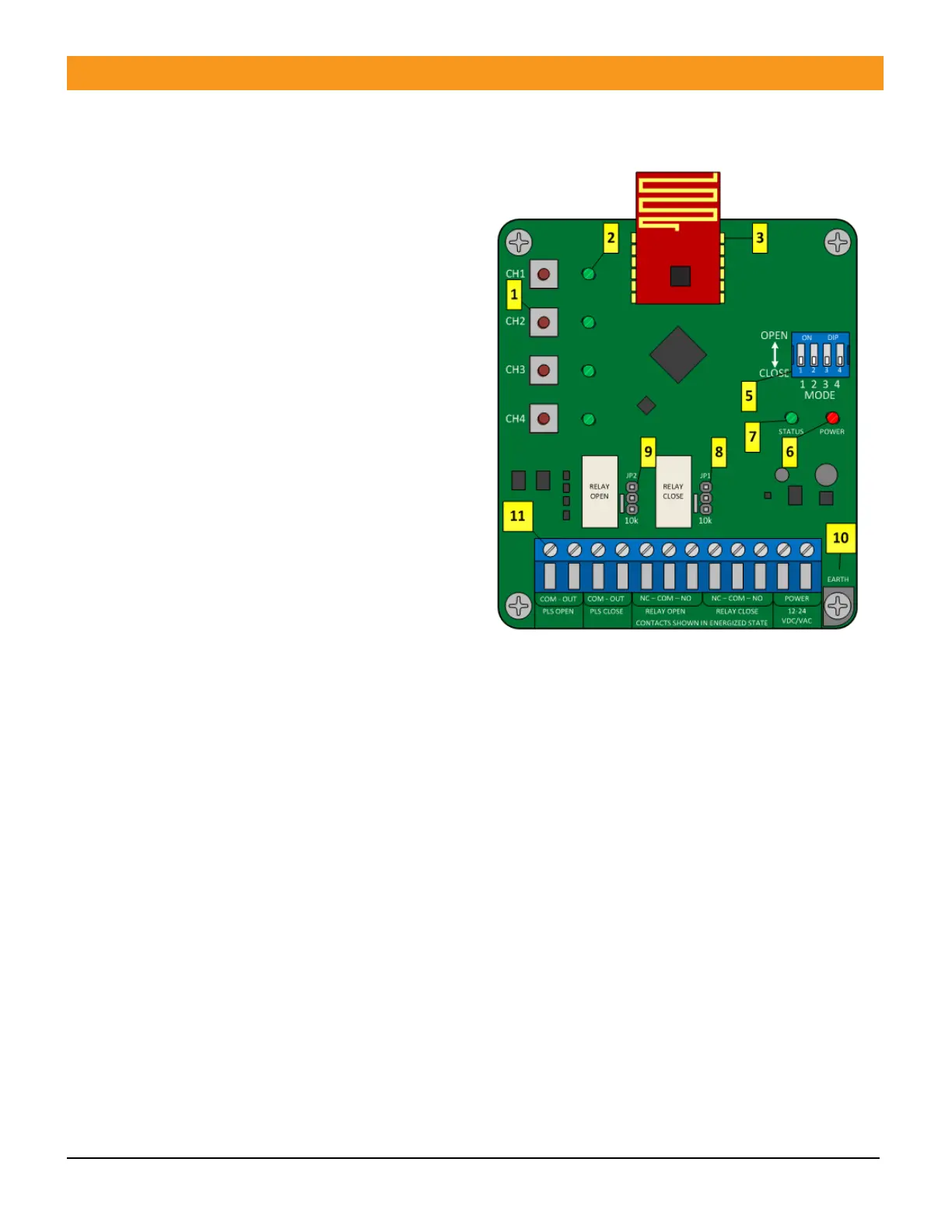

Controls and Indicators

Receiver

1. Channel assignment switches

- Assigns a wireless transmitter to the

specified channel

2. Channel status indicators

- Indicates current status of each channel

3. Wireless transceiver module

- Wireless radio used to communicate with

transmitters

4. Not used

5. Open/close direction assignment

switch

- Assigns channel to either open or close

direction output function

6. Power indicator

- On constantly when receiver is powered

7. Status indicator

- Shows current system status

8. “Close” direction relay termination

jumper

- Terminates the COM/NO terminals with a

10k resistor when jumper is placed in the

lower position

9. “Open” direction relay termination

jumper

- Terminates the COM/NO terminals with a

10k resistor when jumper is placed in the

lower position

10. Earth ground

- Connection point for earth ground

11. Terminal block

- Receiver I/O (see Table 1 in Connections)
