EMX WIRELESS EDGE LINK WEL-200 User Manual

WEL-200™ Operating Instructions 7
Document no. 10320104 Revision 2.0 3-1-19

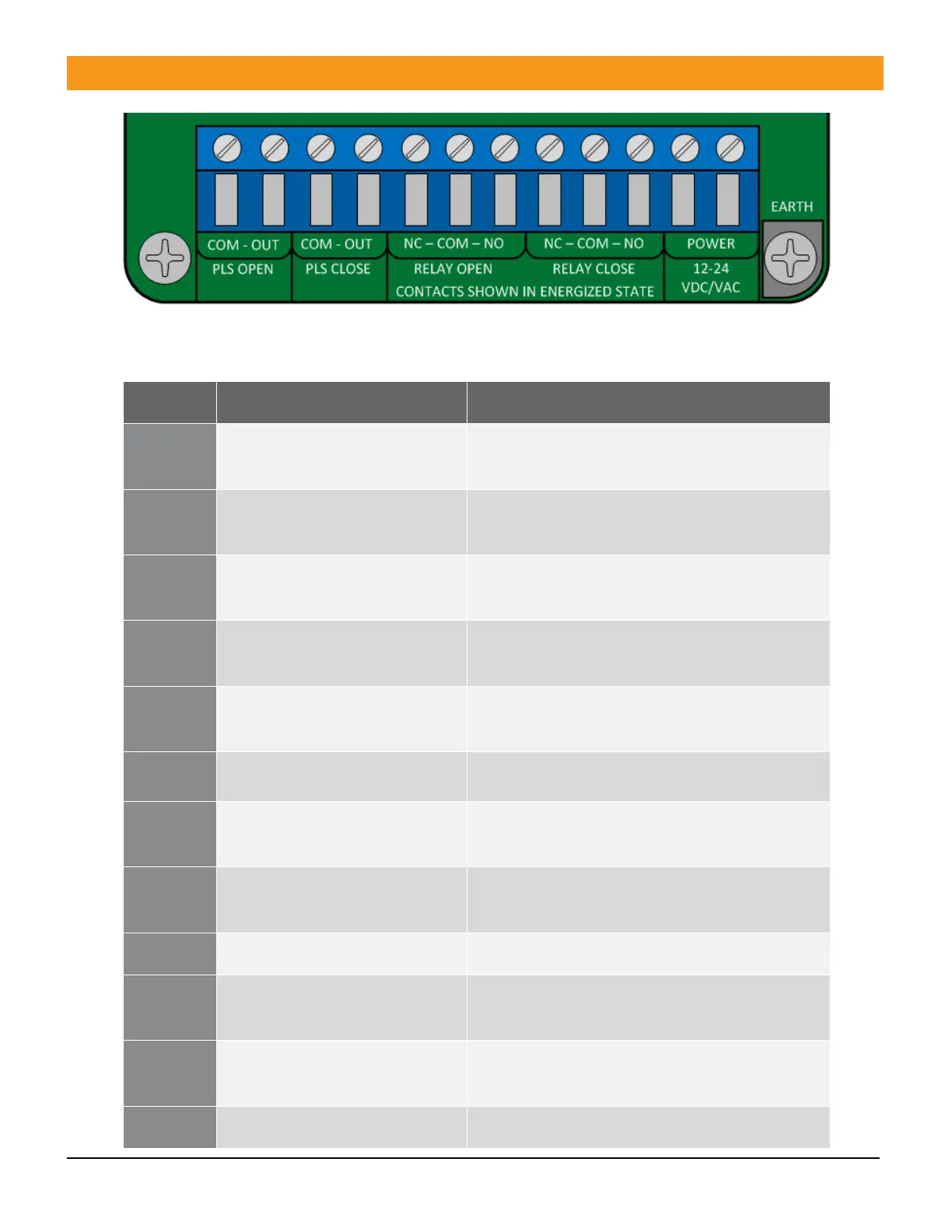

Connections
Table 1: RECEIVER CONNECTIONS
Terminal
Function
Description
1
PLS OPEN COM
Signal common connection for OPEN
direction
2
PLS OPEN OUT
Pulsed output for OPEN direction (300/0
Hz)
3
PLS CLOSE COM
Signal common connection for CLOSE
direction
4
PLS CLOSE OUT
Pulsed output for CLOSE direction (300/0
Hz)
5
RELAY OPEN NC
Normally closed connection for OPEN
direction
6
RELAY OPEN COM
Common connection for OPEN direction
7
RELAY OPEN NO
Normally open connection for OPEN
direction
8
RELAY CLOSE NC
Normally closed connection for CLOSE
direction
9
RELAY CLOSE COM
Common connection for CLOSE direction
10
RELAY CLOSE NO
Normally open connection for CLOSE
direction
11/12
POWER
12-24 VDC/VAC power input (non-
polarized)
EARTH
EARTH
Earth ground connection
