WEL-200™ Operating Instructions 6

Document no. 10320104 Revision 2.0 3-1-19

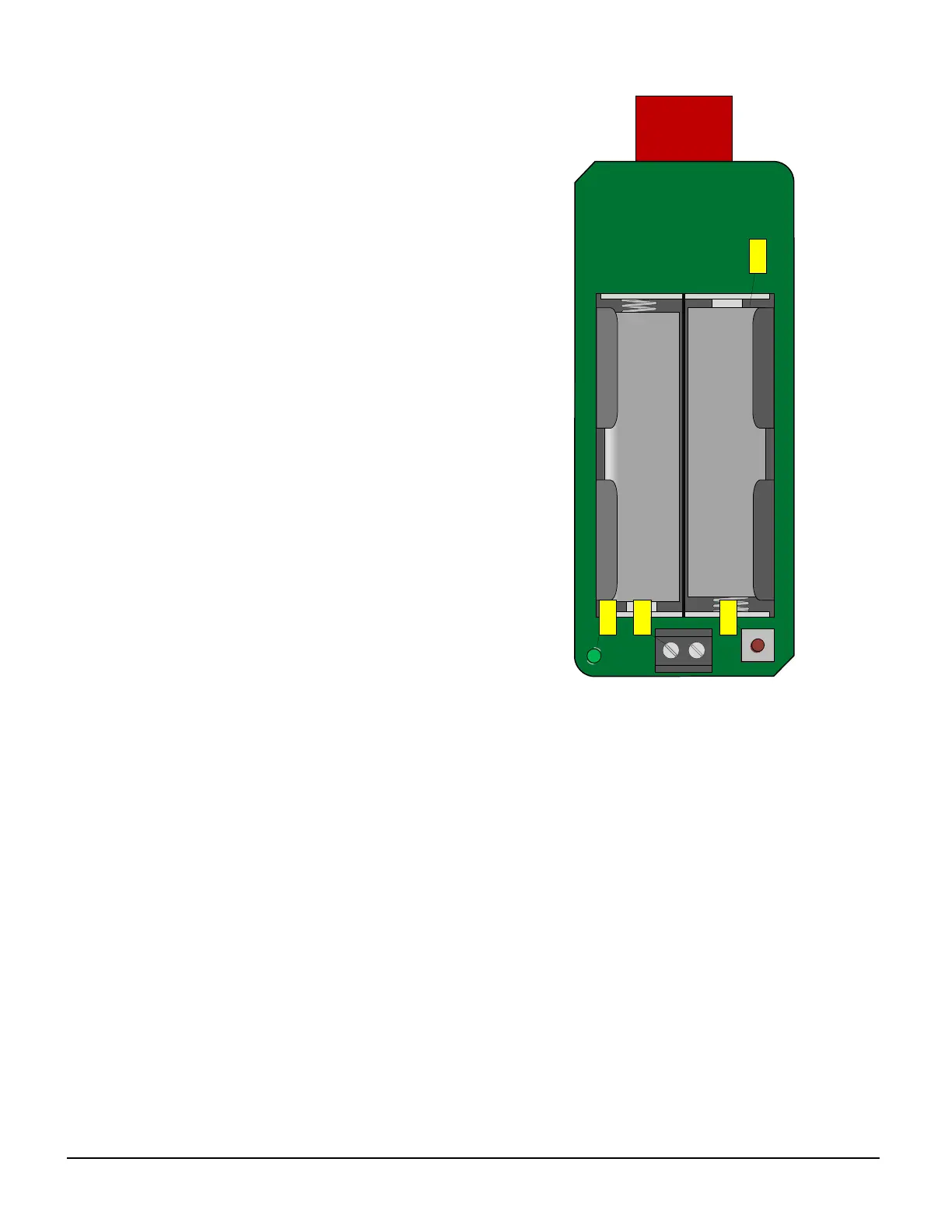

Transmitter

1. Batteries

- Use two AA lithium batteries, 1.5V (ANSI

15-LF, IEC-FR14505 (FR6)) for the best

performance and longest life. Observe

polarity indication on the battery holder.

2. Transmitter status LED

- Blinks twice every two seconds if not

connected, once if connected

- Blinks once every second when edge is

activated

3. Terminal block

- Interface for safety edge

4. Connection switch

- Connects/disconnects transmitter from

receiver

LED3

SW1

2 3 4
