HEIGHT ADJUSTMENT
REAR DECK MOUNT IN HIGHEST POSITION
(5) spacers on top of caster arm = 1 7/8" to 3 1/8"
(4) spacers on top of caster arm = 2 1/8" to 3 3/8"
(3) spacers on top of caster arm = 2 1/2" to 3 3/4"
(2) spacers on top of caster arm = 2 5/8" to 3 7/8"
(1) spacer on top of caster arm = 2 7/8" to 4 1/8"
All spacers under caster arm = 3 1/4" to 1 1/2"
REAR DECK MOUNT IN LOWEST POSITION
(5) spacers on top of caster arm = 1 1/2" to 2 3/4"
(4) spacers on top of caster arm = 1 3/4" to 3"
(3) spacers on top of caster arm = 2" to 3 1/4"
(2) spacers on top of caster arm= 2 3/8" to 3 3/8"
(1) spacer on top of caster arm = 2 5/8" to 3 7/8"
All spacers under caster arm = 2 7/8" to 4 1/8"
NOTE: Use 1/4" blade spacers to achieve cutting height between the above measurements.
Caster Arm
Caster Arm
Spacers
Caster Assy
Blade Spacers
Highest
Rear Deck
Mount Position
Lowest

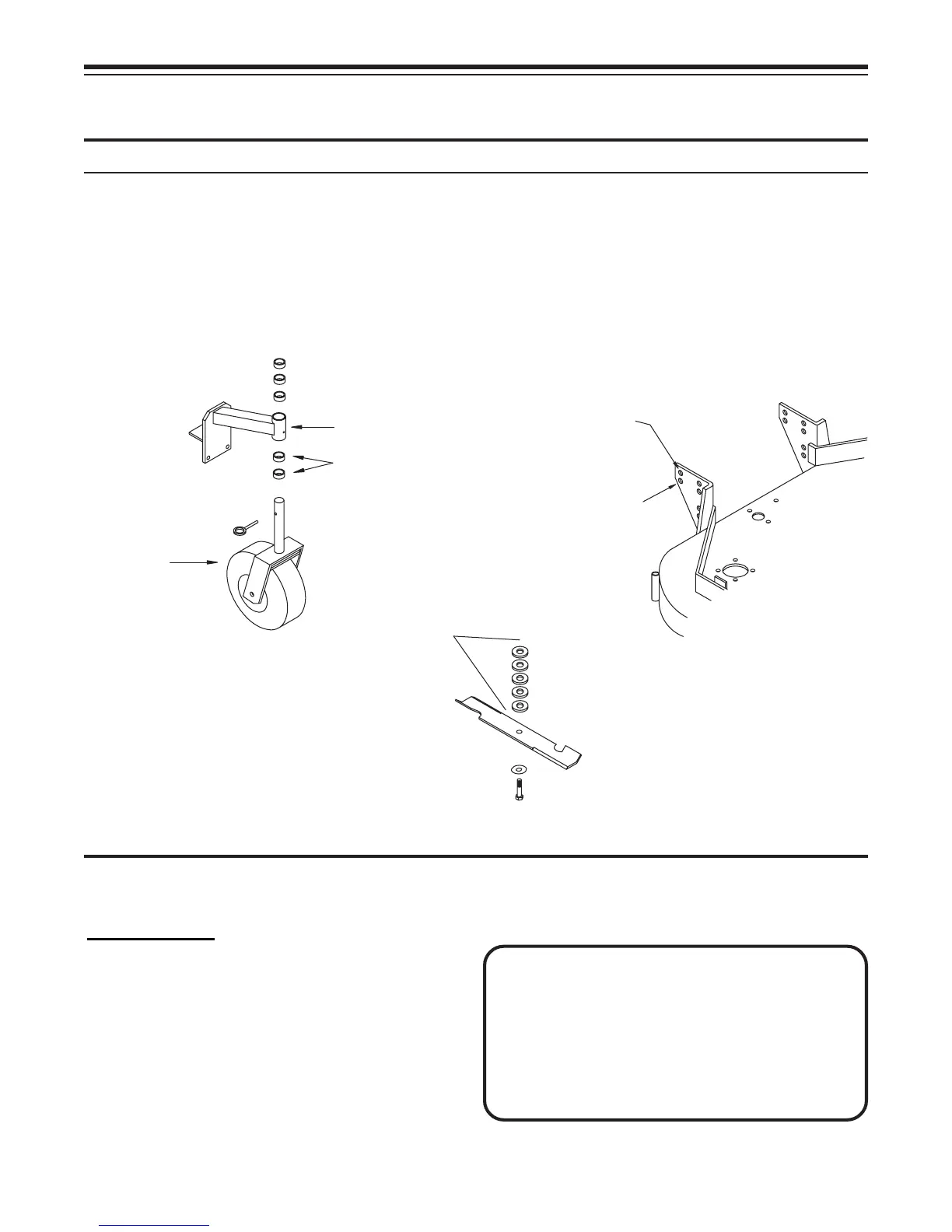

Fig. 4
LUBRICATION
(Units Prior to Serial Number 33333)
Grease Daily:
Idler Arm
Caster Wheels and Caster Pivots
Drive Wheels
Grease Every 100 Hours:
Bell Crank Pivot Bearing
Grease Every 250 Hours:
Cutter Housing Bearings
LUBRICATION / MAINTENANCE
The following recommendations should be used to ensure proper and safe operation of the
mower.
î CAUTION:
When greasing Cutter Housing, grease
each one with TWO PUMPS ONLY.
Excessive greasing can force seals out
causing premature bearing failure.
