Encore ENH916P-NWY - Front Panel Overview; Rear Panel and Power Connection

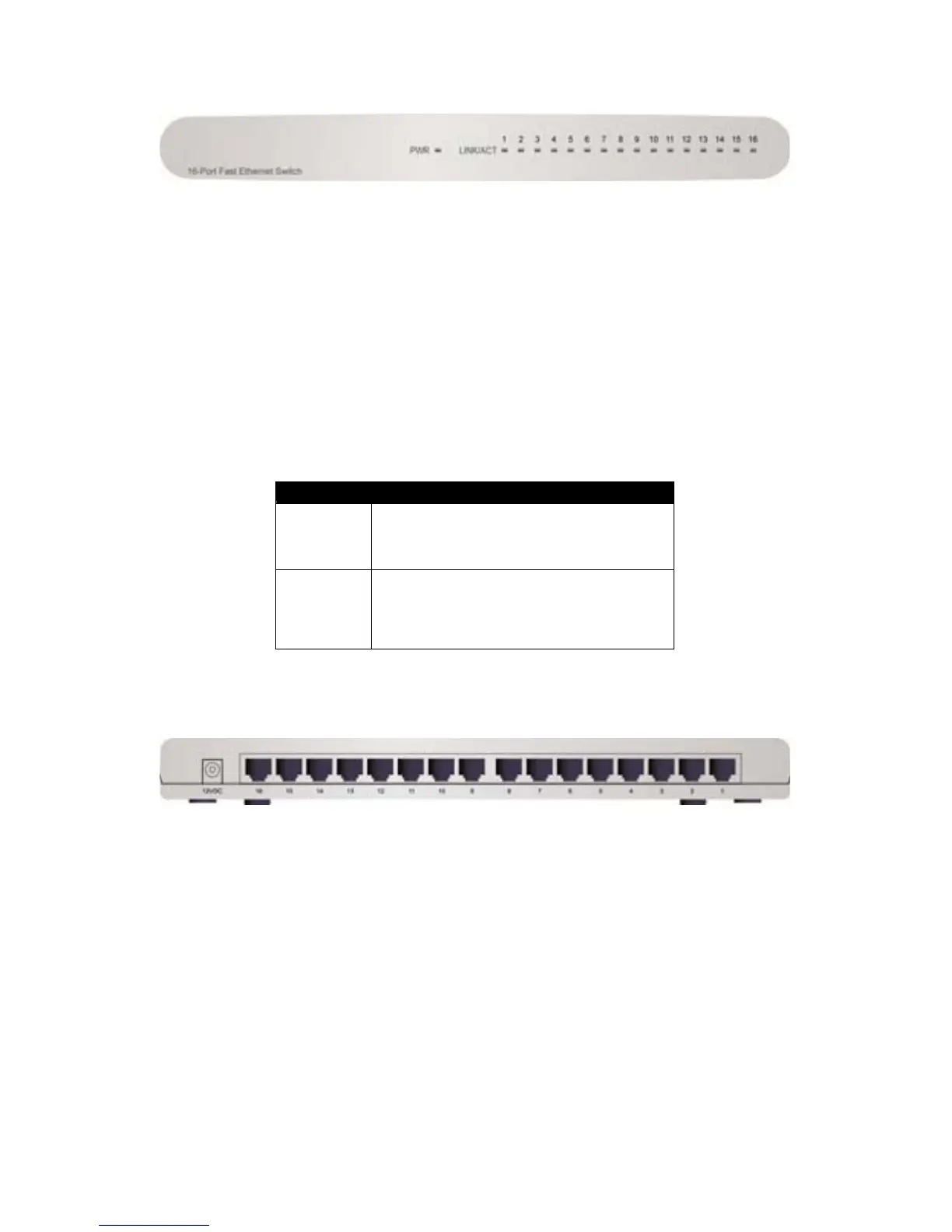

2.2 The Front Panel
The auto-negotiation feature of the switch allows each port of the device
running at one of the following four operation modes:
1. 100Mbps full-duplex
2. 100Mbps half-duplex
3. 10Mbps full-duplex
4. 10Mbps half-duplex
＊Each 10/100Mbps port supports auto MDI-X capability that is the port could
connect either the PC or switch without any cable adjustment.
LED definition
LED Operation
Power
Power on (Green)
Power
off (off )
Link/Act
The port is connected (Green)
The port is transmitting/receiving data
(
Blinkin
g
Green
)
2.3 The Rear Panel
The rear panel of the switch is shown as below
Power Co
nnecting
Plug the circle end of the power adapter firmly into the rear panel of the switch,
and the other end into an electric service outlet then the power is ready.
4
