z Surround Speakers: Connects to the surround speakers while in
4/6/8 channel modes.
z Center/Bass Speakers: Connects to the Center/Bass speakers
while in 6/8 channel modes.
z Back Speakers: Connects to back speakers while in 8 channel
mode.

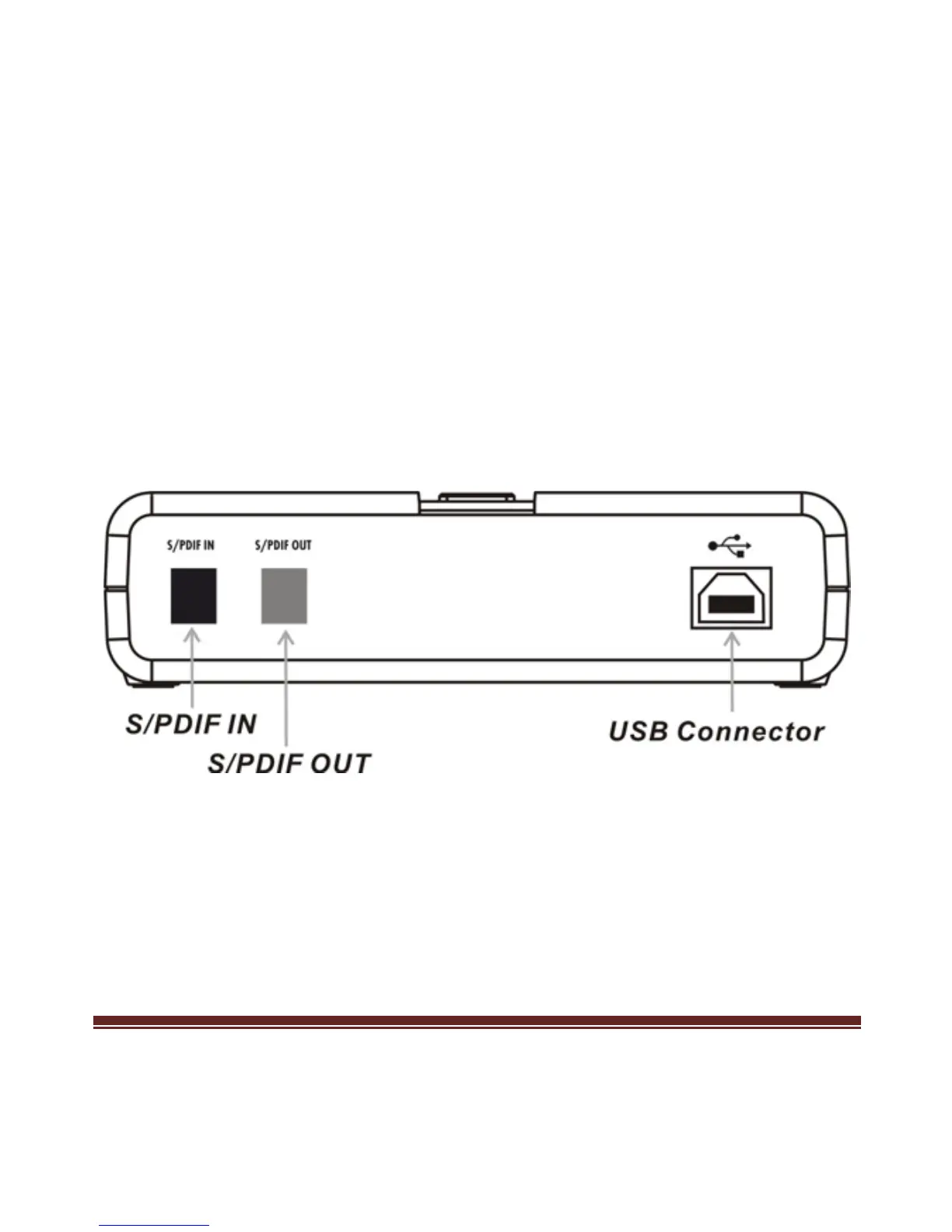

Figure 3. Connectors (Rear View)
z S/PDIF IN: Connects to the digital output of an external audio
device using an optical S/PDIF cable.
z S/PDIF OUT: Connects to the digital input of an external audio
device using an optical S/PDIF cable.
z USB Connector: Connects to the computer’s USB port.
