ENDA ET4420 User Manual

ET9420
ET7420
ET8420
ET4420
TEMPERATURE CONTROLLER
ENDA
ET 7420
C/A2
SSR
A1
PV
SV
F
C/A SET
SET
72mm
78mm
PV
SV
TEMPERATURE CONTROLLER
C/A2
SSR
ET 8420
ENDA
SET
C/A SET
F
A1
96mm
102mm
TEMPERATURE CONTROLLER
ET 9420
A1
C/A2
SSR
ENDA
PV
SV
SET
F
C/A SET
98mm
96mm
TEMPERATURE CONTROLLER
PV
SV
48mm
58mm
ENDA
C/A SET
F
SET
ET 4420
C/A2
A1
SSR

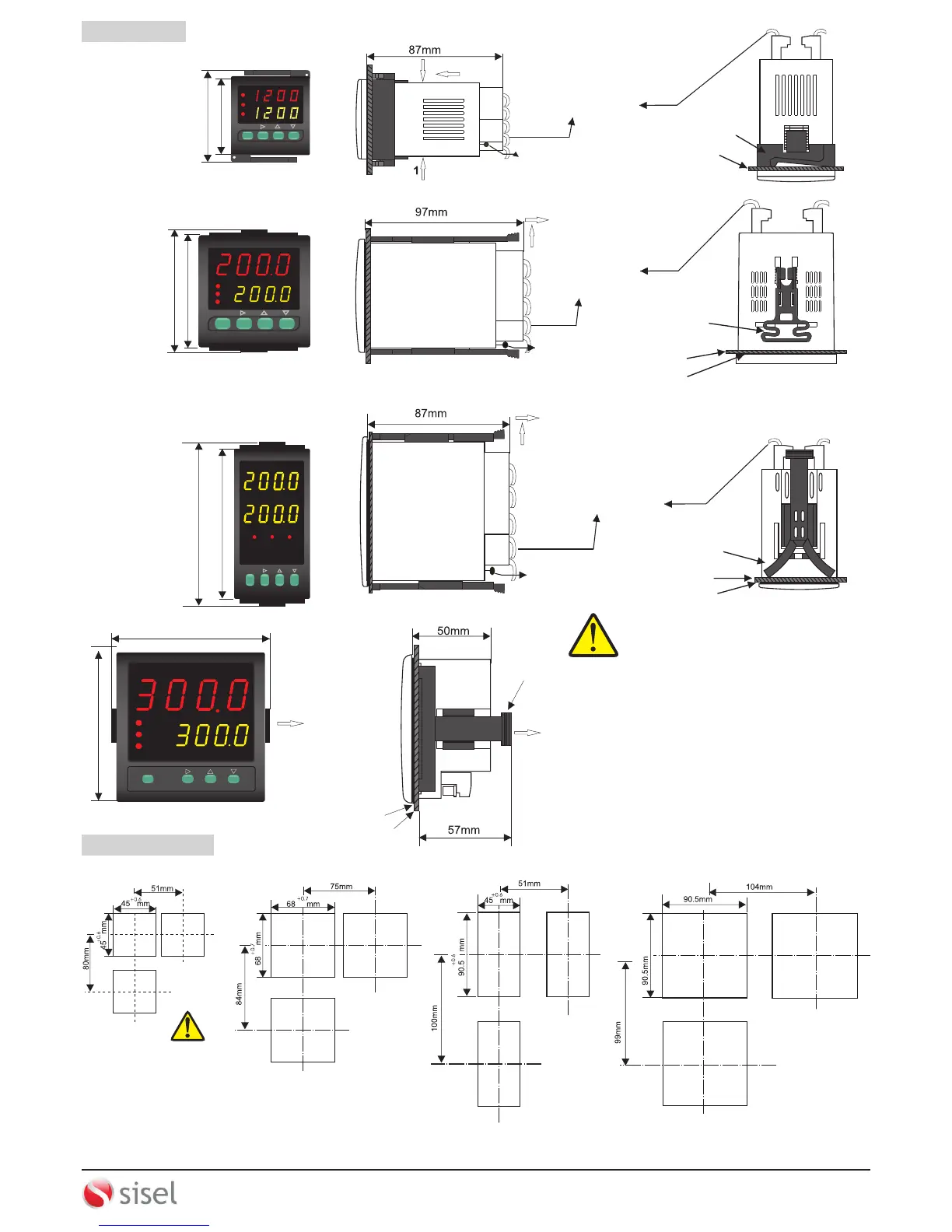

DIMENSIONS
Depth
Connection
Cables
Flush mounting
clamp
Ambient temperature
sensor
Depth
Connection
Cables
Flush mounting
clamp
Gasket
Panel
Panel
Ambient
temperature
sensor
Connection
Cables
Flush mounting
clamp
Gasket
Panel
Ambient
temperature
sensor
Depth
Depth
Flush
mounting
clamp
Panel
Gasket
- While pressing both side of the device
in direction 1, push it in direction 2 .
For removing the device from the panel:
- While pressing both side of the device
in direction 1, push it in direction 2 .
For removing the device from the panel:
- While pressing both side of the device
in direction 1, push it in direction 2 .
For removing the device from the panel:
1
2
1
2
1
2
1
2
from the panel :
- While pressing both
side of the device
in direction 1, push it in
direction 2 .
For removing the device
PANEL CUT-OUT
1) While panel mounting, additional distance
required for connection cables should be
considered (except ET9420).
Note :
2) Panel thickness should be maximum 9mm for ET4420, 10mm for
ET7420, 8mm for ET8420 and 6mm for ET9420.
3) If there is no free space at back side of the device, it would be
difficult to remove it from the panel. Required minimum free space;
ET4420 = 100mm, ET8420 = 90mm, ET9420 = 60mm.
4/7
ENDA ET Series PID Temperature
Controllers are intended for installation
in control panels. Make sure that the
device is used only for intended purpose.
The shielding must be grounded on the instrument
side. During an installation all of the cables that are
connected to the device must be free of energy.
Device must be protected against inadmissible
humidity, vibrations, severe soiling and make sure
that the operation temperature is not exceeded. All
input and output lines that are not connected to the
supply network must be laid out as shielded and
twisted cables. These cables should not be close to
the power cables or components. The installation and
electrical connections must be carried on by a
qualified staff and must be according to the relevant
locally applicable regulations.
ETxx20-EN-01-170816
SİSEL MÜHENDİSLİK ELEKTRONİK SAN. VE TİC. A.Ş.
Şerifali Mah. Y.Dudullu 34775
ÜMRANİYE/İSTANBUL-TURKEY
Tel : +90 216 499 46 64 Pbx. Fax : +90 216 365 74 01
url : www.enda.com.tr
Barbaros Cad. No:18
ENDA
TM
