Figure 2

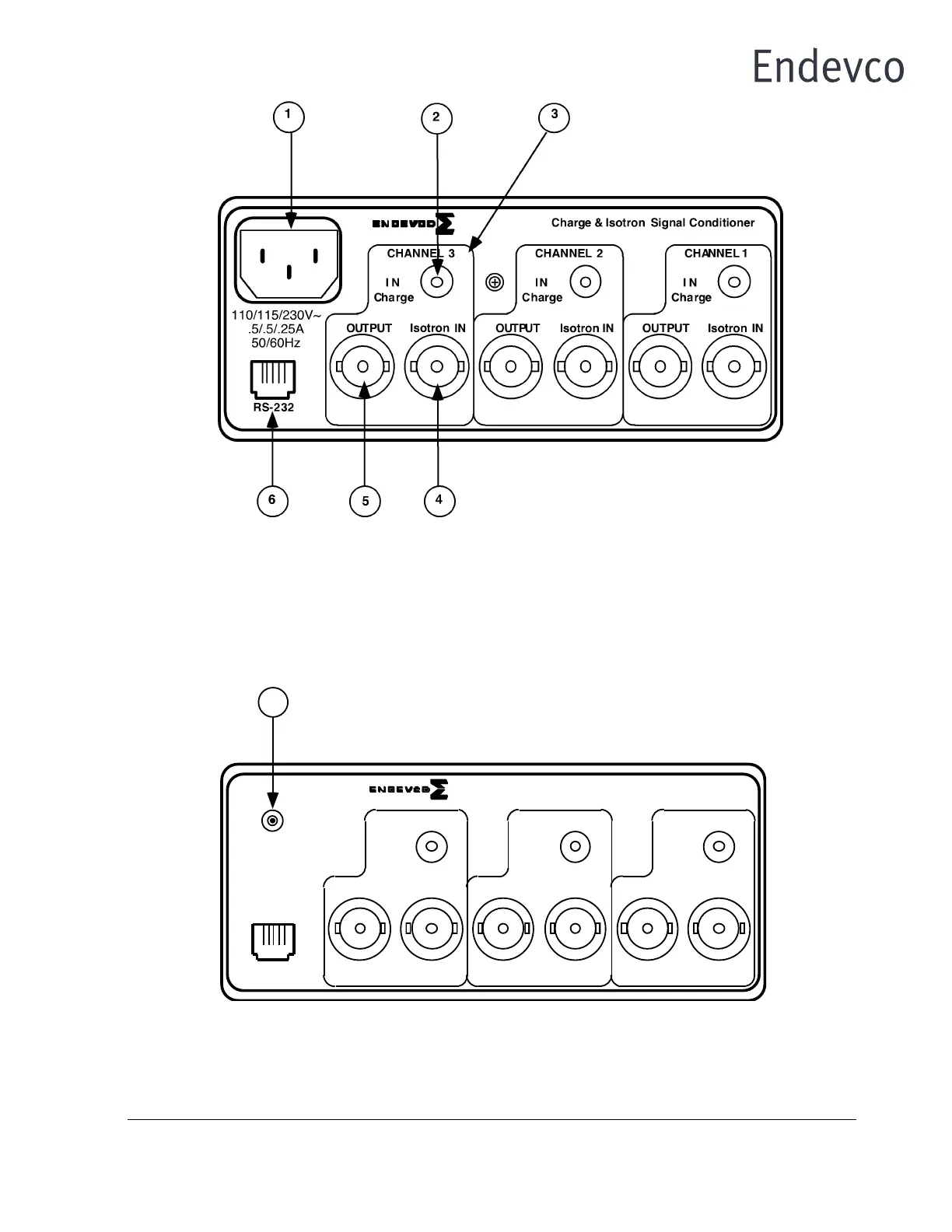

Figure 3 is the optional Model 133-1 Rear panel view. Item 1, is the DC input power connector.
The input power requirements are: 9 to 18 volts DC and a maximum current of 1 amp. The input
connector is a 760 Plug style.
Figure 3
RS-232
Isotron INOUTPUT
I N
Charge
CHANNEL 3
Isotron INOUTPUT
IN
Charge
CHANNEL 2
Isotron INOUTPUT
I N
Charge
CHANNEL 1
9-18 VDC
Charge & IsotronSignal Conditioner
1
