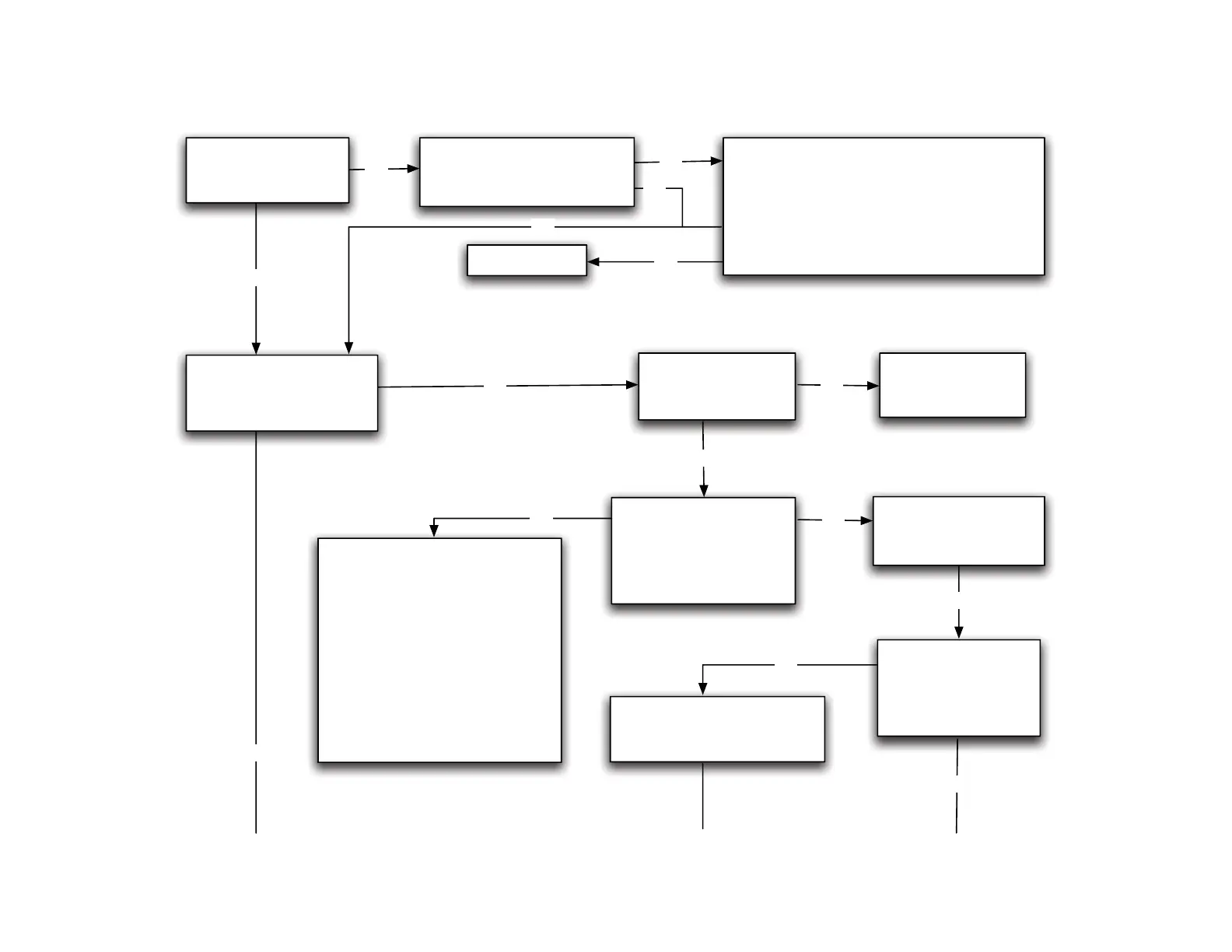

Wireless Controller (EP1 or EP2) 60Hz
Power Unit Not Turning On
Is GFI breaker tripped?
(cycle breaker fully off
then on again)
Does the light on the
transmitter blink when
pressing any button?
Verify wiring of entire controller
using schematic on controller
Does breaker continue to trip?
Change battery
(CR2032) or try a
different transmitter
For ideal responsiveness,
distance from transmitter
to antenna should be no
more than 25'.
Does the system work at a
closer range?
Does pressing any button
on transmitter cause the
upper red LED on receiver
to blink?
Was coaxial cable
extension used to move
antenna closer to pool?
Remove antenna from
coaxial extension and
place antenna directly
on controller.
Does unit work now?
N
Y
N
Y
N
N
Y
Y
Y
Check tightness of antenna
connections (coaxial, spade and
grounding ring)
AND
If more than 25' from antenna to
transmitter, consider relocating
antenna closer to pool.
Ensure there are no metal
obstructions to block the signal
between antenna and transmitter.
Ensure there are no other wireless
devices interfering with the signal
(such as a wireless pet fence)
Clear receiver and reprogram
transmitters (see instructions
on last page of this flowchart)
N
Verify wiring of breaker;
Neutral pigtail to neutral buss bar in panel
Both hot wires connected to breaker load
No neutral load on breaker (unless poolside
WQS is being used and neutral connects to
neutral terminal in Gecko heater/controller)
Does breaker continue to trip?
Y
Replace breaker
N
N
Y
Y
To Next Page
