Page 7
electrIcal requIrementS
IMPORTANT
: Fill the SWIMCROSS Exercise System with water before
turning on the power.
Your ENDLESS POOLS SWIMCROSS Exercise System has been
carefully designed to give you maximum safety against electrical shock.
Connecting the SWIMCROSS Exercise System to an improperly wired
circuit will negate many of the SWIMCROSS Exercise System’s safety
features. Improper wiring may also cause electrocution, risk of fire, and
other risks of injuries. Please read and follow the electrical installation
requirements and instructions completely!
220 - 240 VOLT PERMANENTLY
CONNECTED
ENDLESS POOLS SWIMCROSS Exercise Systems must be wired in
accordance with all applicable National and Local Electrical Codes. All
electrical work should be done by an experienced, licensed electrician.
We recommend the use of appropriate electrical conduit, fittings, and
wire for all circuits.

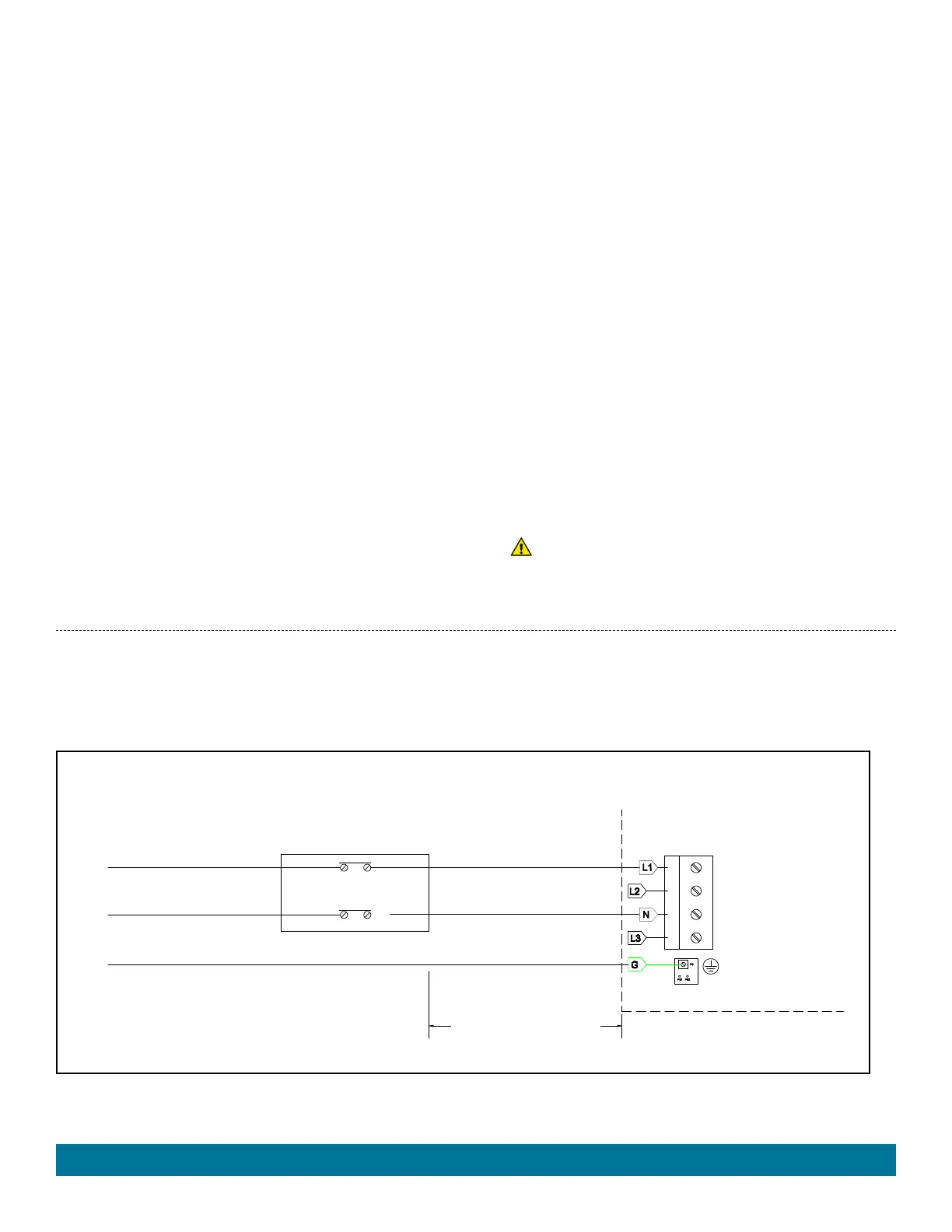

The diagram below illustrates how to wire the SWIMCROSS
Exercise System model:
• The SWIMCROSS Exercise System requires an electrical service
using a 40 amp breaker.
• The SWIMCROSS Exercise System can also run on a 24 Amp
electrical service however, you will NOT be able to run all three jet
pumps on high speed at the same time.
• One main disconnect switch with at least 3 mm separation
between contacts must be used for all electrical circuits.
• Mount the subpanel in the vicinity of the SWIMCROSS
Exercise System, but not closer than 1.5 m (5 feet)
away.
Your
SWIMCROSS Exercise System, must be supplied by a residual
current device (RCD) - with a tripping rating not exceeding 30 mA in
an electrical subpanel.
• Open SWIMCROSS Exercise System by removing the 4 screws
holding the vertical T-spacer located in the center of the equipment
compartment (back side of SWIMCROSS Exercise System). Slide
panel towards center and remove, repeat for other panel.
• Insert power wires into SWIMCROSS Exercise System from either
side towards the bottom, you will find a plastic cap attached to wall.
• Once your SWIMCROSS Exercise System has been filled with
water, turn it on and test all of the circuit breakers.
IMPORTANT: If breaker immediately trips, verify that the wires are
correctly connected. Breaker should be tested prior to each use. Here’s
how:
1. Push the “TEST” button on each breaker - residual current device
(RCD), and observe it click OFF.
2. Wait 30 seconds, then push the breaker switch to the OFF (down)
position (to ensure that it has completely disengaged), then push
the breaker switch to the ON (up) position. If you don't wait 30
seconds, the SWIMCROSS Exercise System’s power indicator
may continue to blink – try again.
If any of the RCD breakers fails to operate in this manner, your
SWIMCROSS Exercise System may have an electrical malfunction,
and you may be at risk of electrical shock. Turn off all circuits and do
not use the SWIMCROSS Exercise System until the problem has been
corrected by an authorized service agent.
WARNING: Removing, or bypassing any RCD breaker will result in
an unsafe SWIMCROSS Exercise System and will void the warranty.
IMPORTANT: If you ever need to move or relocate your ENDLESS POOLS SWIMCROSS Exercise System, it is essential that you understand and
apply these installation requirements. Your ENDLESS POOLS SWIMCROSS Exercise System has been carefully engineered to provide maximum
safety against electric shock. Remember, connecting the SWIMCROSS Exercise System to an improperly wired circuit will negate many of its safety
features.
NOTE: Long wiring runs may require larger-gauge wire than stated.
220-240 VAC 50Hz
32A SERVICE,
FACTORY SETTING
(24A SERVICE)
(FIELD ADJUSTABLE)
RCD BREAKER
40 AMP (30A)
INPUT
MORE THAN 152 cm
THE SUB-PANEL MUST BE
WITHIN SIGHT OF THE
EXERCISE SYSTEM
DO NOT EXCEED 1525 cm
GND
GECKO Ye-5 HEATER/CONTROLLER
L1, HOT, 10 mm² BROWN
NEUTRAL 10 mm² BLUE
GROUND, 10 mm² GRN/YLW
L1, HOT
10 mm²
IMPORTANT: Using a 24A service will require a system modification, see Electrical Configuration on page 14 on how to
change the system settings.
10 mm²
N, NEUTRAL
Electrical Requirements
