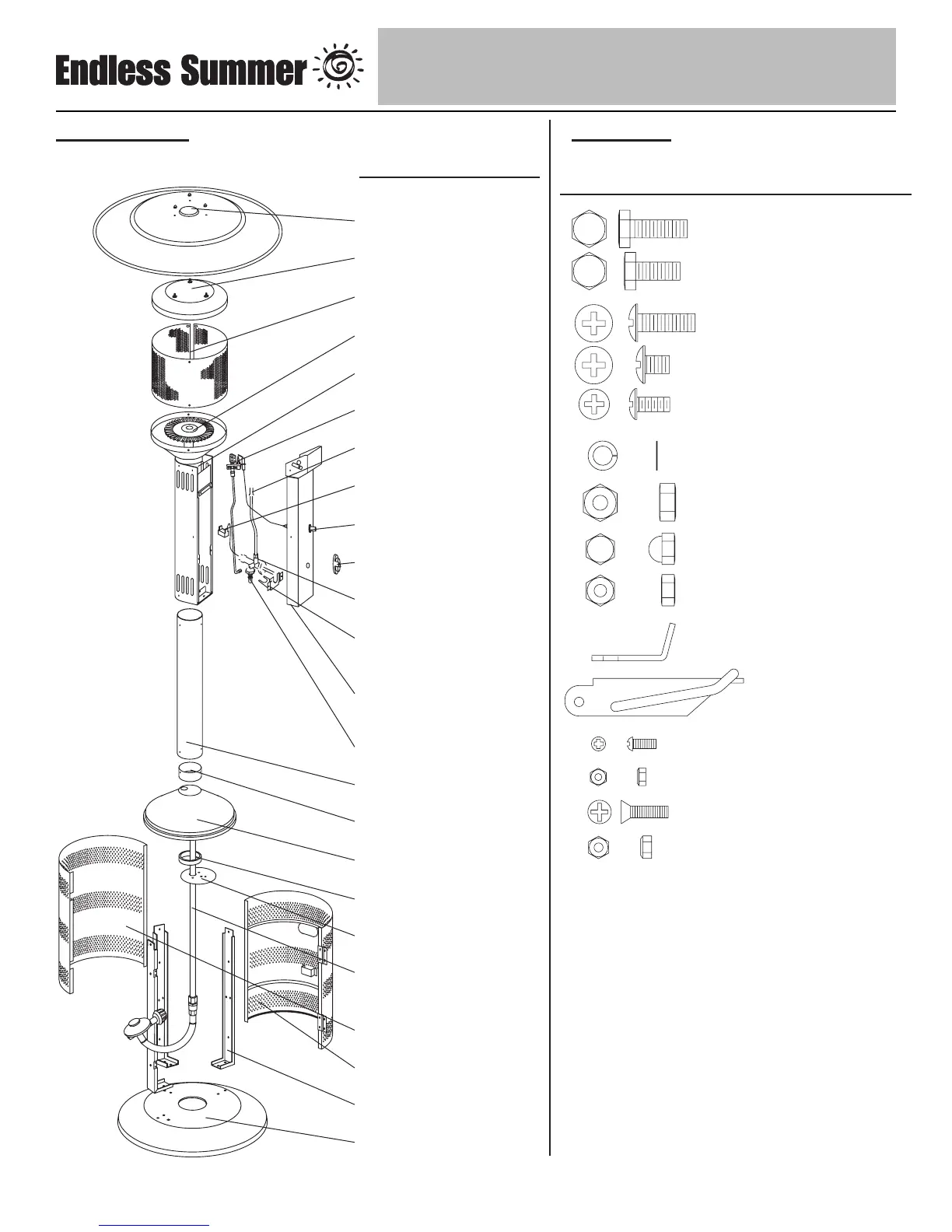

Components
Part Re-order
Name Number
Dome . . . . . . . . . .56-01-108
Top Dome Plate . . 56-01-116
Emitter . . . . . . . . . 56-01-118
Burner Assembly .56-01-124
Valve Housing . . .56-01-147
Pilot Assembly . . .56-01-127
Nozzle . . . . . . . . .56-01-125
Tilt Switch . . . . . .56-01-148
Ignitor . . . . . . . . .56-01-143
Knob . . . . . . . . . .56-01-156
Valve . . . . . . . . . .56-01-304
Valve Housing
Backboard . . . . . .56-01-144
Valve Housing
Cover . . . . . . . . . .56-01-141
Quick Connect . . .56-01-305
Pole . . . . . . . . . . .56-01-159
Cup . . . . . . . . . . .56-01-166
Cap . . . . . . . . . . .56-01-167
Ring . . . . . . . . . . .56-01-171
Cap Support . . . .56-01-172
Gas Line/Regulator
Assembly . . . . . . .56-01-192
Cylinder Shroud . .56-01-173
Cylinder Access . .56-01-177
Legs (3) . . . . . . . .56-01-193
Base . . . . . . . . . .56-01-197
Hardware
Used in
Picture Qty Description Step(s)
9 Large Bolt 1 & 3
56-01-200
3 Small Bolt 5
56-01-201
1 Extra Large Screw 11
56-01-202
17 Medium Screw 2, 4, 7 & 8
56-01-203
10 Small Screw 6
56-01-204
9 Lockwasher 1 & 5
56-01-206
9 Large Nut 1 & 5
56-01-209
3 Cap Nut 10
56-01-210
2 Small Nut 6
56-01-211
1 Clip 11
56-01-214
1 Latch 14
56-01-216
2 Latch Screw 14
56-01-217
2 Latch Nut 14
56-01-218
4 Hinge Screw 14
56-01-219
4 Hinge Nut 14
56-01-220
