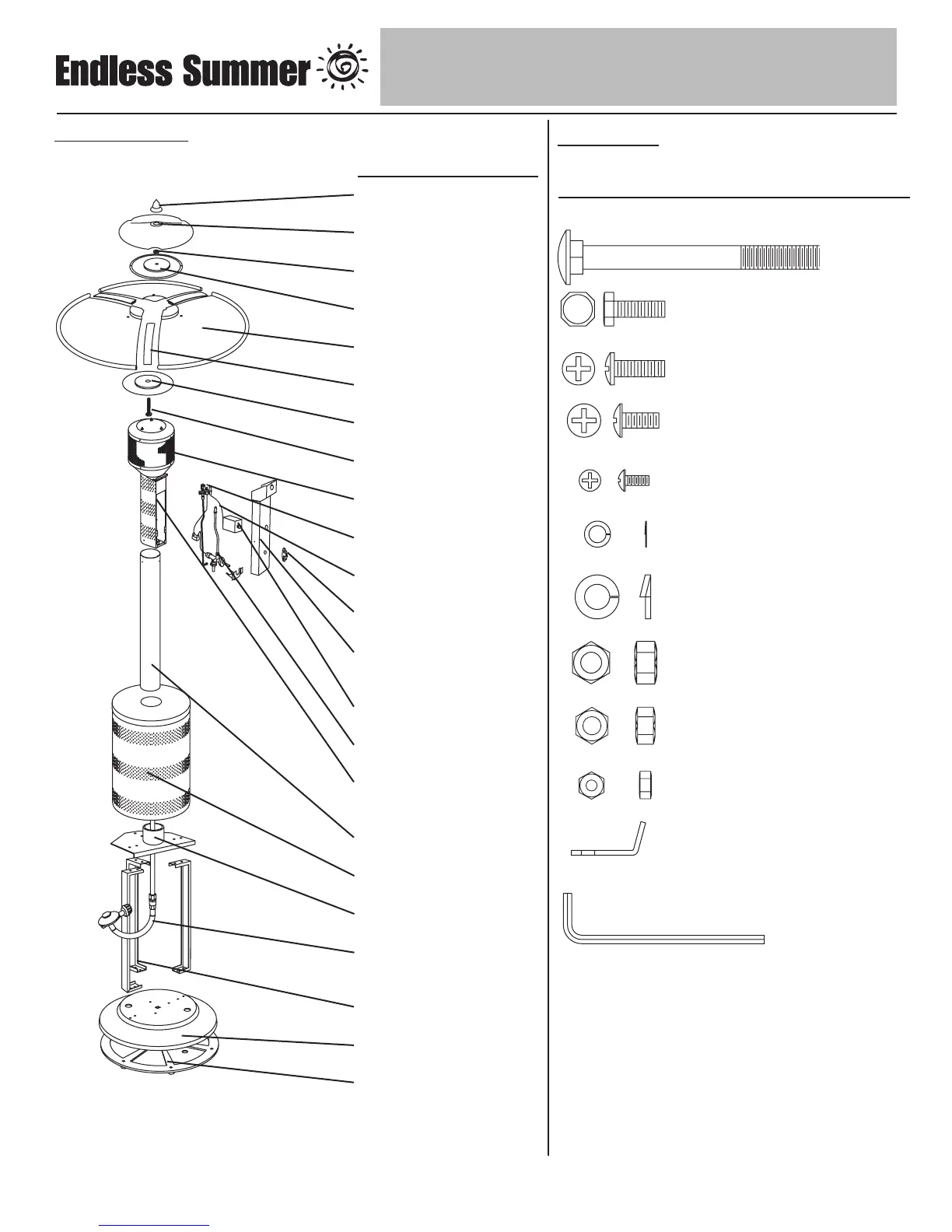

Components
Part Re-order
Name Number
Finial . . . . . . . . . 56-01-103
Dome Cap . . . . . 56-01-104
Dome Nut . . . . . 56-01-208
Dome Plate . . . . 56-01-105
Dome Panel (3) . 56-01-107
Dome Rib (3) . . . 56-01-109
Bottom Plate . . . 56-01-111
Dome Bolt . . . . . 56-01-212
Emitter . . . . . . . . 56-01-118
Pilot Assembly . . 56-01-127
Injector . . . . . . . . 56-01-125
Knob . . . . . . . . . 56-01-156
Access Panel
Assembly . . . . . . 56-01-140
Impulse Ignitor . . 56-01-142
Valve . . . . . . . . . 56-01-304
Valve Housing
Assembly . . . . . . 56-01-146
Pole . . . . . . . . . . 56-01-158
Shroud . . . . . . . . 56-01-164
Platform . . . . . . . 56-01-165
Gas Line/ Regulator
Assembly . . . . . . 56-01-188
Legs (3) . . . . . . . 56-01-193
Base . . . . . . . . . 56-01-329
Weight Plate . . . 56-01-198
Hardware
Used in
Picture Qty Description Step(s)
1 Carriage Bolt 3
3/8-16 x 3-3/4” Zinc Plated Bolt
56-01-199
12 Bolt 1 & 2
1/4-20 x 3/4” Nickel
Plated Hex Head Bolt
56-01-200
1 Large Screw 2
1/4-20 x 1” Nickle Plated
Philips Head Screw
56-01-202
4 Small Screw 5
1/4-20 x 3/8”Stainless Steel
Philips Truss Head Screw
56-01-2327
3 Dome Screw 8
5/32-32 x 1/4” Stainless Steel
Round Head Screw
56-01-205
12 Small Lockwasher 1 & 2
M6 Nickel plated Lockwasher
56-01-328
1 Large Lockwasher 3
M10 Nickel Plated
56-01-207
1 Large Nut 3
3/8-16 Nickel Plated Hex Nut
56-01-330
1 Medium Nut 8
3/8-16 Stainless Steel Hex Nut
56-01-208
15 Small Nut 1, 2 & 9
1/4-20 Nickel Plated Hex Nut
56-01-209
1 Gas Line Clip 2
56-01-213
1 Allen Wrench 6
56-01-215
