Endless Summer Kingston - Parts List and Assembly Hardware; Expanded View of Components; Hardware and Tools Required

5

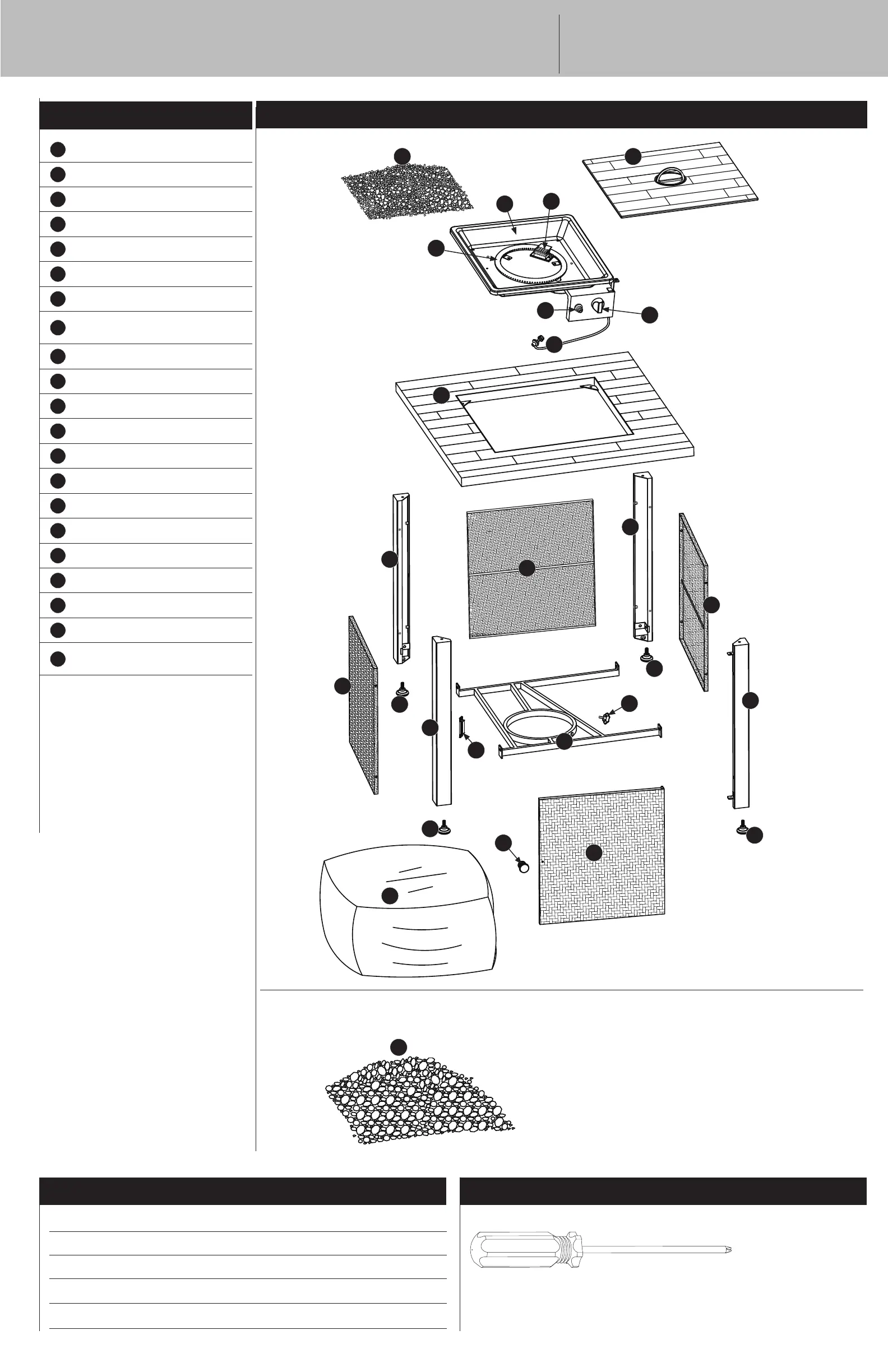

Expanded View
Need help? 1.888.398.8643
Do not return to place of purchase.
Replacement Parts
1.888.398.8643
5
Tools Required for Assembly (Not Included)
#2 Phillips Head Screwdriver 1 pc
Hardware
A
Screw
M5x12 Black Nickel Plated Truss Head
4 pcs
B
Screw
M5x25 Black Nickel Plated Truss Head
12 pcs
C
Screw
M6X12 Black Nickel Plated Truss Head
4 pcs
D
Screw
M6X12 Black Nickel Plated Step Head
1 pc
E
AA Battery 1 pc
10
10
10
Parts List
1
Black Fire Glass
58-23-754
2
Table Insert
58-23-854
3
Bowl Assembly*
58-23-895
4
Igniter Cover*
58-23-896
5
Burner*
58-23-138
6
Control Knob*
58-23-139
7
Battery Cap
58-23-897
8
Regulator/Hose
Assembly*
58-23-922
9
Hearth
58-23-855
10
Side Panel (3)
58-23-856
11
Leg A (2)
58-23-857
12
Leg B
58-23-858
13
Magnet*
58-23-145
14
Leg C
58-23-859
15
Foot (4)*
58-23-147
16
Bottom Frame
58-23-148
17
LP Gas Tank Retainer Bolt
58-23-149
18
Door
58-23-860
19
Door Handle*
58-23-861
20
Cover
55-24-366
21
Lava Rock (not required and sold
separately)**
* Pre-assembled
W **CAUTION: Use only Mr. Bar-B-Q
Products LLC factory-authorized
fire glass/lava rock. The use of
any fire glass/lava rock that is
not factory-authorized can be
dangerous and will void your
warranty.
18
17
12
3
9
2
8
6
14
11
11
4
19
16
Sold Separately
20
15
15
13
5
7
1
15
15
21
