4.1.2 Installation site
For version with pump
1 2
3
4
A0024411

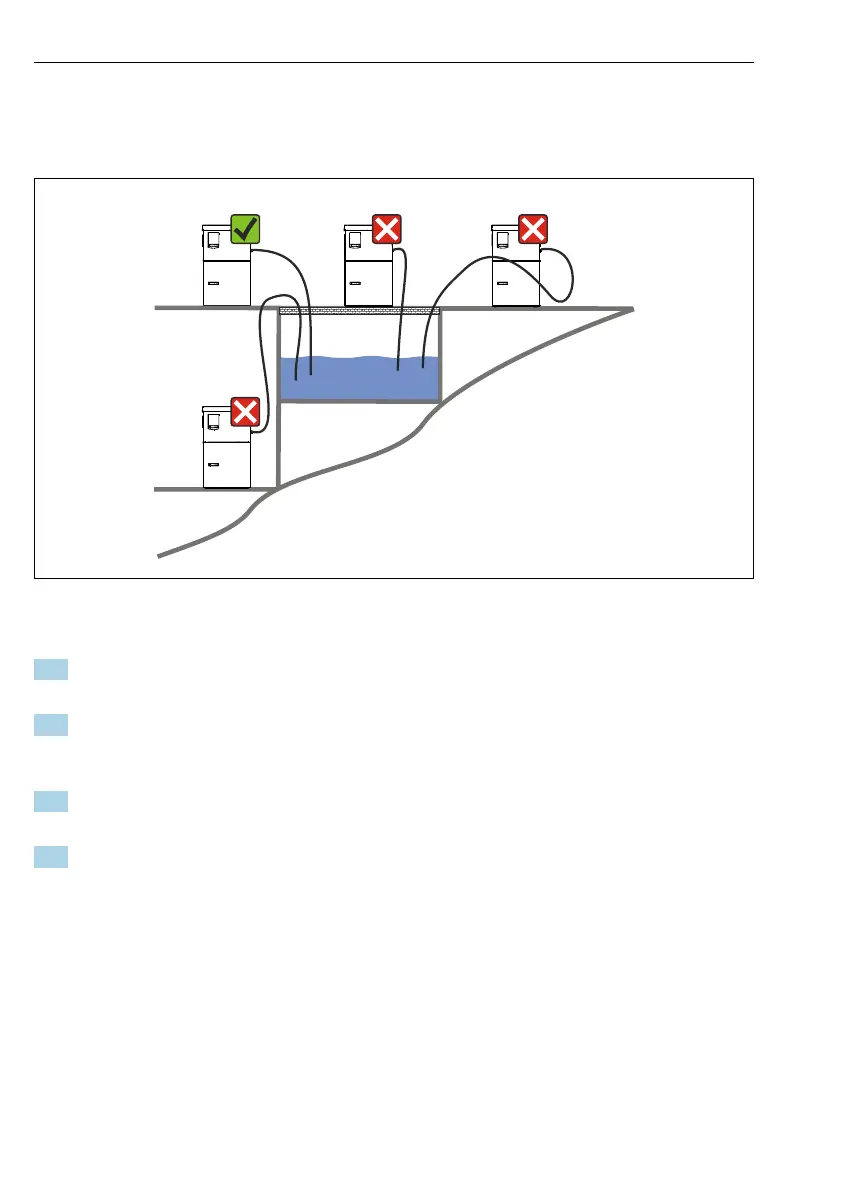

 3 Liquistation mounting conditions
1. Correct
 The suction line must be routed with a downward slope to the sampling point.
2. Incorrect
 The sampler should never be mounted in a place where it is exposed to aggressive
gases.
3. Incorrect
 Avoid siphoning effects in the suction line.
4. Incorrect
 The suction pipe should never be routed with an upward gradient to the sampling
point.
Note the following when erecting the device:
• Erect the device on a level surface.
• Securely connect the device at the fastening points to the surface underneath.
• Protect the device against additional heating (e.g. heater or direct sunlight in the case of PS
housing).
• Protect the device against mechanical vibrations.
