Endress+Hauser Soliphant M FTM51 - Installation and Setup; Mounting Notes and Fork Length Selection

16 Endress+Hauser

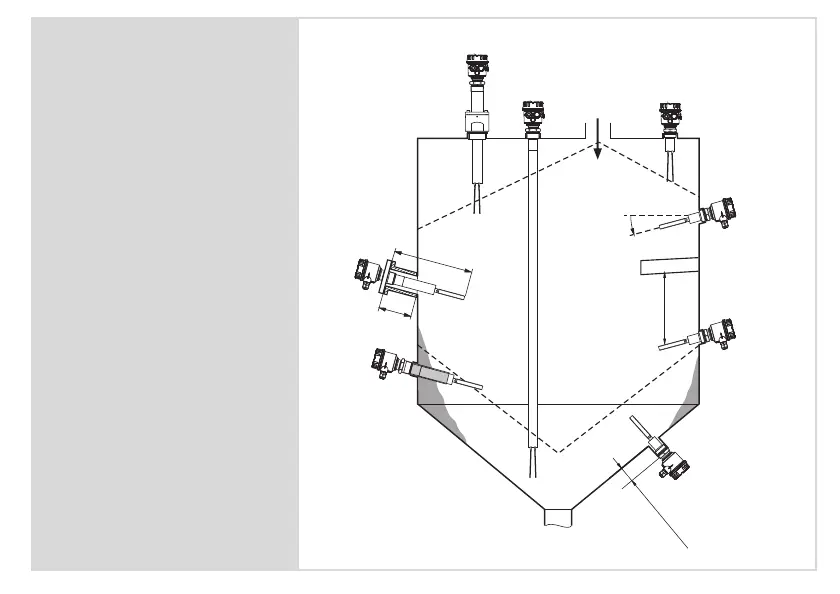

de - Einbauhinweise
en - Mounting Notes
fr - Conseils pour le montage
es - Recomendaciones de montaje
it - Note al montaggio
nl - Inbouwtips
*
Schutzdach / protective roof /
toit de protection / tejado protector /
tettuccio protettivo / beschermkap
**
Stutzenlänge / nozzle length /
longueur du piquage /
longitud de la tubuladura /
lunghezza tronchetto / tubelure lengte
L
Sensorlänge/sensor length/Longueur
du sensor/longitud de la sensores/
lunghezza sensori/sensors lengte
L = 200 mm (7.87 in)
Standardgabel / standard fork /
fourche standard / horquilla estándar /
forcella standard / standaardvork
L = 145 mm (5.71 in)
Kurzgabel / short fork /
fourche courte / horquilla corta /
forcella corta / korte vork
**
L
max. 60 mm
(max
. 2.36 in)
FTM51
FTM51
FTM51
FTM51
~200 mm
(~7.87 in)
~20°
FTM50
FTM50
FTM50
FTM50
*
