EQ-99 Manager User’s Manual · Page 7
Installing the Shutter
The shutter comes assembled and ready for mounting onto the Lamp House. To
attach the shutter, follow these steps:

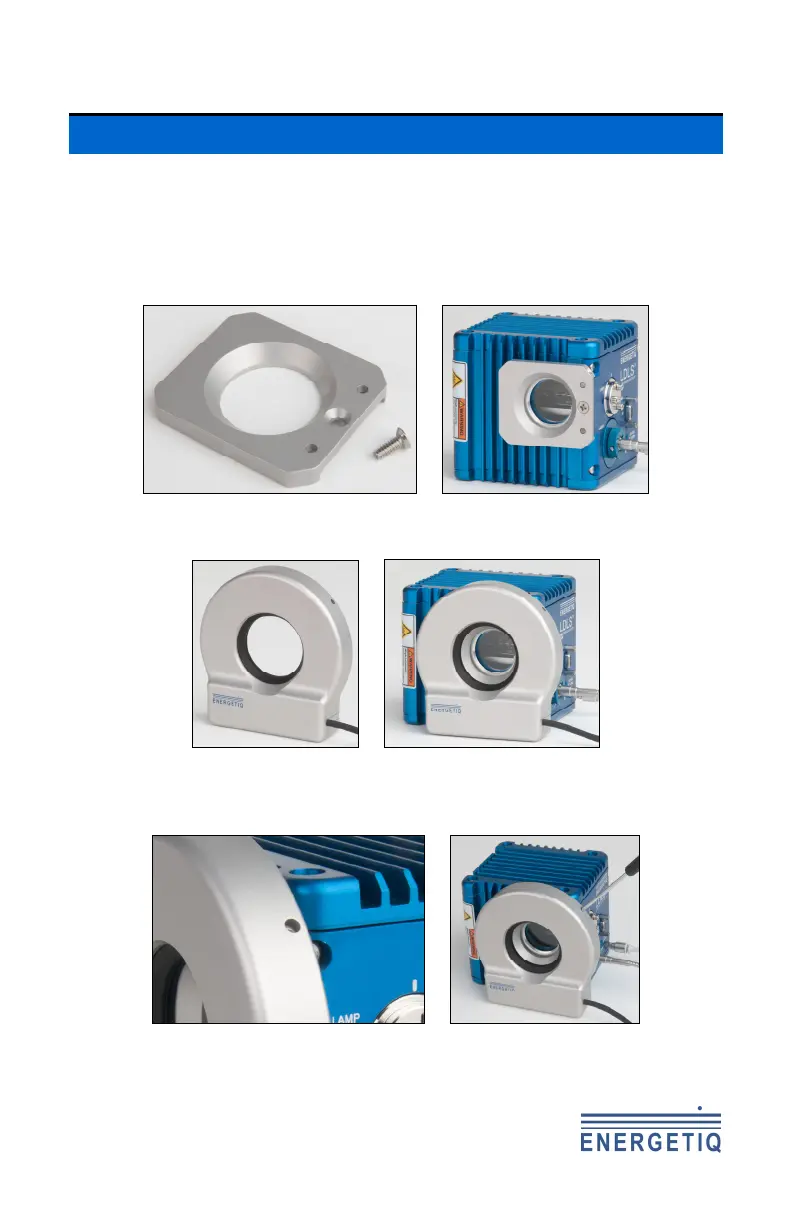

1. Mount the adapter plate onto the Lamp House and use the supplied 4-
40 flat head screw to secure it:
2. Next mount the shutter housing onto the adapter plate:
3. Finally, secure the shutter to the adapter plate by tightening the
retaining screw:
4. Plug the cable into the EQ-99 Manager. The shutter is now ready for
use.
