23
7.3 CHANGING THE OIL
Warning!
Used motor oil can cause skin irritations if left in long-terM
contact with skin. Thoroughly wash off used oil as soon as
possible with soap and water.
Do not dispose of used oil in drains or on soil. Local service
shops provide environmentally-friendly disposal methods.
Place the generator on a level surface. Drain the oil while the engine is still warm.

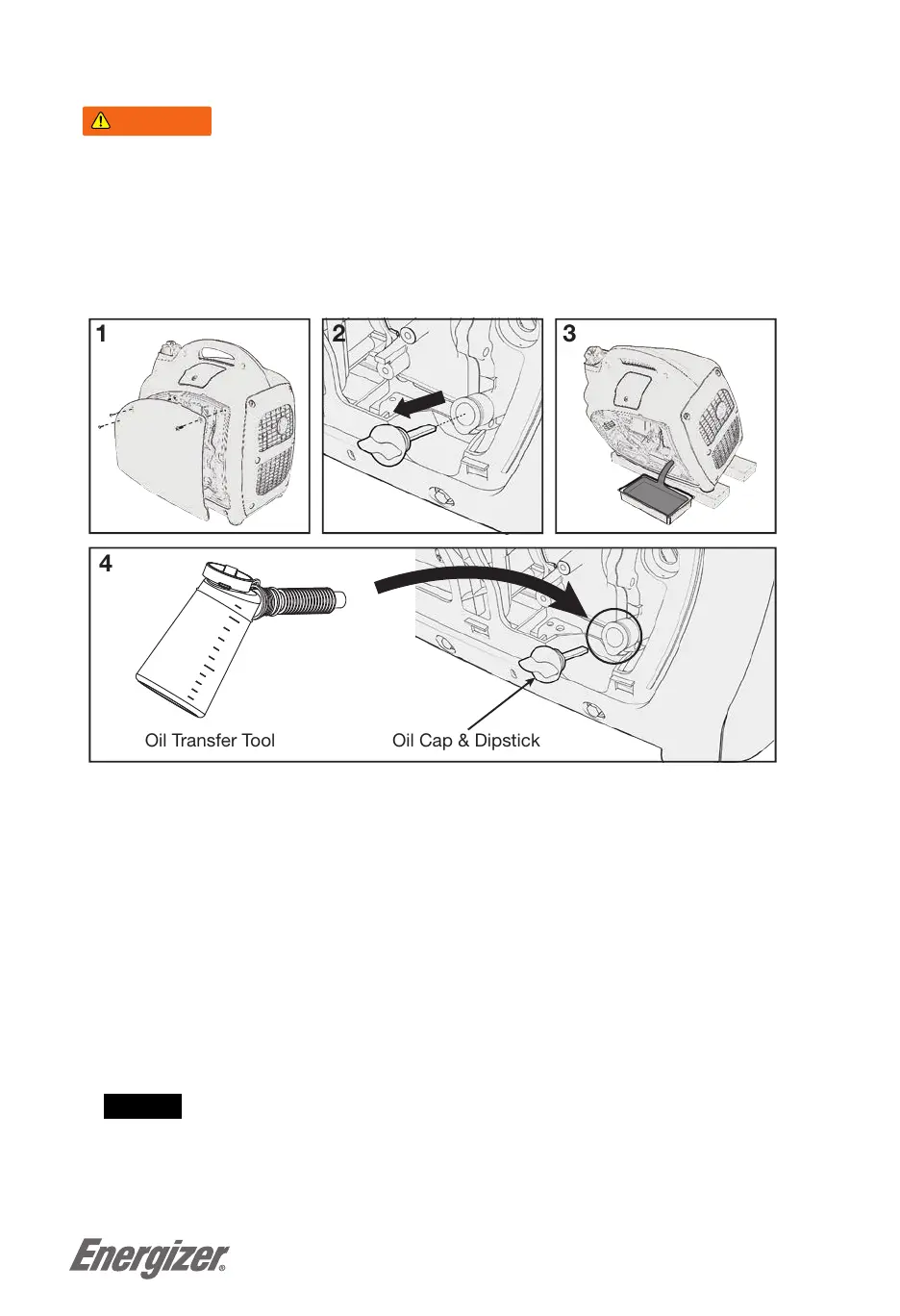

1. Loosen three screws and remove the engine access panel. Start at the tab
and work around the panel. This may require some force to loosen the
snapts.
2. Unscrew the oil cap and clean the dipstick.
3. Add 12 . Oz / 0.35 L Gal of fresh engine oil then reinsert the oil cap without
threading it in. Remove the cap and examine the oil level on the dipstick.
4. Add additional oil up to the maximum mark. DO NOT OVERFILL.
5. Reinsert the oil cap and tighten securely. Replace the engine access panel
and screws.
NOTE
SAE10W-30 or Synthetic 5W-30 is recommended for general use.
Oil capacity: 12 . oz / 0.35 L
Oil Transfer Tool Oil Cap & Dipstick
