4
PRESENTATION & USE
INTRODUCTION
The Lifetech
®
Modular range of chargers enable
batteries to be recharged from the mains supply.
The microprocessor control automatically recognizes the
battery’s voltage, capacity, state of charge, etc.,
providing optimum battery control from highly efcient
analyses of its condition.
1ph 3ph
12Volt
24Volt 24/36/48V
36/48V 72/80 V
Several charging proles are available depending on the
users conguration.
Vented Lead Acid batteries: Standard/WaterLess
®
, Heavy Duty
& Electrolyte circulation
Valve Regulated Lead Acid batteries: AGM, Gel & XFC
TM
bloc
Desulphation, Equalizing and Refreshing charges are also
integrated.

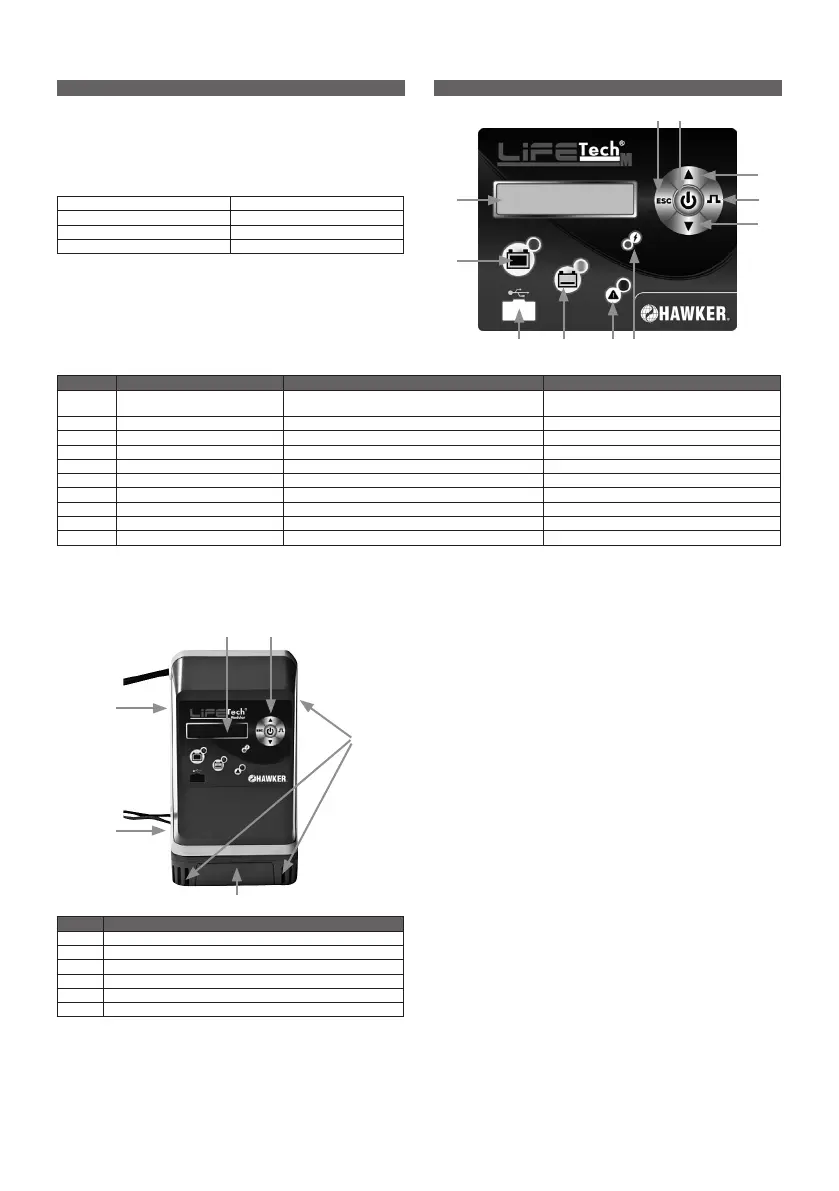

FRONT PANEL
Ref Button/LED Function Function
1 Start/Stop button Start/Stop charge
Cancel active menu value (press 3s)
Select of active menu
2 Greed LED Battery available
3 Yellow LED Battery in charge
4 Red LED Fault
5 Blue LED AC supply ON (light) AC supply OFF (AC missing)
6 Arrows Navigation buttons Return to top of list (press for 2 sec)
7 Equalization button Start an equalization Access a sub menu
8 Esc Access a sub menu Close windows
9 LCD panel Shows details (refer to LCD display par.)
10 USB port Download memories Upload rmware
8
10 43 5
1
7
6
6
9
2
Single phase stand alone 1kW
Ref Function
1 Ac input cable
2 DC output cable
3 Cable holder
4 Ventilation openings
5 LCD panel
6 Navigation buttons
1
2
5 6
4
3
