ENGINDOT GPW3400 - Assembly Instructions: Wheels and Frame; Wheel and Frame Assembly

11
4. A SSEMBLY I NSTRUCTION

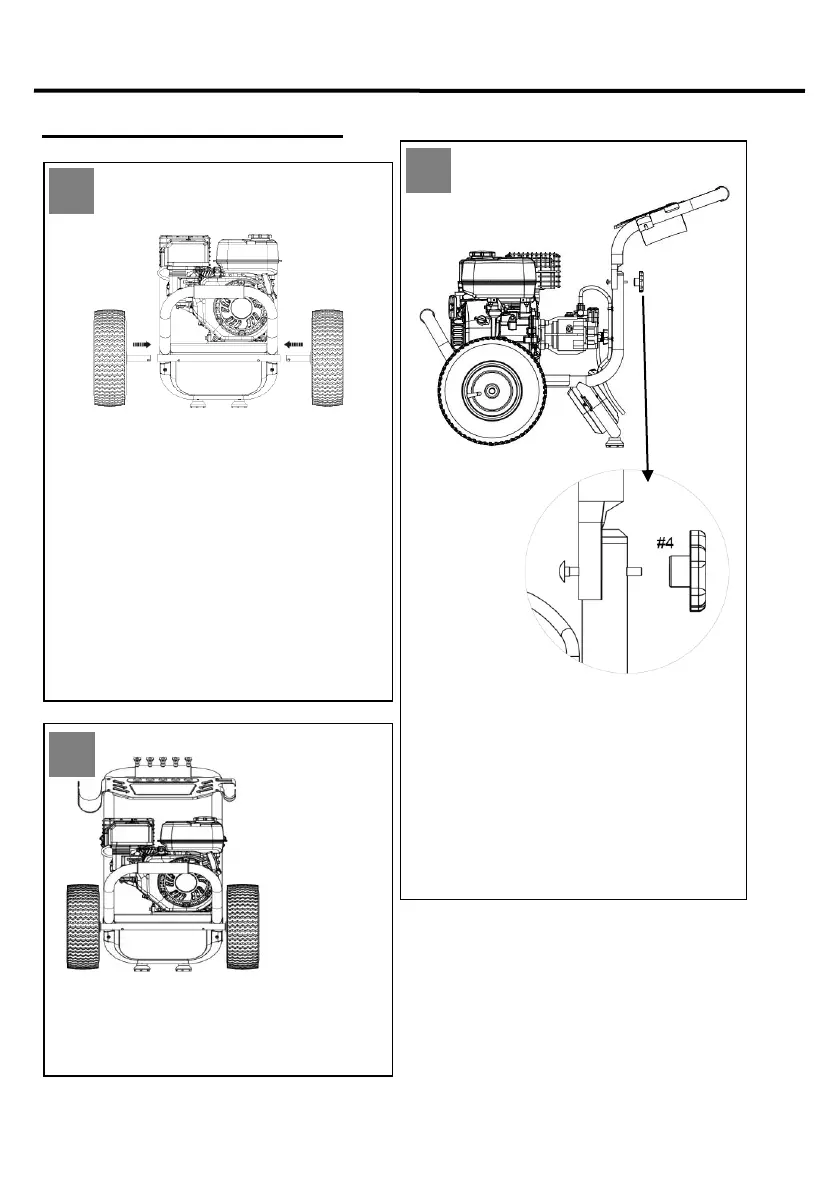

Frame Assembly
Position handle assembly and main
frame and connect them with
square neck bolt, then fasten with
the knob. Repeat this procedure for
the opposite side.
Inset the 5 nozzles into the nozzle
pad on the upper frame.
Wheel Assembly
NOTE: Make sure that there is
enough air in wheel before
assembly.
Install the wheels to the frame by first
pressing its spring loaded pin on wheel
axle, then insert wheel shaft into frame
and align spring loaded pin with hole in
frame until the pin snaps.
1
2
3
