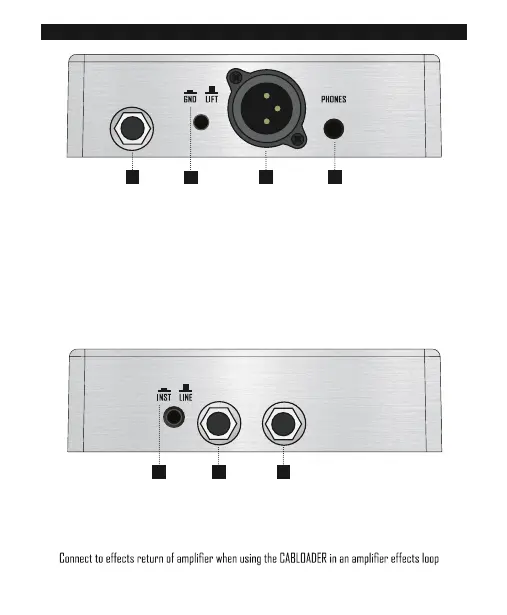

PEDAL LAYOUT
13. PHONES
Dedicated headphone output
14. GROUND LIFT
Use to eliminate ground loop noise when connected to the XLR OUTPUT
15. XLR OUTPUT
Connect to this output using a balanced XLR cable
16. UNBALANCED OUTPUT
Connect to this output using a standard 1/4” jack cable
17. INPUT
Connect instrument, pedals or other equipment using a standard 1/4” jack cable
18. THRU
19. INPUT LEVEL SELECTOR
Select between instrument level and line level .
16
19 17 18
14
15 13
