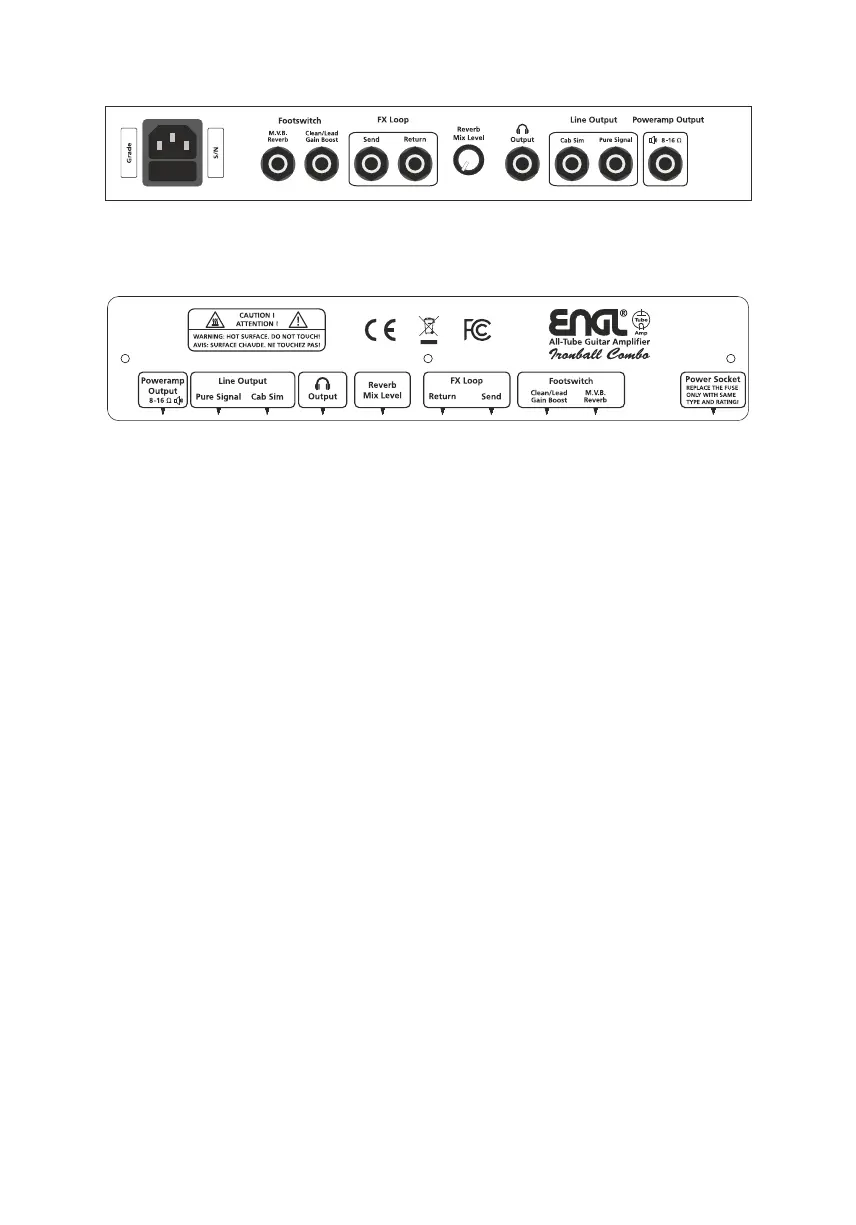

Figure: Back panel E606 head
Figure: Back panel E600 combo
Main Supply Connector / Power Socket (AC Power Inlet, IEC – C14 connector)
Plug the mains cord in here.
CAUTION! Make sure you use an intact mains line cord with a grounded plug! Before you power the amp up,
ensure the voltage value (e.g. printed on the Type Label or alongside the mains port) is the same as the
current of the local power supply or wall outlet. Please also heed the guidelines set forth in the separately
included pamphlet, Instructions for the Prevention of Fire, Electrical Shock and Injury.
Mains Fuse Box
The rear chamber contains the mains fuse and the front chamber a spare fuse.
NOTE: Ensure replacement fuses bear identical ratings (refer to the technical data)!
CAUTION! Always make sure replacement fuses are of the same type and have the same ratings as the
original fuse! To this end, please refer to the fuse ratings shown on the type panel.
Footswitch:
Master Volume Boost (M.V.B.)/Reverb (conventional 6.3mm / ¼“ TRS). Use this jack to connect a
conventional footswitch with two switching functions, i.e. the ENGL Z4 (2 x off/on – Single Pole Single Throw
or SPST for short).
Tip: switching the Master Volume Boost on and off.
Ring: switching the Reverb on and off.
Default (no footswitch connected): Master Volume Boost is on, Reverb is on.
Clean/Lead and Gain Boost (conventional 6.3mm / ¼“ TRS). Use this jack to connect a conventional
footswitch with two switching functions, i.e. the ENGL Z4 (2 x off/on – Single Pole Single Throw or SPST for
short).
Tip: switching between the Clean and the Lead channel.
Ring: switching the Gain Boost on and off.
Default (no footswitch connected): Clean Channel is acitvated, Gain Boost is deactivated.
