Assemble vehicle
8

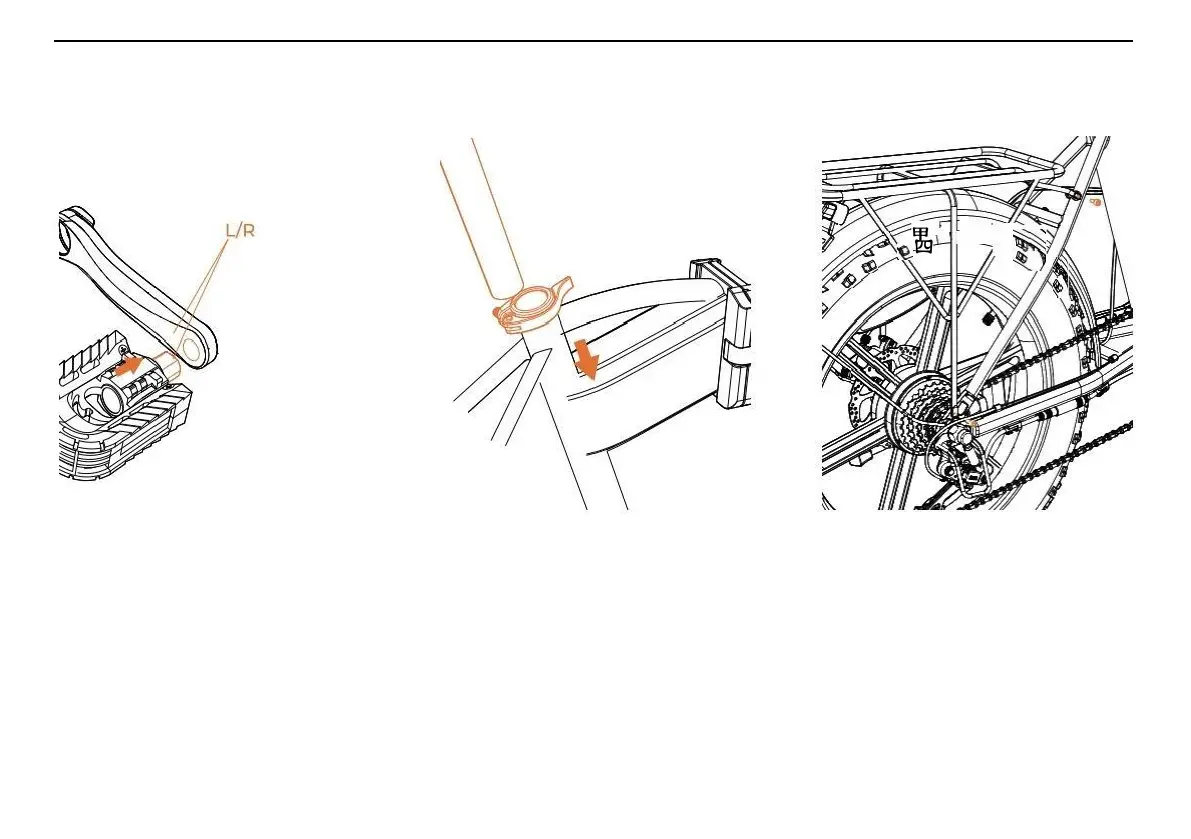

Step 7:
First,distinguish the installation position
of the left/right pedal according to the
markedposition in the picture,usethe
designated tools to tighten and fix the
left/right pedal in the corresponding
position,and checkthe stability of the
connection between thepedal and the
frame.
Step 8:
Open the seat post clamp handle,insert
the seat post into the seattube,adjust it
to the appropriate saddle height,close
the seat post clamp handle,and secure
the seat post.
p 四
海
Step 9:
Tighten the screws shown in the
diagram (four in total,two on each side)
using the specifiedtool,and check the
stability of the connection between the
rear rack and the frame.
