IQ8 Commercial Microinverter grid-tied PV system
55 © 2023 Enphase Energy Inc. All rights reserved. November 2023
USG-00026-1.0

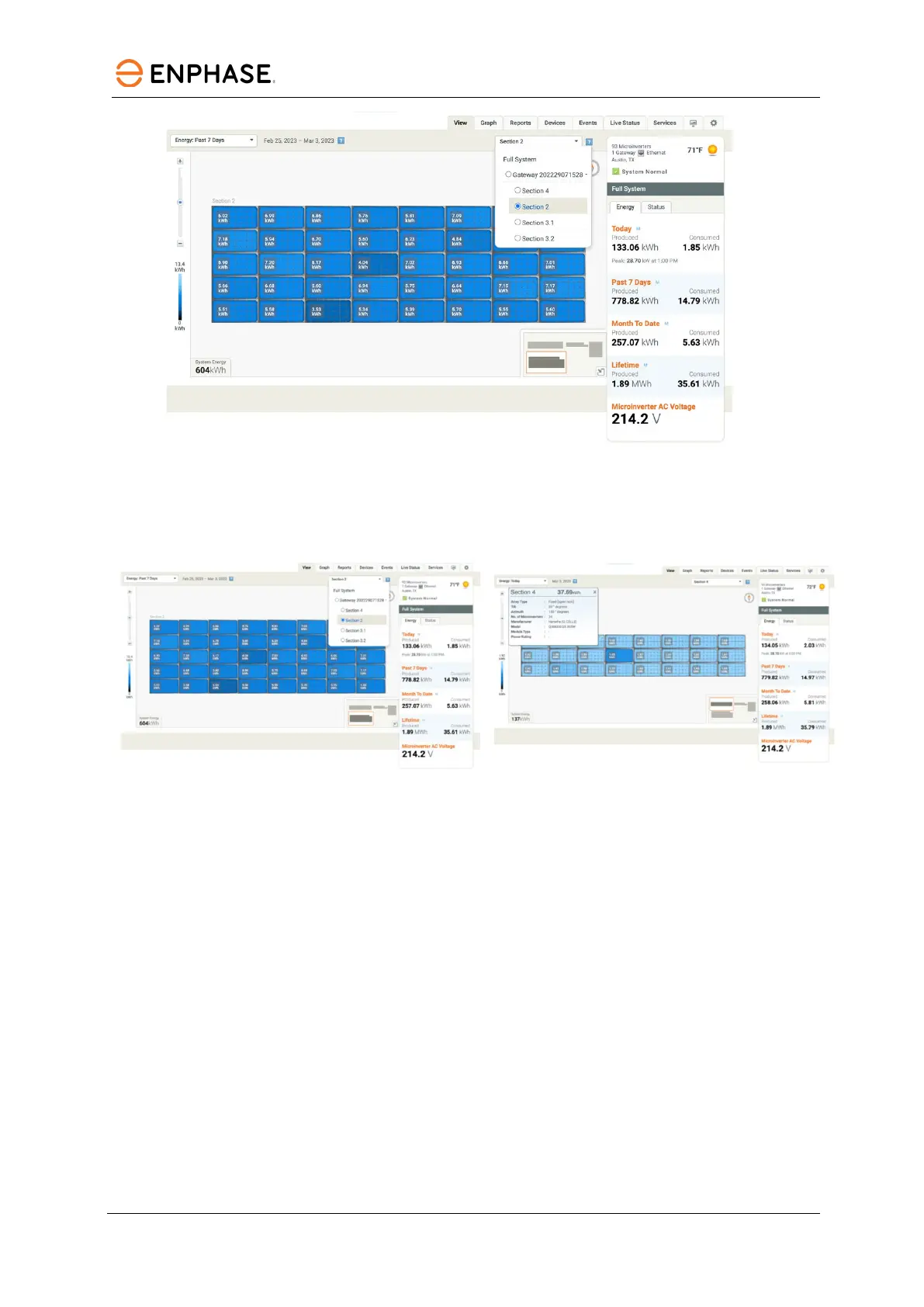

Figure 33: Array-level phase connection details
B. Enphase Installer Portal provides a view of two modules per micro-level production and power
data in landscape/portrait/landscape-portrait mode of array view. You can filter
microinverters based on gateway and subarrays.
Figure 34: Microinverter array view
C. Enphase Installer Portal provides a view of PV module details: manufacturer, model, module
type, and power rating of each microinverter when you click on a module in the array view.
You can also see the signal strength for each microinverter in 5 bars.
