Enterasys A4H124-24 - STK-RPS-150 PS Installation in an STK-RPS-150 CH2 Shelf; STK-RPS-150 PS Installation in an STK-RPS-150 CH8 Shelf

Installing and Connecting a Redundant Power System
2-12 Installation

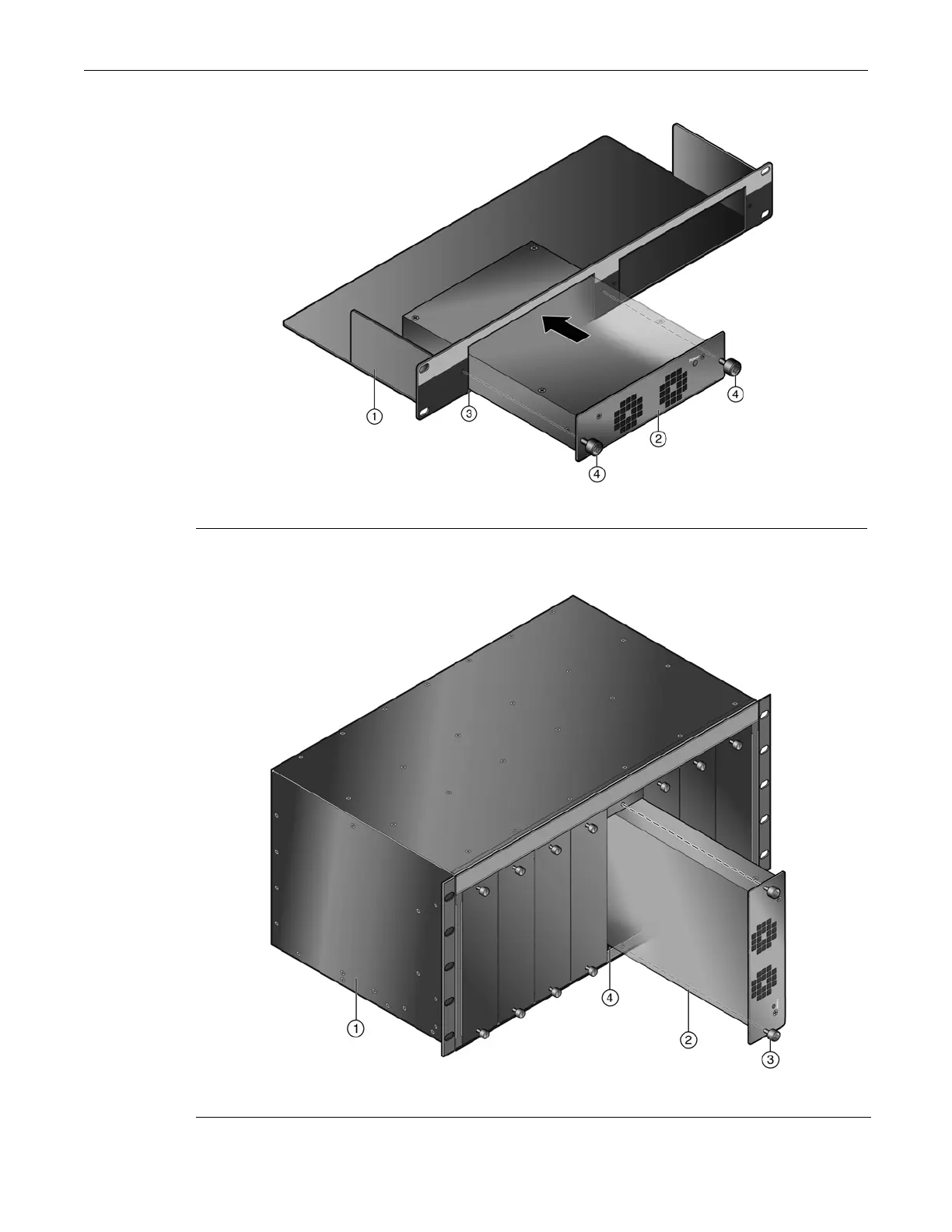

Figure 2-5 STK-RPS-150PS Installation in an STK-RPS-150CH2 Shelf
Figure 2-6 STK-RPS-150PS Installation in an STK-RPS-150CH8 Shelf
1 STK-RPS-150CH2 shelf 3 Shelf power supply slot
2 STK-RPS-150PS power supply 4 Captive screws (2)
1 STK-RPS-150CH8 shelf 3 Captive screws (2)
2 STK-RPS-150PS power supply 4 Chassis power supply slot
