Entrya D22S - Electrical Wiring Diagrams; Facila BUS System Wiring; Analogue Camera Connection; Wiring for Two Door Stations

9
Ω
BUS(DS) BUS(IM) BUS BUSBUS BUS
BUS
CV-AP- CV+AP+
CCTV
GNDCOM
C
GND
CCTV
Ω
BUS(DS) BUS(IM) BUSBUS BUS
2x 0.75mm² 60m
Facila BUS
2x 0.75mm² 60m
2x 0.75mm² 30m
SVV
2x 0.75mm² 30m
All texts and images in this manual are protected by copyright and intellectual property
of ENTRYA TECHNOLOGIES BVBA.

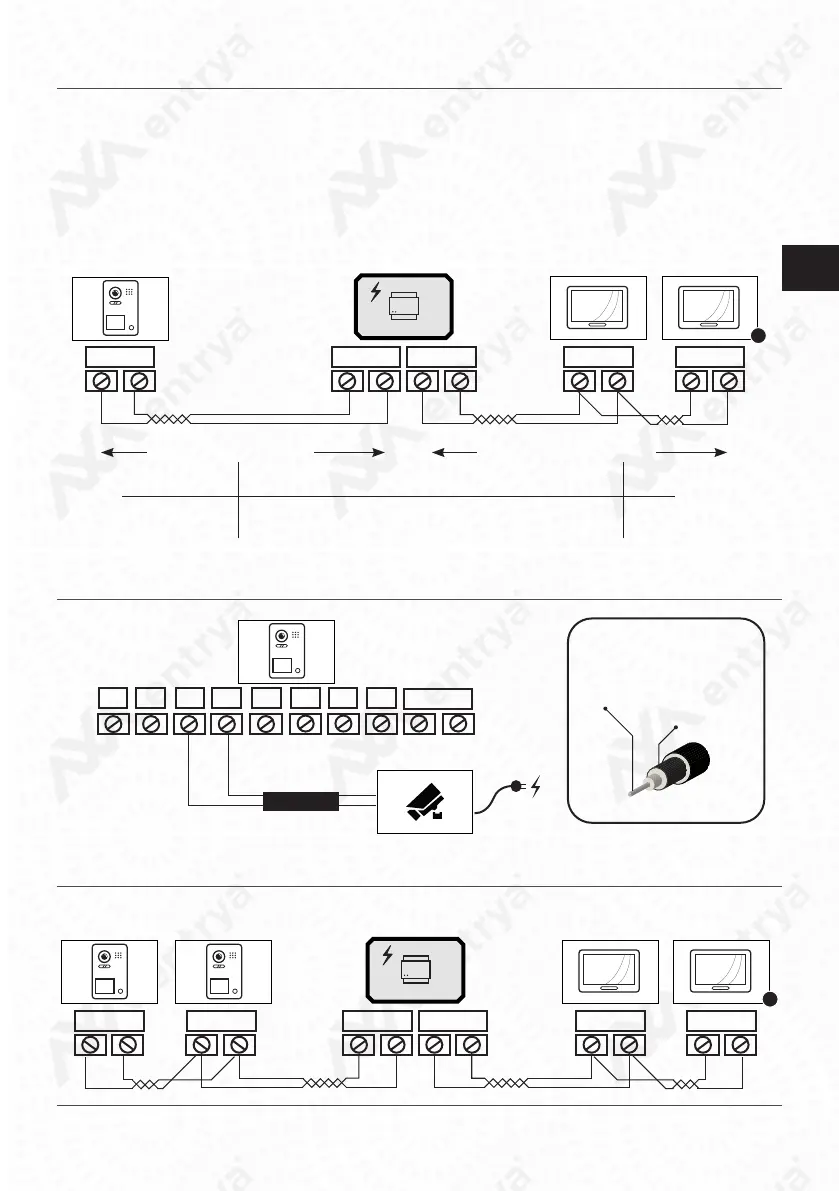

Electrical installation of two door stations
Electrical installation of an analogue camera
COAX-cable
Address 1 Address 2
COAX-cable
Electrical Installation
Attention!
The maximum length of the wiring is limited. The use of cables other than those specied
may aect the maximum length of the wiring or cause malfunctions. It is not allowed to
place cable with parallel wires (not twisted) over long distances next to other cables. This
can cause disturbances in the picture and sound. Always use Facila BUS cable with twisted
pairs without shielding.
Attention!
Switch on terminating resistor / impedance switch on accessories or indoor stations with
symbol Ω.
