Wall Mounting

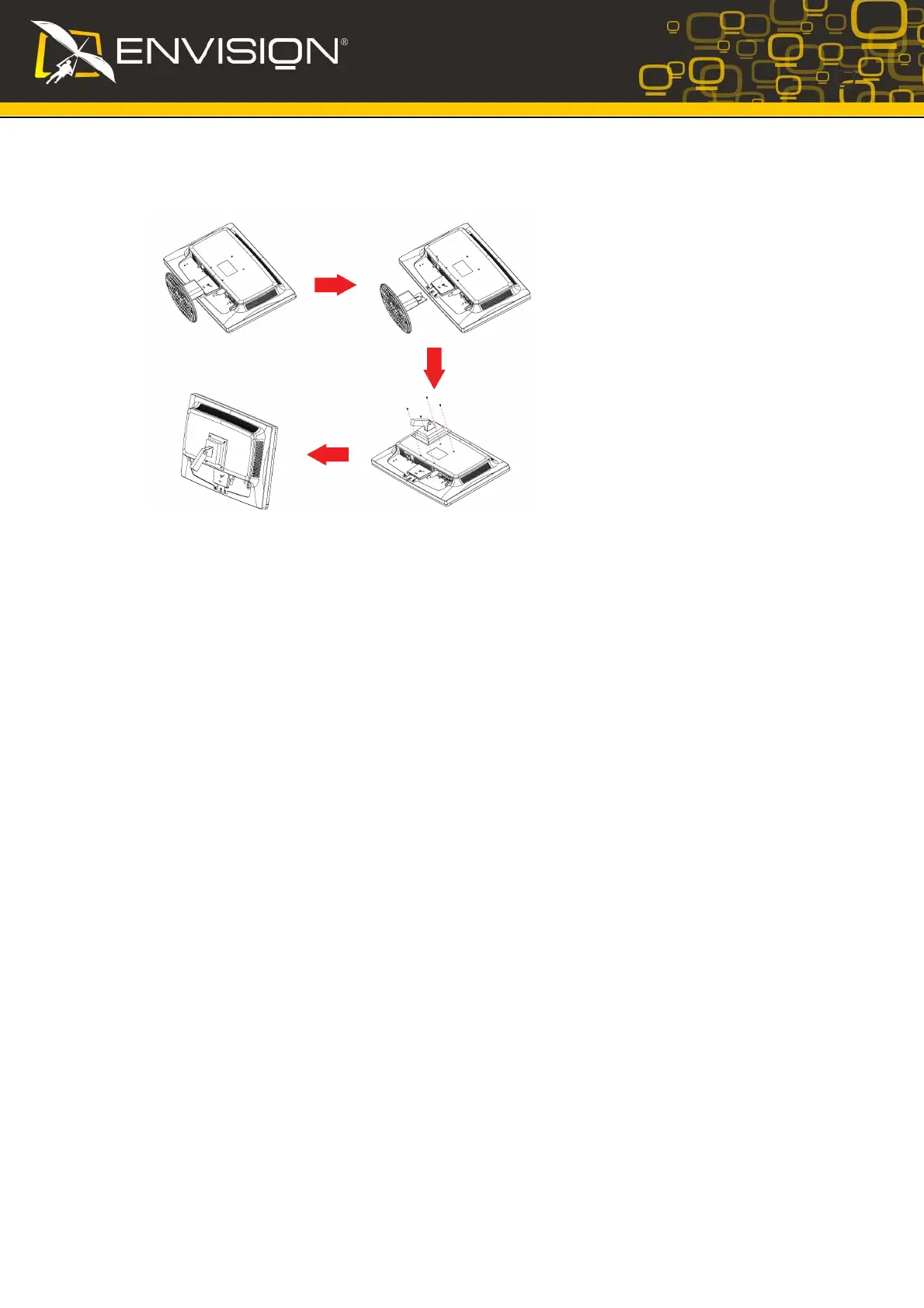

Preparing to Install an Optional Wall Mounting Arm
This monitor can be attached to a wall mounting arm which can be purchased separately. Disconnect
power before this procedure. Follow these steps:
1. Remove the stand & base.
2. Follow the manufacturer's instructions to assemble the wall mounting arm.
3. Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the
holes in the back of the monitor.
4. Insert the 4 screws into the holes and tighten.
5. Reconnect the cables. Refer to the user's manual that came with the optional wall mounting
arm for instructions on attaching it to the wall.
Noted: VESA mounting screw holes are not available for all models, please check with the dealer or
official department of ENVISION.
6
